2022 Kawasaki MULE 4010 TRANS 4x4 Camo Engine Mount OEM Parts Diagram

Submodel KAT620CNFNN Mule 4010 Trans4x4 (2022)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

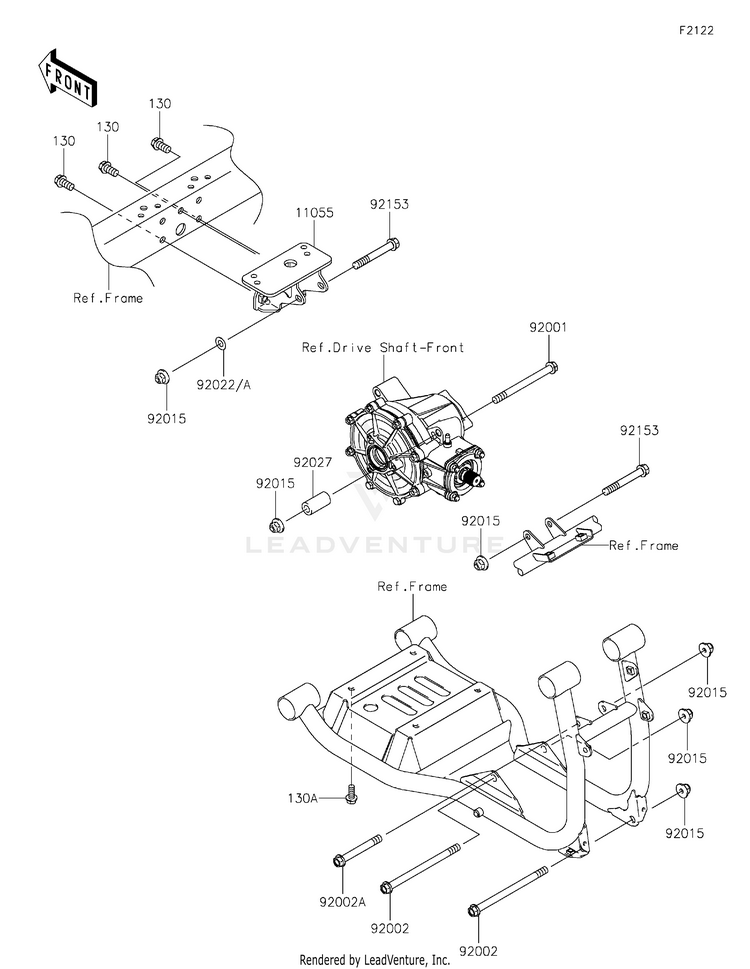

Engine Mount

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105511055-1469BRACKET,FRONT GEAR CASE
Usually ships in 7-10 business days
130130BA1020BOLT-FLANGED,10X20
5 In-Stock
130A130CA0820BOLT-FLANGED,8X20
10+ In-Stock
9200192001-1603BOLT,FLANGED,10X115
1 In-Stock
9200292002-1348BOLT,10X145
1 In-Stock
92002A92002-1764BOLT,FLANGED,10X80
Usually ships in 7-10 business days
9201592015-1597NUT,LOCK,10MM
10+ In-Stock
9202292022-1649WASHER,10.2X20X0.5
10+ In-Stock
92022A92022-239WASHER,10.5X20X1
10+ In-Stock
9202792027-1518COLLAR,11X20X39
Usually ships in 7-10 business days
9215392153-1384BOLT,FLANGED,10X75
6 In-Stock
