2022 Kawasaki MULE Pro-DXT EPS Diesel 1000 Front Box OEM Parts Diagram

Submodel KDT1000BNFNN Mule PRO-DXT (2022)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Box

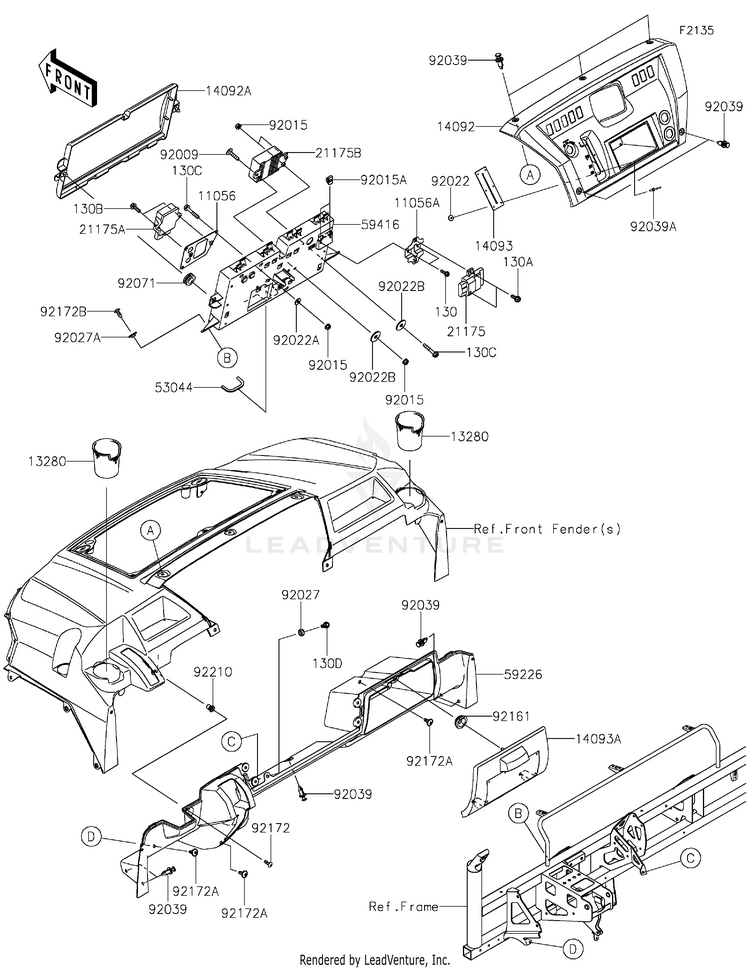

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-7476BRACKET,SOLENOID
Usually ships in 7-10 business days
11056A11056-7477BRACKET,CONTROLLER
Usually ships in 7-10 business days
130130BA0516BOLT-FLANGED,5X16
10+ In-Stock
130A130BA0616BOLT-FLANGED,6X16
7 In-Stock
130B130BA0618BOLT-FLANGED,6X18
8 In-Stock
130C130BA0635BOLT-FLANGED,6X35
3 In-Stock
130D130CA0616BOLT-FLANGED,6X16
Usually ships in 7-10 business days
1328013280-0774HOLDER,CUP
Usually ships in 7-10 business days
1409214092-1192COVER,DASHBOARD
Usually ships in 7-10 business days
14092A14092-1197COVER,ELECTRIC BOX
Usually ships in 7-10 business days
1409314093-0146COVER,SHIFT LEVER
Usually ships in 7-10 business days
14093A14093-1061COVER,GLOVE BOX
Usually ships in 7-10 business days
2117521175-1105ECU,VEHICLE CONTROLLER(DRIVE)
Usually ships in 7-10 business days
21175A21175-1113ECU,AIR PRESSURE SENSOR(FUEL)
Usually ships in 7-10 business days
21175B21175-1185ECU,ELECTRIC POWER STEERING
Usually ships in 7-10 business days
5304453044-0572TRIM
Usually ships in 7-10 business days
5922659226-0042PANEL-CONTROL
Usually ships in 7-10 business days
5941659416-0025CASE-ELECTRIC
Usually ships in 7-10 business days
9200992009-1400SCREW,6X28,BLACK
9 In-Stock
9201592015-1367NUT,FLANGED,6MM
10+ In-Stock
92015A92015-1627NUT,5MM
10+ In-Stock
9202292022-1407WASHER,3.3X12X1.2
Usually ships in 7-10 business days
92022A92022-2247WASHER,6.5X16X1.6
8 In-Stock
92022B92022-237WASHER,6.5X22X1.6
10+ In-Stock
9202792027-1168COLLAR,L=4.6
10+ In-Stock
92027A92027-1260COLLAR,L=5.1
6 In-Stock
9203992039-0865

(replaces part #
92039-0776)

RIVET
10+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
92039A92039-1231RIVET
Usually ships in 7-10 business days
9207192071-1131GROMMET
6 In-Stock
9216192161-1953DAMPER,7.8X30X11
3 In-Stock
9217292172-0292SCREW,5MM
10+ In-Stock
92172A92172-0711SCREW,6X16
10+ In-Stock
92172B92172-0739SCREW,TAPPING,6X16
10+ In-Stock
9221092210-0370NUT,WELL,5MM
10+ In-Stock
