2022 Kawasaki MULE Pro-DXT FE Diesel 1000 EPS Chassis Electrical Equipment OEM Parts Diagram

Submodel KDT1000CNFNN Mule PRO-DXT (2022)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Chassis Electrical Equipment

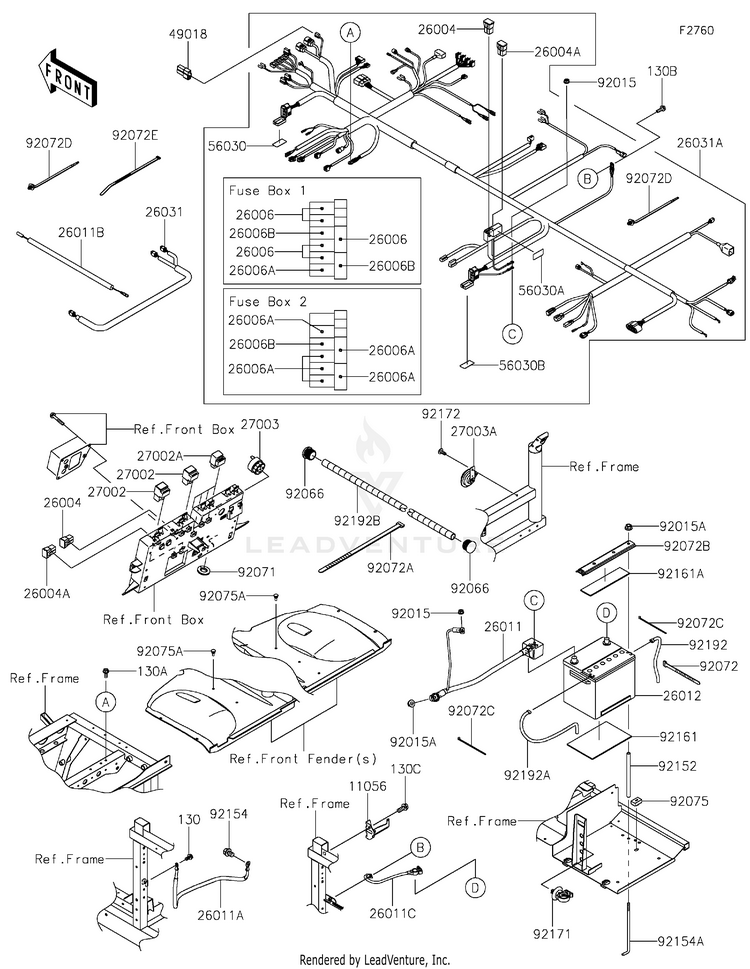

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-7478BRACKET,FUSE
Usually ships in 7-10 business days
2600426004-0024FUSE-ASSY,60A
Usually ships in 7-10 business days
26004A26004-0035

(replaces part #
26004-1093)

FUSE-ASSY,40A
4 In-Stock
2600626006-1078

(replaces part #
26006-0009)

FUSE,MINI BLADE,10A,RED
6 In-Stock
26006A26006-1080FUSE,MINI BLADE,30A,GREEN
Usually ships in 7-10 business days
26006B26006-3704FUSE,MINI BLADE,20A,YELLOW
Usually ships in 7-10 business days
2601126011-0904WIRE-LEAD,BATTERY(+)
Usually ships in 7-10 business days
26011A26011-0905WIRE-LEAD,ENGINE GND
Usually ships in 7-10 business days
26011B26011-0906WIRE-LEAD,OIL PRESSURE SW.
Usually ships in 7-10 business days
26011C26011-0912WIRE-LEAD,BATTERY(-)
Usually ships in 7-10 business days
2601226012-7501BATTERY,WET,(26R)
10+ In-Stock
2603126031-2226HARNESS,SUB
Usually ships in 7-10 business days
26031A26031-2828HARNESS,MAIN
Usually ships in 7-10 business days
2700227002-0012RELAY-ASSY
1 In-Stock
27002A27002-1062RELAY-ASSY
10+ In-Stock
2700327003-0116HORN,PARKING BUZZER
Usually ships in 7-10 business days
27003A27003-1330HORN
Usually ships in 7-10 business days
4901849018-0006DIODE
Usually ships in 7-10 business days
5603056030-0917LABEL,FUSE BOX1
Usually ships in 7-10 business days
56030A56030-0918LABEL,FUSE BOX3
Usually ships in 7-10 business days
56030B56030-0919LABEL,FUSE BOX2
Usually ships in 7-10 business days
9201592015-1367NUT,FLANGED,6MM
10+ In-Stock
92015A92015-1406NUT,FLANGED,8MM
10+ In-Stock
9206692066-0908PLUG
Usually ships in 7-10 business days
9207192071-0729GROMMET,22X45X9
Usually ships in 7-10 business days
9207292072-030BAND,L=123
7 In-Stock
92072A92072-032BAND,L=218
10+ In-Stock
92072B92072-0767BAND
Usually ships in 7-10 business days
92072C92072-0791BAND,92X2.4
Usually ships in 7-10 business days
92072D92072-1414BAND,OS170-FT7(BLACK)
10+ In-Stock
92072E92072-3509BAND,L=292.1
9 In-Stock
9207592075-099DAMPER
10+ In-Stock
92075A92075-1808DAMPER,6X10X15
Usually ships in 7-10 business days
9215292152-1852COLLAR,9.4X12.7X190.8
Usually ships in 7-10 business days
9215492154-1383BOLT,FLANGED,10X14
Usually ships in 7-10 business days
92154A92154-1650BOLT,BATTERY
Usually ships in 7-10 business days
9216192161-0578DAMPER
Usually ships in 7-10 business days
92161A92161-1753DAMPER
Usually ships in 7-10 business days
9217192171-0453CLAMP
8 In-Stock
9217292172-0739SCREW,TAPPING,6X16
10+ In-Stock
