2022 Kawasaki MULE Pro-DXT FE Diesel 1000 EPS Frame OEM Parts Diagram

Submodel KDT1000CNFNN Mule PRO-DXT (2022)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Frame

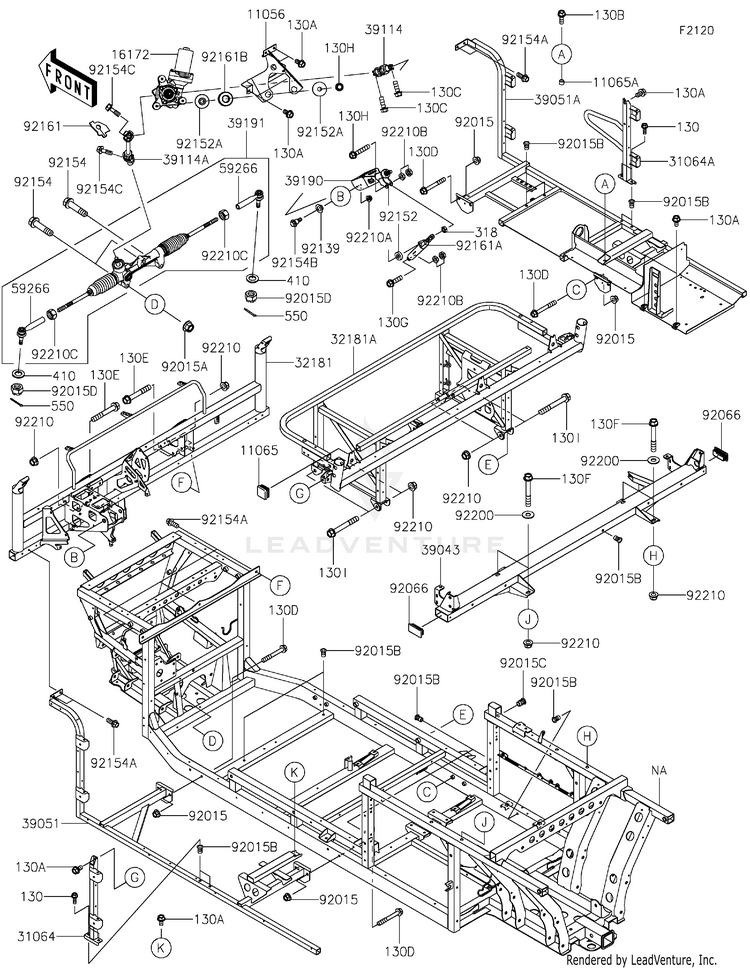

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-2838BRACKET
Usually ships in 7-10 business days
1106511065-0901CAP
Usually ships in 7-10 business days
11065A11065-7504CAP
7 In-Stock
130130BA0618BOLT-FLANGED,6X18
8 In-Stock
130A130BA0814BOLT-FLANGED,8X14
10+ In-Stock
130B130BA0822BOLT-FLANGED,8X22
Usually ships in 7-10 business days
1617216172-0557ACTUATOR,EPS
Usually ships in 7-10 business days
3106431064-0704PIPE-COMP,RR DOOR HINGE,LH
Usually ships in 7-10 business days
31064A31064-0705PIPE-COMP,RR DOOR HINGE,RH
Usually ships in 7-10 business days
3218132181-0048

(replaces part #
32181-0011)

FRAME-SUB-COMP,DASH PANEL
Usually ships in 7-10 business days
32181A32181-0014FRAME-SUB-COMP,SEAT
Usually ships in 7-10 business days
3904339043-0025CROSSMEMBER-COMP,C PILLAR
Usually ships in 7-10 business days
3905139051-0011FRAME-COMP-SIDE,LH
Usually ships in 7-10 business days
39051A39051-0013FRAME-COMP-SIDE,RH
Usually ships in 7-10 business days
3911439114-0019SHAFT-COMP-STRG
Usually ships in 7-10 business days
39114A39114-0031SHAFT-COMP-STRG
Usually ships in 7-10 business days
3919039190-0022

(replaces part #
39190-0006)

SHAFT-ASSY-STEERING
Usually ships in 7-10 business days
3919139191-0030GEAR-ASSY-STEERING
3 In-Stock
5926659266-0712JOINT-BALL
Usually ships in 7-10 business days
9201592015-1432NUT,8MM
10+ In-Stock
92015A92015-1433NUT,LOCK,FLANGED,12MM
10+ In-Stock
92015B92015-1791NUT,POP,6MM,L=15
10+ In-Stock
92015C92015-1793NUT,POP,8MM,L=16.5
9 In-Stock
92015D92015-1841NUT,CASTLE,14MM
6 In-Stock
9206692066-7505PLUG
Usually ships in 7-10 business days
9213992139-0230BUSHING
10+ In-Stock
9215292152-1848COLLAR,8.2X18X5
Usually ships in 7-10 business days
92152A92152-2149COLLAR,8.5X30X10.6
10+ In-Stock
9215492154-1008BOLT,FLANGED,12X50
Usually ships in 7-10 business days
92154A92154-1226BOLT,FLANGED,8X20
Usually ships in 7-10 business days
92154B92154-1320BOLT,6X21.5
Usually ships in 7-10 business days
92154C92154-4224BOLT
Usually ships in 7-10 business days
9216192161-1689DAMPER
Usually ships in 7-10 business days
92161A92161-1825DAMPER,GAS SPRING
Usually ships in 7-10 business days
92161B92161-7517DAMPER,ACTUATOR
Usually ships in 7-10 business days
9220092200-1595WASHER,10.5X25X1.6
10+ In-Stock
9221092210-0276NUT,LOCK,FLANGED,10MM
10+ In-Stock
92210A92210-0303NUT,LOCK,FLANGED,6MM
10+ In-Stock
92210B92210-0934NUT,HARD LOCK,8MM
4 In-Stock
92210C92210-0969NUT,16MM
Usually ships in 7-10 business days
