2022 Kawasaki MULE Pro-FXT 820 Ranch Edition Front Fender(S) OEM Parts Diagram

Submodel KAT820ENFNL Mule PRO-FXT (2022)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Fender(s)

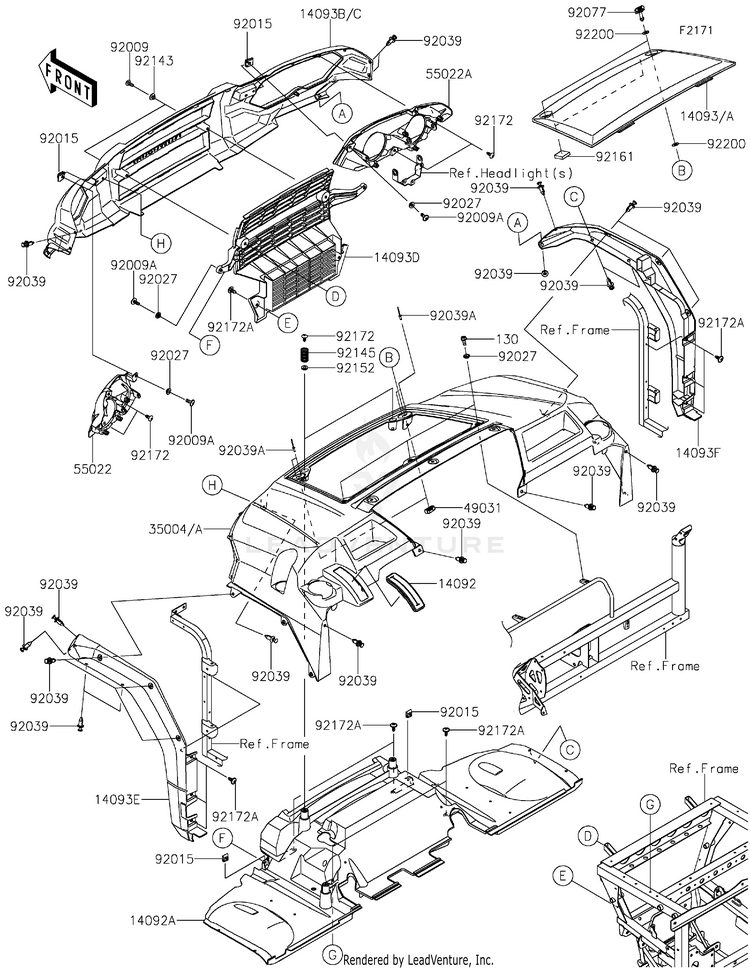

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130CA0616BOLT-FLANGED,6X16
Usually ships in 7-10 business days
1409214092-0791COVER,CENTER CONSOLE,TOP
Usually ships in 7-10 business days
14092A14093-1464

(replaces part #
14092-1194)

COVER,TOP,FR INNER
Usually ships in 7-10 business days
1409314093-0019-16SCOVER,OPEN,M.TITANIUM
Usually ships in 7-10 business days
14093A14093-0019-ISCOVER,OPEN,M.P.SILVER
Usually ships in 7-10 business days
14093B14093-0583-16SCOVER,FR GRILLE,M.TITANIUM
Usually ships in 7-10 business days
14093C14093-0583-ISCOVER,FR GRILLE,M.P.SILVER
Usually ships in 7-10 business days
14093D14093-0584COVER,RADIATOR
Usually ships in 7-10 business days
14093E14093-0596COVER,SIDE,LH
Usually ships in 7-10 business days
14093F14093-0597COVER,SIDE,RH
1 In-Stock
3500435004-0337-16SFENDER-FRONT,M.TITANIUM
1 In-Stock
35004A35004-0337-ISFENDER-FRONT,M.P.SILVER
Usually ships in 7-10 business days
4903149031-0008LATCH
Usually ships in 7-10 business days
5502255022-0322COVER-HEAD LAMP,LH
Usually ships in 7-10 business days
55022A55022-0323COVER-HEAD LAMP,RH
Usually ships in 7-10 business days
9200992009-1166SCREW,TAPPING,6X16
10+ In-Stock
92009A92009-1694

(replaces part #
92009-1621)

SCREW,6X16
10+ In-Stock
9201592015-1678NUT,CLAMP,6MM
10+ In-Stock
9202792027-1168COLLAR,L=4.6
10+ In-Stock
9203992039-0865

(replaces part #
92039-0776)

RIVET
10+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
92039A92039-0785RIVET,3.2X9.5
2 In-Stock
9207792077-0030KNOB
10+ In-Stock
9214392143-1057COLLAR
10+ In-Stock
9214592145-1727SPRING,17X65
Usually ships in 7-10 business days
9215292152-0140COLLAR
Usually ships in 7-10 business days
9216192161-1861DAMPER,40X40X10
Usually ships in 7-10 business days
9217292172-0284SCREW,6X16
7 In-Stock
92172A92172-0711SCREW,6X16
10+ In-Stock
9220092200-0503WASHER
10+ In-Stock
