2022 Kawasaki MULE SX 400 4x4 Differential OEM Parts Diagram

Submodel KAF400PNFNN Mule SX 4X4 FI (2022)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Differential

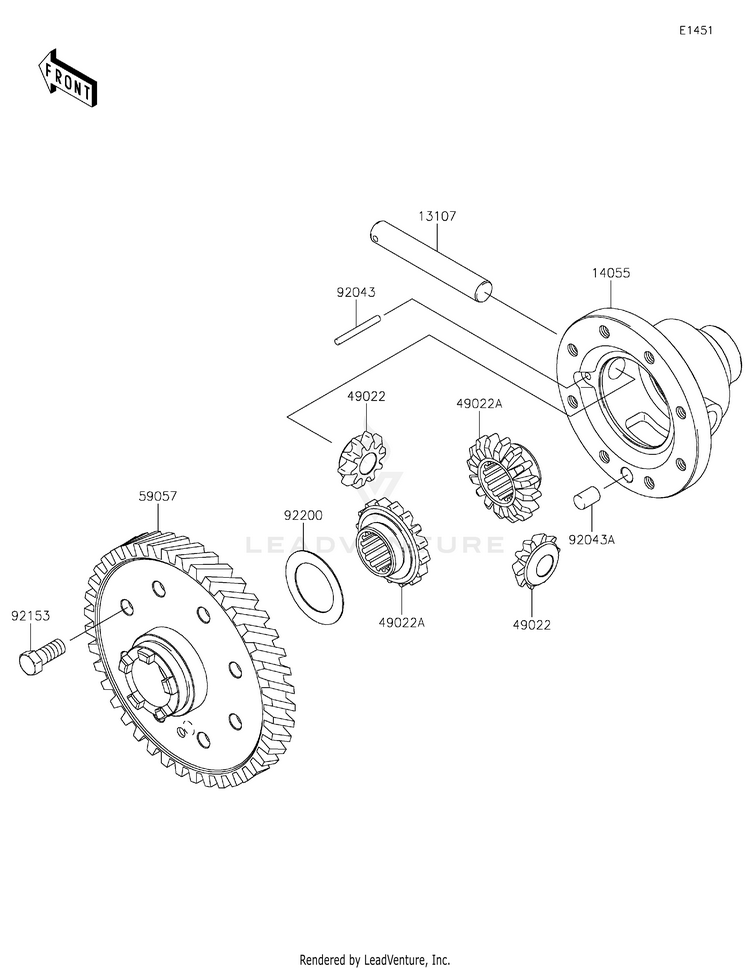

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1310713107-0042SHAFT,DIFF-GEAR CASE
Usually ships in 7-10 business days
1405514055-0016CASE-GEAR,DIFF
Usually ships in 7-10 business days
4902249022-0572GEAR-BEVEL,10T
Usually ships in 7-10 business days
49022A49022-0573GEAR-BEVEL,16T
Usually ships in 7-10 business days
5905759057-0005GEAR-HELICAL,64T
Usually ships in 7-10 business days
9204392043-0052PIN,4X37.8
Usually ships in 7-10 business days
92043A92043-1506PIN,10X14
10+ In-Stock
9215392153-0590BOLT,10X22
Usually ships in 7-10 business days
9220092200-1077WASHER
Usually ships in 7-10 business days
