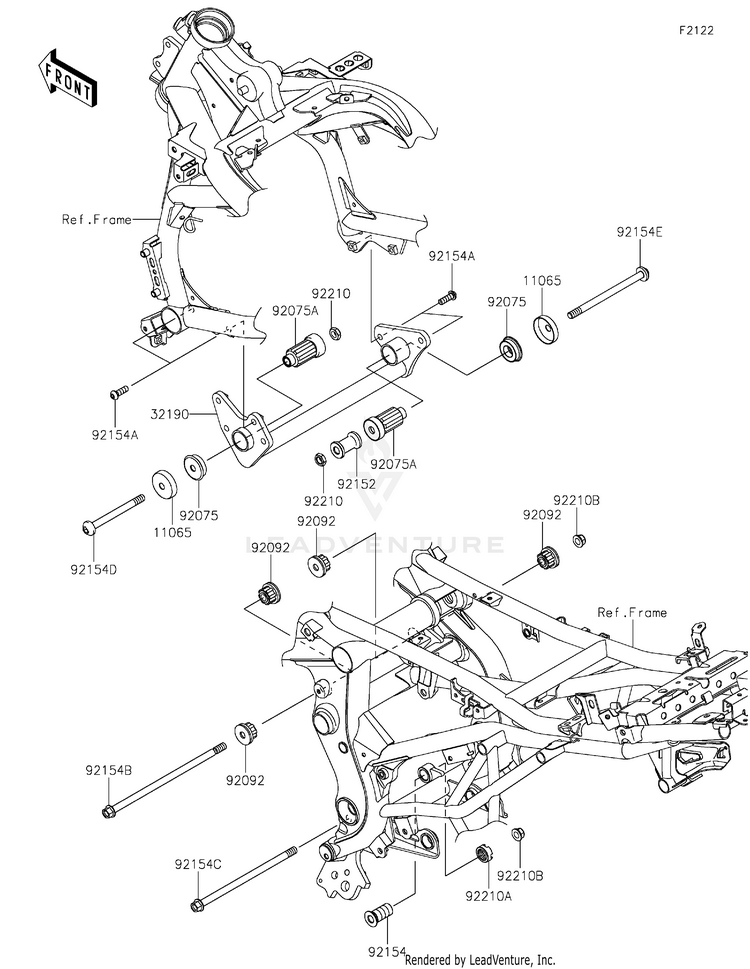

2022 Kawasaki Versys 650 KLE650A Engine Mount OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11065	11065-0871	CAP,10.5X43X10	Usually ships in 7-10 business days
32190	32190-0871	BRACKET-ENGINE,FR	Usually ships in 7-10 business days
92075	92075-1738	DAMPER,ENGINE MOUNT	4 In-Stock
92075A	92075-1739	DAMPER,ENGINE MOUNT,MAIN	Usually ships in 7-10 business days
92092	92092-0021	BUSHING-RUBBER	Usually ships in 7-10 business days
92152	92152-1878	COLLAR,10.5X26X40	Usually ships in 7-10 business days
92154	92154-0249	BOLT,ENGINE MOUNT,18MM	Usually ships in 7-10 business days
92154A	92154-1485	BOLT,SOCKET,8X25	Usually ships in 7-10 business days
92154B	92154-1505	BOLT,FLANGED,10X237	Usually ships in 7-10 business days
92154C	92154-1660	BOLT,FLANGED,10X200	Usually ships in 7-10 business days
92154D	92154-1671	BOLT,SOCKET,10X110	Usually ships in 7-10 business days
92154E	92154-1672	BOLT,SOCKET,10X150	Usually ships in 7-10 business days
92210	92210-0784	NUT,LOCK,10MM	7 In-Stock
92210A	92210-0963	NUT,CASTLE,18MM	Usually ships in 7-10 business days
92210B	92210-1081	NUT,LOCK,FLANGED,10MM	10+ In-Stock
