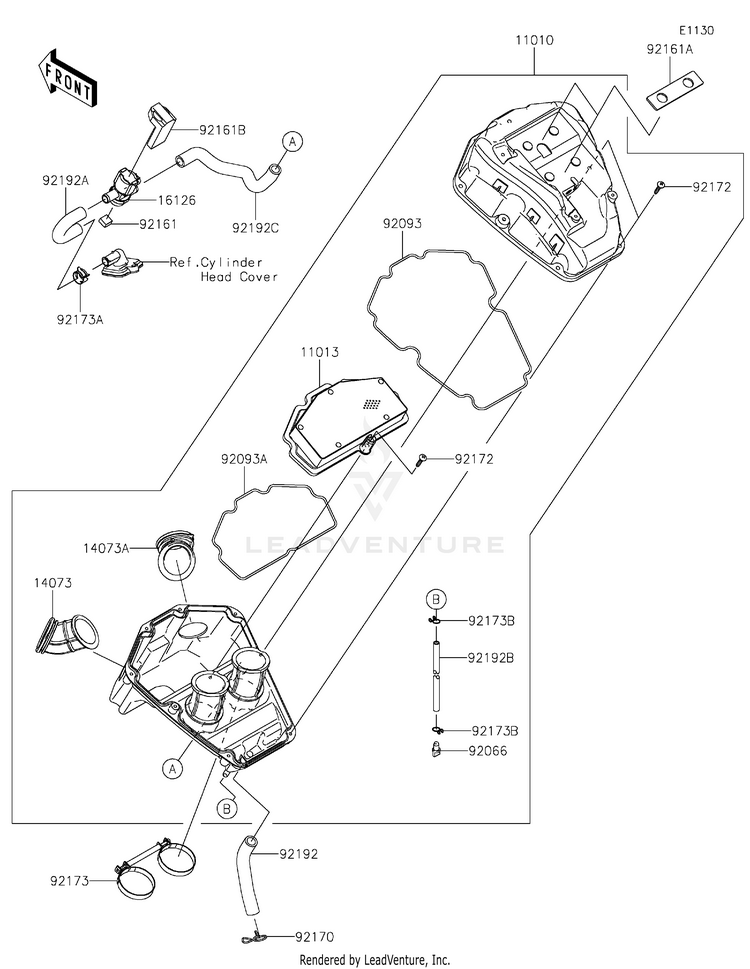

2022 Kawasaki Vulcan S Cafe (ABS) Air Cleaner OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11010	11010-0873	FILTER-ASSY-AIR	Usually ships in 7-10 business days
11013	11013-0745	ELEMENT-AIR FILTER	6 In-Stock
14073	14073-0799	DUCT,INTAKE,LH	Usually ships in 7-10 business days
14073A	14073-0800	DUCT,INTAKE,RH	Usually ships in 7-10 business days
16126	16126-0743	VALVE,AIR SWITCHING	Usually ships in 7-10 business days
92066	92066-0782	PLUG,DRAIN	Usually ships in 7-10 business days
92093	92093-0610	SEAL	Usually ships in 7-10 business days
92093A	92093-0611	SEAL,ELEMENT	Usually ships in 7-10 business days
92161	92161-1374	DAMPER	Usually ships in 7-10 business days
92161A	92161-1428	DAMPER	Usually ships in 7-10 business days
92161B	92161-1933	DAMPER	Usually ships in 7-10 business days
92170	92170-1017	CLAMP	Usually ships in 7-10 business days
92172	92172-0891	SCREW,5X25	10+ In-Stock
92173	92173-1698	CLAMP	Usually ships in 7-10 business days
92173A	92173-2344	CLAMP	Usually ships in 7-10 business days
92173B	92173-2400	CLAMP,10MM	Usually ships in 7-10 business days
92192	92192-0958	TUBE,BREATHER	Usually ships in 7-10 business days
92192A	92192-0960	TUBE,ASV-HEAD	Usually ships in 7-10 business days
92192B	92192-1380	TUBE,DRAIN,L=245	Usually ships in 7-10 business days
92192C	92192-1381	TUBE,ASV-A/C	Usually ships in 7-10 business days
