2023 Kawasaki Teryx KRX4 1000 eS Seat(Front) OEM Parts Diagram

Submodel KRT1000APFNL Teryx KRX4 1000 eS (2023)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

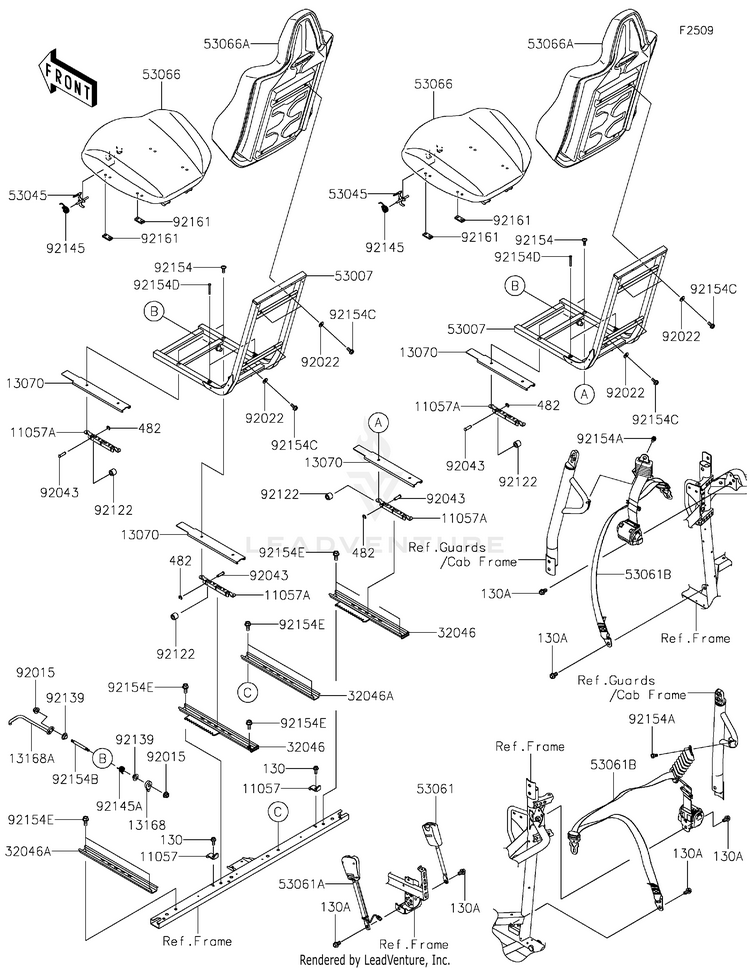

Seat(Front)

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105711057-2767BRACKET
Usually ships in 7-10 business days
11057A11057-2788BRACKET
Usually ships in 7-10 business days
130130BA0616BOLT-FLANGED,6X16
7 In-Stock
1307013070-0998GUIDE
Usually ships in 7-10 business days
130A130BA1222BOLT-FLANGED,12X22
10+ In-Stock
1316813168-0883LEVER,STOP
Usually ships in 7-10 business days
13168A13168-0884LEVER,SEAT ADJUST
Usually ships in 7-10 business days
3204632046-0462BRACKET-SEAT,RAIL,RH
Usually ships in 7-10 business days
32046A32046-0463BRACKET-SEAT,RAIL,LH
Usually ships in 7-10 business days
482482K4000

(replaces part #
482J4000)

CIRCLIP SELD BEM FIT
10+ In-Stock
5300753007-0450FRAME-SEAT
Usually ships in 7-10 business days
5304553045-0039HOOK-ASSY,SEAT BOTTOM
Usually ships in 7-10 business days
5306153061-0358BELT-SEAT,BUCKLE,PASSENGER
Usually ships in 7-10 business days
53061A53061-0365BELT-SEAT,BUCKLE,DRIVER
Usually ships in 7-10 business days
53061B53061-0368BELT-SEAT,RETRACTOR
Usually ships in 7-10 business days
5306653066-0975-71Q

(replaces part #
53066-0825-71Q)

SEAT-ASSY,BOTTOM,BLACK+BLK
Usually ships in 7-10 business days
53066A53066-0977-71T

(replaces part #
53066-0827-71T)

SEAT-ASSY,BACK,M.D.GRAY+BLK+SI
Usually ships in 7-10 business days
9201592015-1432NUT,8MM
10+ In-Stock
9202292022-1565WASHER,6.5X16X2
10+ In-Stock
9204392043-0991PIN
Usually ships in 7-10 business days
9212292122-0564ROLLER
Usually ships in 7-10 business days
9213992139-0230BUSHING
10+ In-Stock
9214592145-0022SPRING,SEAT LATCH
4 In-Stock
92145A92145-1858SPRING,ADJUST LEVER
Usually ships in 7-10 business days
9215492154-0139BOLT,SOCKET,6X18
Usually ships in 7-10 business days
92154A92154-2089BOLT,FLANGED,10X16
9 In-Stock
92154B92154-3923BOLT,ADJUST LEVER
Usually ships in 7-10 business days
92154C92154-3968BOLT,FLANGED,6X14
Usually ships in 7-10 business days
92154D92154-4135BOLT,SOCKET,6X45
Usually ships in 7-10 business days
92154E92154-7022BOLT,FLANGED,10X18
Usually ships in 7-10 business days
9216192161-1489DAMPER,SEAT
Usually ships in 7-10 business days
