2023 Kawasaki Teryx KRX4 1000 eS Shock Absorber(S) OEM Parts Diagram

Submodel KRT1000APFNL Teryx KRX4 1000 eS (2023)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Shock Absorber(s)

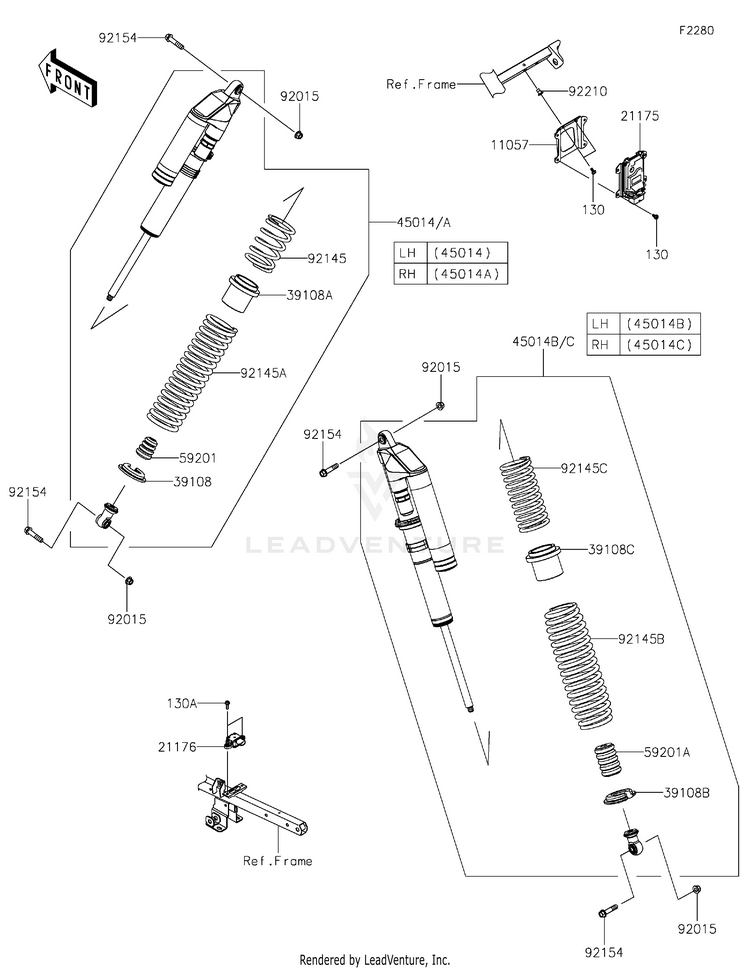

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105711057-7671BRACKET,SDC-ECU
Usually ships in 7-10 business days
130130BA0612BOLT-FLANGED,6X12
6 In-Stock
130A130BA0618BOLT-FLANGED,6X18
8 In-Stock
2117521175-1760CONTROL UNIT-ELECTRONIC,SDC
Usually ships in 7-10 business days
2117621176-0998SENSOR,IMU
Usually ships in 7-10 business days
3910839108-0015RETAINER-SPRING
Usually ships in 7-10 business days
39108A39108-0016RETAINER-SPRING
3 In-Stock
39108B39108-0017RETAINER-SPRING
Usually ships in 7-10 business days
39108C39108-0018RETAINER-SPRING
6 In-Stock
4501445014-0746-42PSHOCKABSORBER,FR,LH,SILVER
Usually ships in 7-10 business days
45014A45014-0747-42PSHOCKABSORBER,FR,RH,SILVER
Usually ships in 7-10 business days
45014B45014-0748-42PSHOCKABSORBER,RR,LH,SILVER
Usually ships in 7-10 business days
45014C45014-0749-42PSHOCKABSORBER,RR,RH,SILVER
Usually ships in 7-10 business days
5920159201-0004BUMPER
Usually ships in 7-10 business days
59201A59201-0005BUMPER
Usually ships in 7-10 business days
9201592015-1433NUT,LOCK,FLANGED,12MM
10+ In-Stock
9214592145-2290-42PSPRING,TENDER,SILVER
1 In-Stock
92145A92145-2291-42PSPRING,MAIN,SILVER
Usually ships in 7-10 business days
92145B92145-2292-42PSPRING,TENDER,SILVER
Usually ships in 7-10 business days
92145C92145-2293-42PSPRING,MAIN,SILVER
Usually ships in 7-10 business days
9215492154-0289BOLT,FLANGED,12X55
10+ In-Stock
9221092210-1623NUT,LARGE FLANGE,6MM,L=16.5
9 In-Stock
