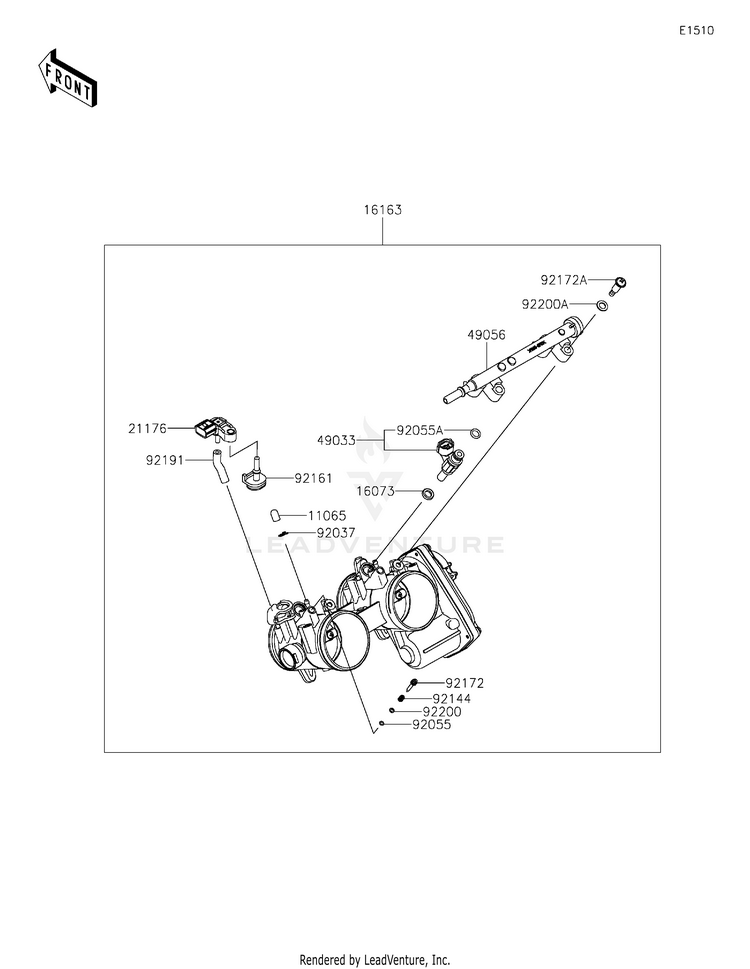

2023 Kawasaki Teryx KRX4 1000 eS Throttle OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11065	11065-0072	CAP	Usually ships in 7-10 business days
16073	16073-0848	INSULATOR	Usually ships in 7-10 business days
16163	16163-0991	THROTTLE-ASSY	Usually ships in 7-10 business days
21176	21176-0906	SENSOR,PRESSURE	Usually ships in 7-10 business days
49033	49033-0040	NOZZLE-INJECTION	4 In-Stock
49056	49056-0564	PIPE-INJECTION	Usually ships in 7-10 business days
92037	92037-1124	CLAMP,TUBE	Usually ships in 7-10 business days
92055	92055-0840	RING-O	Usually ships in 7-10 business days
92055A	92055-0937	RING-O,INJECTION NOZZLE	10+ In-Stock
92144	92144-1674	SPRING	Usually ships in 7-10 business days
92161	92161-0673	DAMPER	Usually ships in 7-10 business days
92172	92172-0156	SCREW	Usually ships in 7-10 business days
92172A	92172-0828	SCREW,PIPE INJECTION	Usually ships in 7-10 business days
92191	92191-1551	TUBE,3.2X7.4X40	Usually ships in 7-10 business days
92200	92200-1564	WASHER,PILOT AIR SCREW	8 In-Stock
92200A	92200-3807	WASHER	Usually ships in 7-10 business days
