2023 Kawasaki Vulcan Custom VN900 Engine Mount OEM Parts Diagram

Submodel VN900FPFAL Vulcan 900 Custom (2023)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Engine Mount

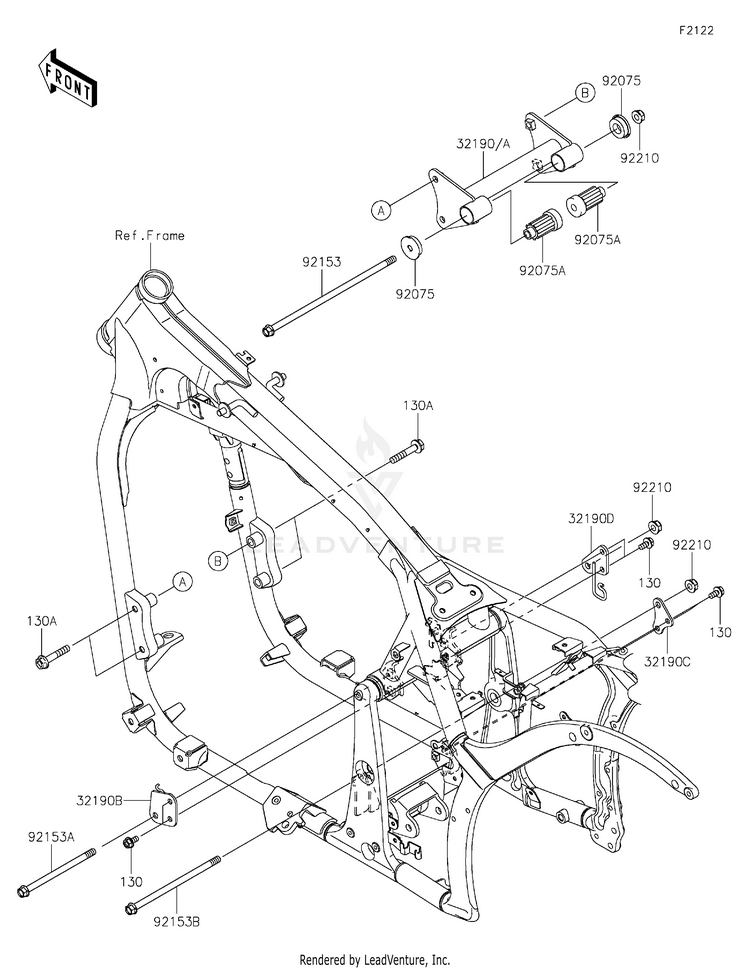

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BB0816BOLT-FLANGED,8X16
10+ In-Stock
130A130BB1055BOLT-FLANGED,10X55
Usually ships in 7-10 business days
3219032190-0229-18RBRACKET-ENGINE,FR,F.S.BLACK
Usually ships in 7-10 business days
32190A32190-0229-26MBRACKET-ENGINE,FR,F.M.GRAY
Usually ships in 7-10 business days
32190B32190-0274BRACKET-ENGINE,RR,LH,UPP
Usually ships in 7-10 business days
32190C32190-0275BRACKET-ENGINE,RR,RH,LWR
Usually ships in 7-10 business days
32190D32190-0276BRACKET-ENGINE,RR,RH,UPP
Usually ships in 7-10 business days
9207592075-1738DAMPER,ENGINE MOUNT
4 In-Stock
92075A92075-1739DAMPER,ENGINE MOUNT,MAIN
Usually ships in 7-10 business days
9215392153-1909BOLT,FLANGED,10X285
Usually ships in 7-10 business days
92153A92153-1910BOLT,FLANGED,10X158
Usually ships in 7-10 business days
92153B92153-1911BOLT,FLANGED,10X198
Usually ships in 7-10 business days
9221092210-1081NUT,LOCK,FLANGED,10MM
10+ In-Stock
