Assemblies

2023 Kawasaki Z H2 SE (ABS) Ignition Switch/Locks/Reflectors 2 OEM Parts Diagram

Submodel ZR1000LPFNN Z H2 SE (2023)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

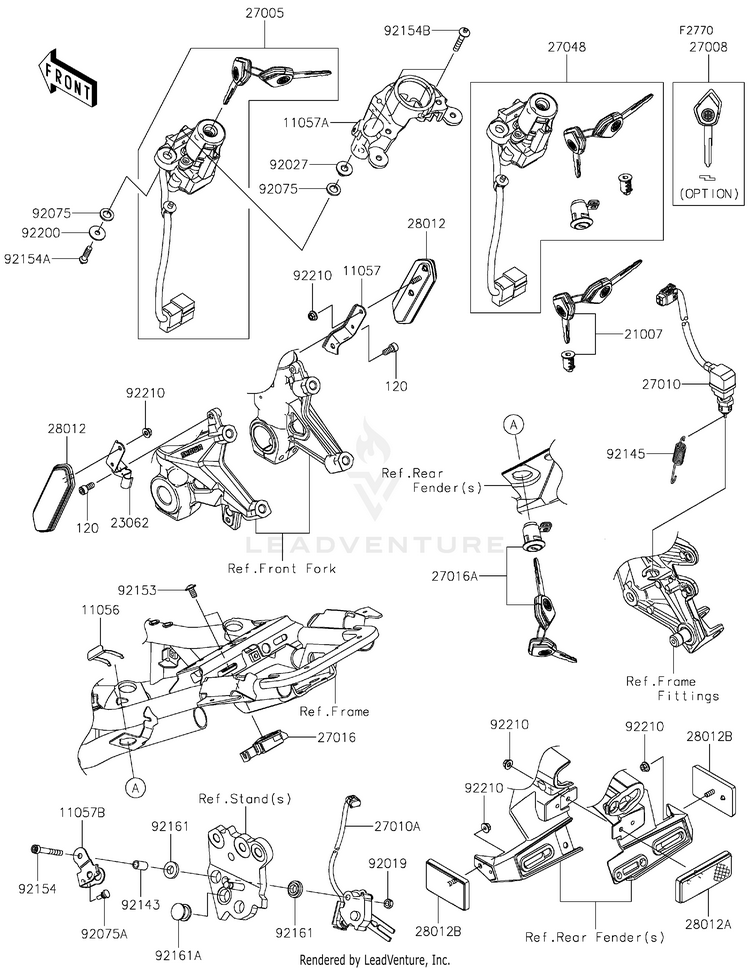

Ignition Switch/Locks/Reflectors 2

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-0238BRACKET,CLASP
Usually ships in 7-10 business days
1105711057-1301BRACKET,REFLECTOR,RH
Usually ships in 7-10 business days
11057A11057-3840BRACKET,IGNITION SWITCH
Usually ships in 7-10 business days
11057B11057-4105BRACKET,SIDE STAND SWITCH
Usually ships in 7-10 business days
120120CC0614BOLT-SOCKET,6X14
Usually ships in 7-10 business days
2100721007-5079ROTOR,LOCK,TANK CAP
Usually ships in 7-10 business days
2306223062-1291BRACKET-COMP,REFLECTOR,LH
Usually ships in 7-10 business days
2700527005-0711SWITCH-ASSY-IGNITION
Usually ships in 7-10 business days
2700827008-0590KEY-LOCK,BLANK
Usually ships in 7-10 business days
2701027010-0924SWITCH,STOP
Usually ships in 7-10 business days
27010A27010-0934SWITCH,SIDE STAND
Usually ships in 7-10 business days
2701627016-1115LOCK-ASSY,SEAT STRIKER
Usually ships in 7-10 business days
27016A27016-5389LOCK-ASSY,SEAT
Usually ships in 7-10 business days
2704827048-5258SWITCH-ASSY
Usually ships in 7-10 business days
2801228012-0045REFLECTOR-REFLEX,CCC
Usually ships in 7-10 business days
28012A28012-1077REFLECTOR-REFLEX
Usually ships in 7-10 business days
28012B28012-1088REFLECTOR-REFLEX
2 In-Stock
9201992019-008NUT,LOCK,6MM
10+ In-Stock
9202792027-1045COLLAR,L=9.6
10+ In-Stock
9207592075-1564DAMPER
4 In-Stock
92075A92075-1808DAMPER,6X10X15
Usually ships in 7-10 business days
9214392143-1408COLLAR,6.5X9.5X17
Usually ships in 7-10 business days
9214592145-1908SPRING
Usually ships in 7-10 business days
9215392153-1617BOLT,SOCKET,6X12
Usually ships in 7-10 business days
9215492154-0508BOLT,SOCKET,6X45
Usually ships in 7-10 business days
92154A92154-1858BOLT,TORX,6X22
5 In-Stock
92154B92154-2207BOLT,E TYPE TORX,6X35
Usually ships in 7-10 business days
9216192161-0117DAMPER
Usually ships in 7-10 business days
92161A92161-0118DAMPER
Usually ships in 7-10 business days
9220092200-0212WASHER,6X20X1.6
5 In-Stock
9221092210-0007NUT,FLANGED,5MM
3 In-Stock
