2023 Kawasaki Z H2 SE (ABS) Valve(S) OEM Parts Diagram

Submodel ZR1000LPFNN Z H2 SE (2023)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Valve(s)

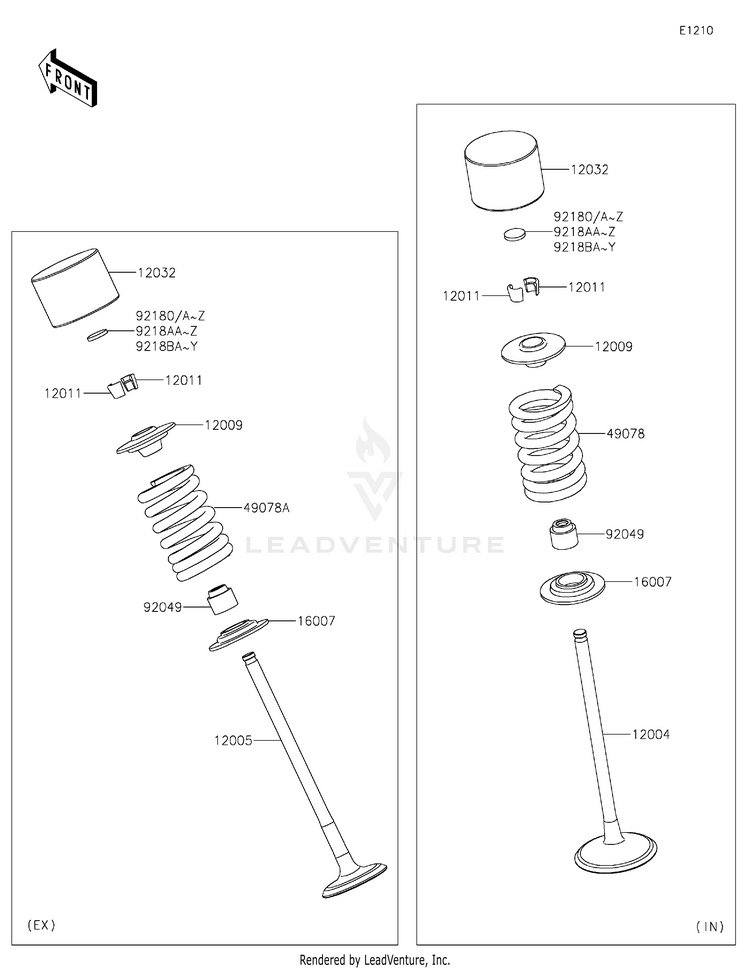

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1200412004-0744VALVE-INTAKE
Usually ships in 7-10 business days
1200512005-0765VALVE-EXHAUST
Usually ships in 7-10 business days
1200912009-0031RETAINER-VALVE SPRING
Usually ships in 7-10 business days
1201112011-1053COLLET
10+ In-Stock
1203212032-0013TAPPET,D26.5
Usually ships in 7-10 business days
1600716007-0034SEAT-SPRING
Usually ships in 7-10 business days
4907849078-0744SPRING-ENGINE VALVE,INTAKE
Usually ships in 7-10 business days
49078A49078-0745SPRING-ENGINE VALVE,EXHAUST
Usually ships in 7-10 business days
9204992049-1349SEAL-OIL,VSB 4.3 7.5 5.3 8.3
10+ In-Stock
9218092180-0108SHIM,T=1.300
Usually ships in 7-10 business days
92180A92180-0109SHIM,T=1.325
Usually ships in 7-10 business days
92180B92180-0110SHIM,T=1.350
Usually ships in 7-10 business days
92180C92180-0865SHIM,T=1.375
Usually ships in 7-10 business days
92180D92180-0866SHIM,T=1.388
Usually ships in 7-10 business days
92180E92180-0867SHIM,T=1.400
Usually ships in 7-10 business days
92180F92180-0868SHIM,T=1.413
Usually ships in 7-10 business days
92180G92180-0869SHIM,T=1.425
Usually ships in 7-10 business days
92180H92180-0870SHIM,T=1.438
Usually ships in 7-10 business days
92180I92180-0871SHIM,T=1.450
Usually ships in 7-10 business days
92180J92180-0872SHIM,T=1.463
Usually ships in 7-10 business days
92180K92180-0873SHIM,T=1.475
Usually ships in 7-10 business days
92180L92180-0874SHIM,T=1.488
Usually ships in 7-10 business days
92180M92180-0875SHIM,T=1.500
Usually ships in 7-10 business days
92180N92180-0876SHIM,T=1.513
Usually ships in 7-10 business days
92180O92180-0877SHIM,T=1.525
Usually ships in 7-10 business days
92180P92180-0878SHIM,T=1.538
Usually ships in 7-10 business days
92180Q92180-0879SHIM,T=1.550
Usually ships in 7-10 business days
92180R92180-0880SHIM,T=1.563
Usually ships in 7-10 business days
92180S92180-0881SHIM,T=1.575
Usually ships in 7-10 business days
92180T92180-0882SHIM,T=1.588
Usually ships in 7-10 business days
92180U92180-0883SHIM,T=1.600
Usually ships in 7-10 business days
92180V92180-0884SHIM,T=1.613
Usually ships in 7-10 business days
92180W92180-0885SHIM,T=1.625
Usually ships in 7-10 business days
92180X92180-0886SHIM,T=1.638
Usually ships in 7-10 business days
92180Y92180-0887SHIM,T=1.650
Usually ships in 7-10 business days
92180Z92180-0888SHIM,T=1.663
Usually ships in 7-10 business days
9218AA92180-0889SHIM,T=1.675
Usually ships in 7-10 business days
9218AB92180-0890SHIM,T=1.688
Usually ships in 7-10 business days
9218AC92180-0891SHIM,T=1.700
Usually ships in 7-10 business days
9218AD92180-0892SHIM,T=1.713
Usually ships in 7-10 business days
