Rear Brake

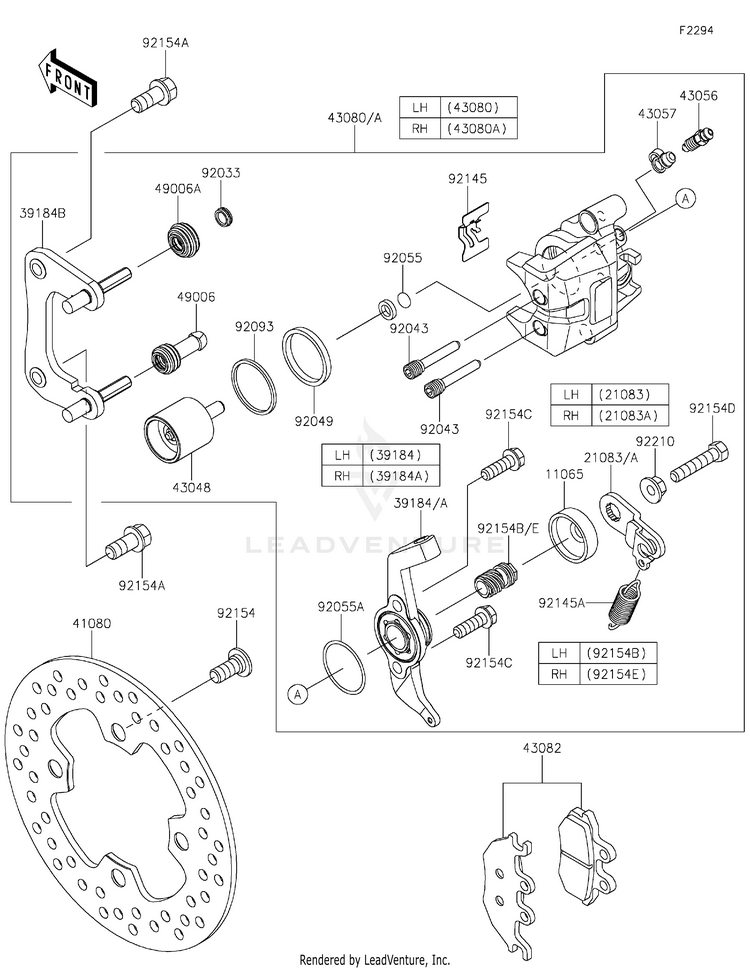

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106511065-0870CAP
4 In-Stock
2108321083-0728ARM,BRAKE,RR,LH
Usually ships in 7-10 business days
21083A21083-0729ARM,BRAKE,RR,RH
Usually ships in 7-10 business days
3918439184-0042BRACKET-ASSY,LH
Usually ships in 7-10 business days
39184A39184-0043BRACKET-ASSY,RH
1 In-Stock
39184B39184-0044BRACKET-ASSY
Usually ships in 7-10 business days
4108041080-0608DISC
10+ In-Stock
4304843048-0027PISTON-CALIPER
Usually ships in 7-10 business days
4305643056-0010BREATHER-BRAKE
Usually ships in 7-10 business days
4305743057-0552CAP-BREATHER
4 In-Stock
4308043080-0163CALIPER-SUB-ASSY,RR,LH
1 In-Stock
43080A43080-0164CALIPER-SUB-ASSY,RR,RH
Usually ships in 7-10 business days
4308243082-0140PAD-ASSY-BRAKE
10+ In-Stock
4900692161-Y012

(replaces part #
49006-0591)

DAMPER
4 In-Stock
49006A49006-Y005

(replaces part #
49006-0592)

BOOT,CALIPER
4 In-Stock
9203392033-0749RING-SNAP
Usually ships in 7-10 business days
9204392043-0818PIN
Usually ships in 7-10 business days
9204992093-Y006

(replaces part #
92049-0765)

SEAL,PISTON
7 In-Stock
9205592055-0793RING-O
Usually ships in 7-10 business days
92055A92055-0795RING-O
8 In-Stock
9209392093-0613SEAL
Usually ships in 7-10 business days
9214592145-Y035

(replaces part #
92145-1619)

SPRING,PAD
Usually ships in 7-10 business days
92145A92145-1690SPRING,RETURN,47MM
7 In-Stock
9215492154-0713BOLT,SOCKET,10X23
10+ In-Stock
92154A92154-1327BOLT,FLANGED,10X22
8 In-Stock
92154B92154-1479BOLT,LH
Usually ships in 7-10 business days
92154C92154-Y028

(replaces part #
92154-1480)

BOLT,FLANGE
Usually ships in 7-10 business days
92154D92154-1481BOLT
3 In-Stock
92154E92154-1503BOLT,RH
Usually ships in 7-10 business days
9221092210-0912NUT
9 In-Stock
