2024 Kawasaki MULE SX 400 4x4 XC LE FI Control OEM Parts Diagram

Submodel KAF400TRSNN Mule SX 4X4 XC LE FI (2024)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Control

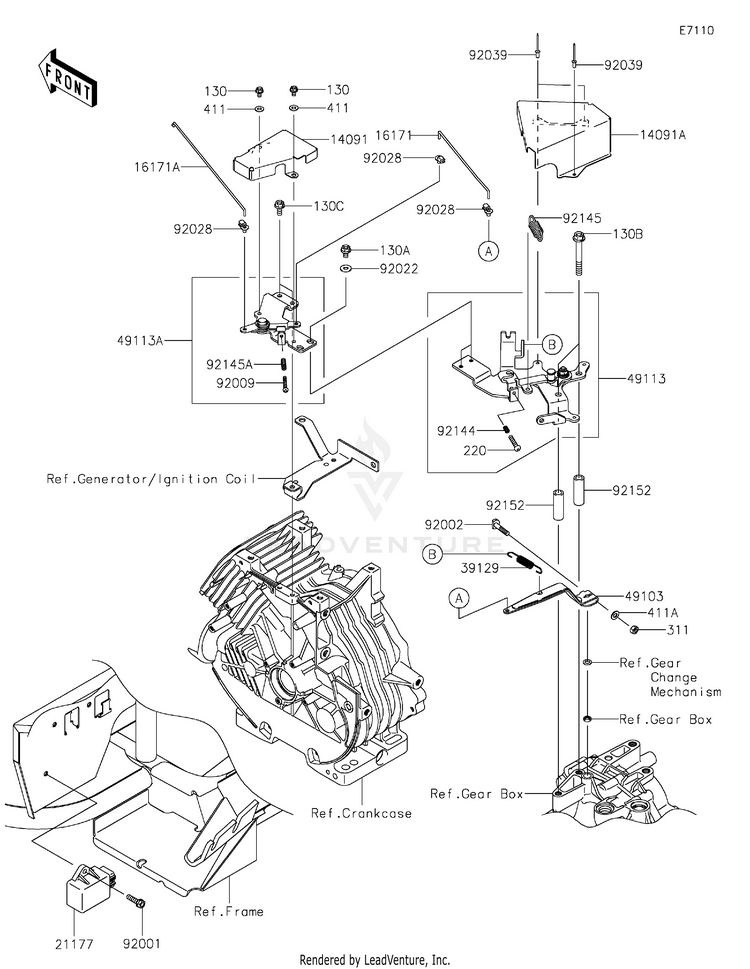

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BA0508BOLT-FLANGED,5X8
10+ In-Stock
130A130BA0610BOLT-FLANGED,6X10
10+ In-Stock
130B130BA0860BOLT-FLANGED,8X60
5 In-Stock
130C130BB0614BOLT-FLANGED,6X14
10+ In-Stock
1409114091-0401COVER,FR
Usually ships in 7-10 business days
14091A14091-0402COVER,RR
Usually ships in 7-10 business days
1617116171-0007LINK
Usually ships in 7-10 business days
16171A16171-0046LINK,GOVERNOR
Usually ships in 7-10 business days
2117721177-0003CONTROLLER
Usually ships in 7-10 business days
220220AA0522SCREW-PAN-CROS,5X22
10+ In-Stock
311311AA0600NUT-HEX,6MM
10+ In-Stock
3912939129-0006SPRING-GOVERNOR
Usually ships in 7-10 business days
411411AA0500WASHER-PLAIN,5MM
10+ In-Stock
411A411AA0600WASHER-PLAIN,6MM
10+ In-Stock
4910349103-1055ARM-GOVERNOR
Usually ships in 7-10 business days
4911349113-0006PANEL-COMP-CONTROL
1 In-Stock
49113A49113-0046PANEL-COMP-CONTROL
Usually ships in 7-10 business days
9200192001-1352BOLT,FLANGED,6X22
4 In-Stock
9200292002-2269BOLT,6X28
Usually ships in 7-10 business days
9200992009-7002SCREW,4X30
Usually ships in 7-10 business days
9202292022-2373WASHER,6.2X15X1.2
Usually ships in 7-10 business days
9202892028-2156BUSHING,GOVERNOR
6 In-Stock
9203992039-1163RIVET,BLIND,4.0X9.2
Usually ships in 7-10 business days
9214492144-2266SPRING
4 In-Stock
9214592145-0301SPRING,RETURN
Usually ships in 7-10 business days
92145A92145-7005SPRING
Usually ships in 7-10 business days
9215292152-7501COLLAR,9.1X13.95X42
4 In-Stock
