2024 Kawasaki Ninja 7 Hybrid (ABS) Handlebar OEM Parts Diagram

Submodel CX500ARFNL Ninja 7 Hybrid (2024)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Handlebar

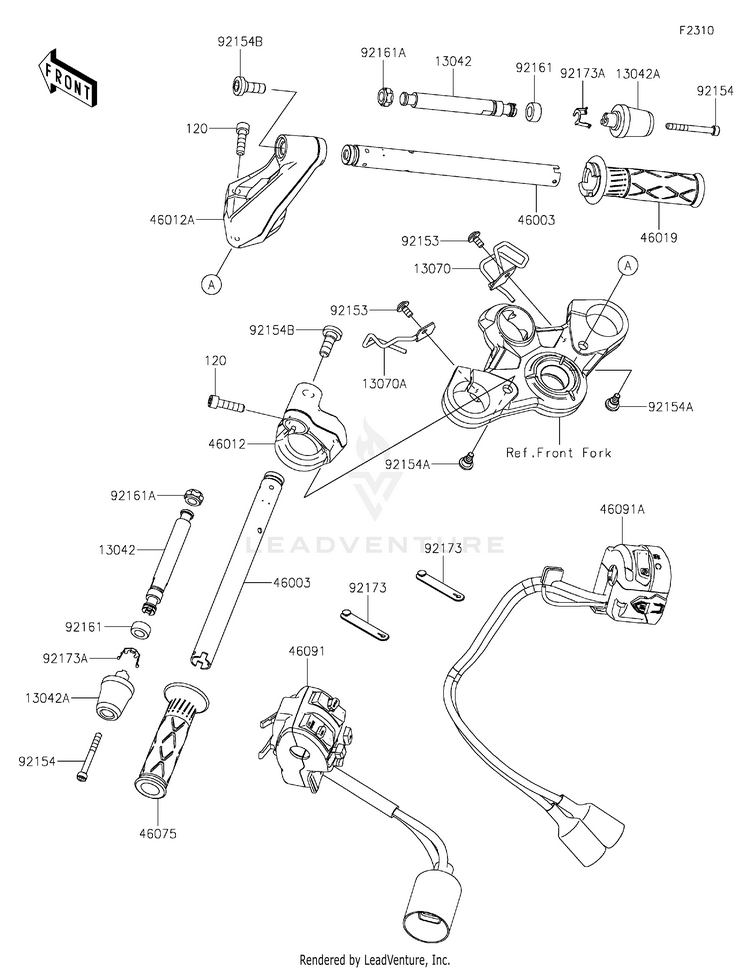

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
120120CA0830BOLT-SOCKET,8X30
10+ In-Stock
1304213042-0810WEIGHT,HANDLE,INNER
Usually ships in 7-10 business days
13042A13042-0811WEIGHT,HANDLE,OUTER
Usually ships in 7-10 business days
1307013070-1404GUIDE,HOUSING,RH
Usually ships in 7-10 business days
13070A13070-1501GUIDE,HOUSING,LH
Usually ships in 7-10 business days
4600346003-0820HANDLE
Usually ships in 7-10 business days
4601246012-0425-18RHOLDER-HANDLE,LH,F.S.BLACK
Usually ships in 7-10 business days
46012A46012-0426-18RHOLDER-HANDLE,RH,F.S.BLACK
Usually ships in 7-10 business days
4601946019-0125GRIP-ASSY,THROTTLE
Usually ships in 7-10 business days
4607546075-0663GRIP,HANDLE,LH
Usually ships in 7-10 business days
4609146091-0600HOUSING-ASSY-CONTROL,LH
Usually ships in 7-10 business days
46091A46091-0677HOUSING-ASSY-CONTROL,RH
Usually ships in 7-10 business days
9215392153-1948BOLT,SOCKET,6X12
Usually ships in 7-10 business days
9215492154-1299BOLT,SOCKET,6X55
Usually ships in 7-10 business days
92154A92154-2325BOLT,SOCKET,6X16.5
Usually ships in 7-10 business days
92154B92154-4042BOLT,SOCKET,10X27
Usually ships in 7-10 business days
9216192161-1850DAMPER,10X20X10
2 In-Stock
92161A92161-1930DAMPER,10X16X10,INNER
1 In-Stock
9217392173-2199CLAMP
Usually ships in 7-10 business days
92173A92173-2293CLAMP,WEIGHT
1 In-Stock
