2024 Kawasaki Teryx4 800 S Camo Drive Shaft-Front OEM Parts Diagram

Submodel KRT800KRFNL Teryx4 S Camo (US) (2024)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Drive Shaft-Front

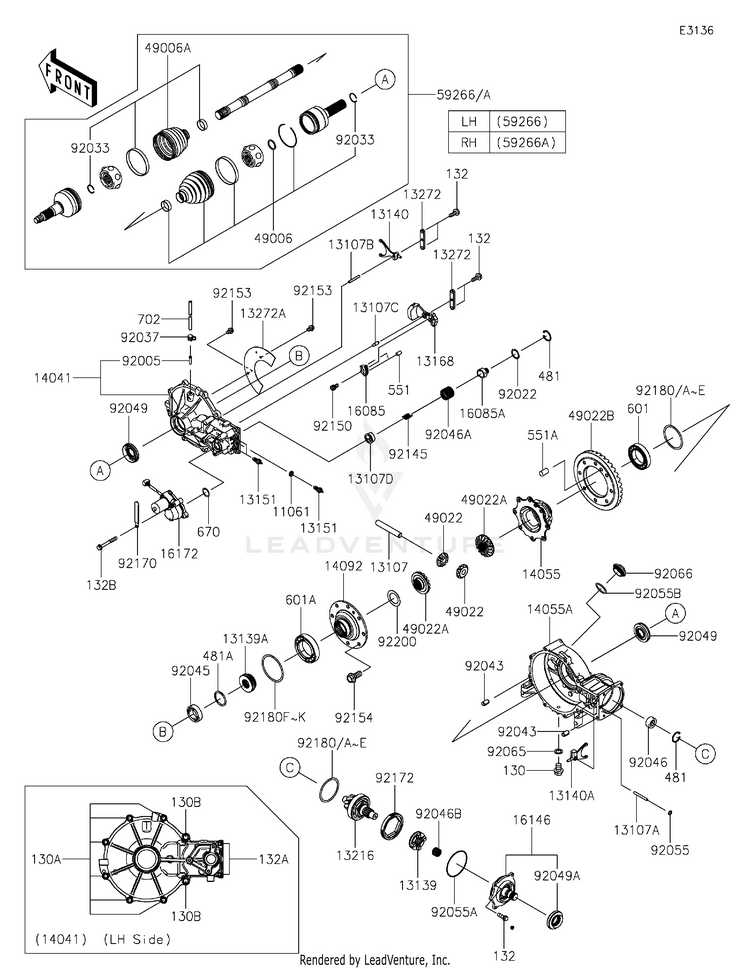

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106111061-0805GASKET,10.5X16X3
Usually ships in 7-10 business days
1310713107-0758SHAFT,CROSS
Usually ships in 7-10 business days
13107A13107-0759SHAFT,6X55
Usually ships in 7-10 business days
13107B13107-0768SHAFT,DIFF LOCK
2 In-Stock
13107C13107-0775SHAFT
Usually ships in 7-10 business days
13107D13107-0776SHAFT,ACTUATOR OUTPUT
Usually ships in 7-10 business days
1313913139-0017SHIFTER
Usually ships in 7-10 business days
13139A13139-0018SHIFTER,DIFF LOCK
Usually ships in 7-10 business days
1314013140-0070FORK-SHIFT
Usually ships in 7-10 business days
13140A13140-0635FORK-SHIFT
Usually ships in 7-10 business days
1315113151-1086SWITCH-COMP
Usually ships in 7-10 business days
1316813168-0731LEVER
Usually ships in 7-10 business days
1321613216-0884GEAR-COMP,BEVEL,8T
Usually ships in 7-10 business days
1327213272-0985PLATE
Usually ships in 7-10 business days
13272A13272-0986PLATE
Usually ships in 7-10 business days
1404114041-0575COVER-COMP,LH
Usually ships in 7-10 business days
1405514055-0602CASE-GEAR,CROSS SHAFT
Usually ships in 7-10 business days
14055A14055-0626CASE-GEAR,RH
Usually ships in 7-10 business days
1409214092-1042COVER,CROSS SHAFT CASE
Usually ships in 7-10 business days
1608516085-0605GEAR,65T
Usually ships in 7-10 business days
16085A16085-0614GEAR,13T
Usually ships in 7-10 business days
1614616146-0740COVER-ASSY,INPUT SHAFT
Usually ships in 7-10 business days
1617216172-0038ACTUATOR
Usually ships in 7-10 business days
4900649006-0578BOOT,INSIDE
7 In-Stock
49006A49006-0638BOOT,OUTSIDE
Usually ships in 7-10 business days
4902249022-0579GEAR-BEVEL,10T
Usually ships in 7-10 business days
49022A49022-0580GEAR-BEVEL,16T
Usually ships in 7-10 business days
49022B49022-0607GEAR-BEVEL,35T
Usually ships in 7-10 business days
5926659266-0744JOINT-BALL,LH
Usually ships in 7-10 business days
59266A59266-0745JOINT-BALL,RH
Usually ships in 7-10 business days
9200592005-1142FITTING
Usually ships in 7-10 business days
9202292022-225WASHER,25.3X32X0.5
1 In-Stock
9203392033-0837RING-SNAP
6 In-Stock
9203792037-1461CLAMP,TUBE
8 In-Stock
9204392043-1263PIN,6.2X8X14
10+ In-Stock
9204592045-1176BEARING-BALL,60/28
Usually ships in 7-10 business days
9204692046-0025BEARING-NEEDLE,AJ501907
Usually ships in 7-10 business days
92046A92046-0050BEARING-NEEDLE
Usually ships in 7-10 business days
92046B92046-1234BEARING-NEEDLE
2 In-Stock
9204992049-0089SEAL-OIL,28X60X7
7 In-Stock
