2024 Kawasaki Teryx4 800 S Camo Transmission OEM Parts Diagram

Submodel KRT800KRFNL Teryx4 S Camo (US) (2024)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Transmission

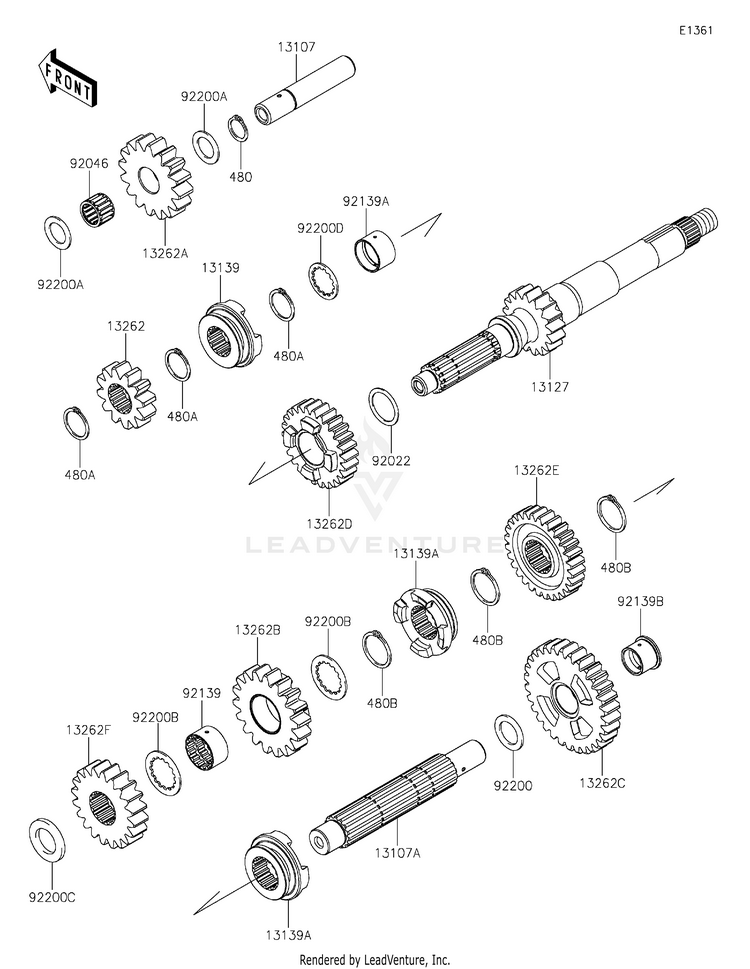

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1310713107-0715SHAFT,REVERSE
Usually ships in 7-10 business days
13107A13107-0716SHAFT,COUNTER
Usually ships in 7-10 business days
1312713127-0654SHAFT-TRANSMISSION INPUT,17T
Usually ships in 7-10 business days
1313913139-0624SHIFTER,INPUT HI
Usually ships in 7-10 business days
13139A13139-0625SHIFTER,OUTPUT
Usually ships in 7-10 business days
1326213262-0861GEAR,INPUT REVERSE,12T
Usually ships in 7-10 business days
13262A13262-0862GEAR,REVERSE IDLE,16T
Usually ships in 7-10 business days
13262B13262-0865GEAR,OUTPUT REVERSE,18T
Usually ships in 7-10 business days
13262C13262-0867GEAR,OUTPUT LOW,31T
Usually ships in 7-10 business days
13262D13262-1551GEAR,INPUT HI,26T
Usually ships in 7-10 business days
13262E13262-1552GEAR,OUTPUT HI,28T
Usually ships in 7-10 business days
13262F13262-1553GEAR,OUTPUT,19T
Usually ships in 7-10 business days
480480J1800CIRCLIP-TYPE-C,18MM
10+ In-Stock
480A480J2400CIRCLIP-TYPE-C,24MM
7 In-Stock
480B480J2800CIRCLIP-TYPE-C,28MM
9 In-Stock
9202292022-1800WASHER,25.3X32X1
2 In-Stock
9204692046-0605BEARING-NEEDLE,182216E03 C3
Usually ships in 7-10 business days
9213992139-0107BUSHING,25X28.3X16.7
Usually ships in 7-10 business days
92139A92139-0280BUSHING,25X28X17.8
Usually ships in 7-10 business days
92139B92139-0707BUSHING,20X24X18.7
Usually ships in 7-10 business days
9220092200-0221WASHER,20.2X30X1.8
Usually ships in 7-10 business days
92200A92200-0716WASHER,18.2X28X1.5
Usually ships in 7-10 business days
92200B92200-0717WASHER,28.5X38X1.5
Usually ships in 7-10 business days
92200C92200-0718WASHER,22.2X36X3.6
Usually ships in 7-10 business days
92200D92200-1239WASHER,25.2X31.0X1.5
Usually ships in 7-10 business days
