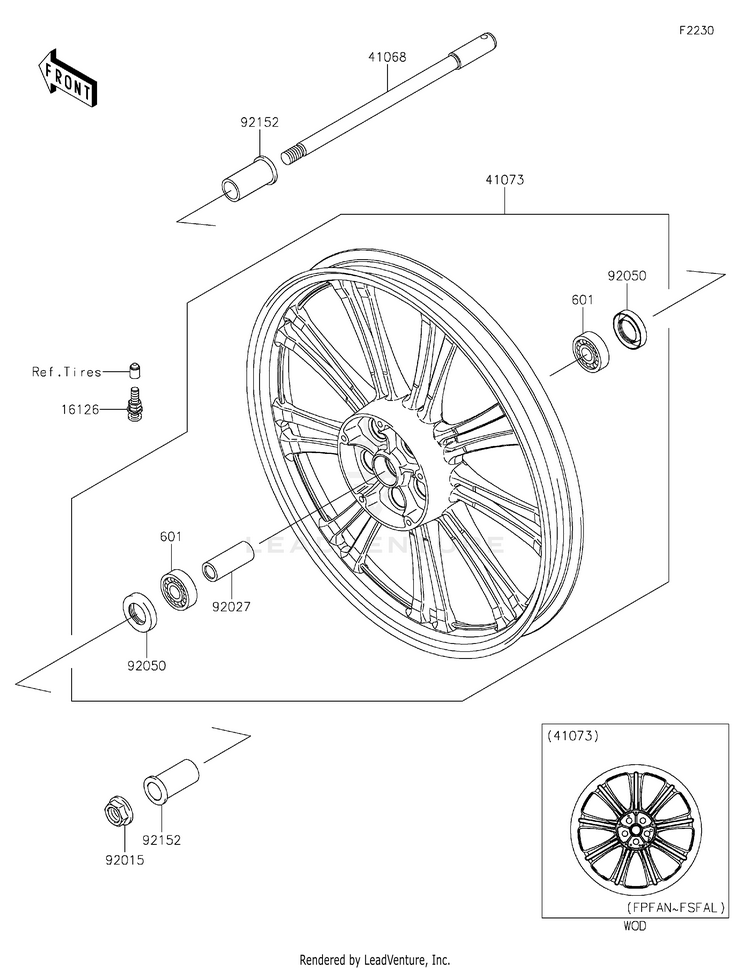

2024 Kawasaki Vulcan Custom VN900 Front Wheel OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
16126	16126-1417	VALVE	Usually ships in 7-10 business days
41068	41068-0058	AXLE,FR	Usually ships in 7-10 business days
41073	41073-0182-18F	WHEEL-ASSY,FR,G.BLACK	Usually ships in 7-10 business days
601	601B6004UU	BEARING-BALL,#6004UUC3	Usually ships in 7-10 business days
92015	92015-1993	NUT,FLANGED,18MM	Usually ships in 7-10 business days
92027	92027-1752	COLLAR,20.2X28X70	Usually ships in 7-10 business days
92050	92050-060	SEAL-OIL,26X42X8	Usually ships in 7-10 business days
92152	92152-0349	COLLAR,FR AXLE,L=53	Usually ships in 7-10 business days
