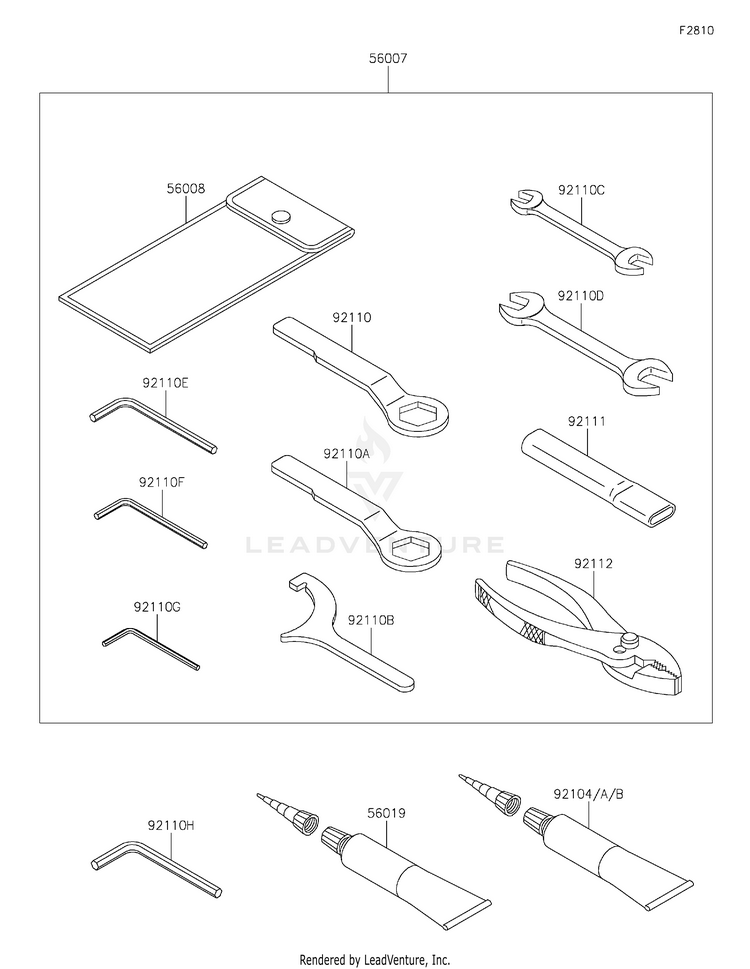

2024 Kawasaki Vulcan S Cafe (ABS) Owner's Tools OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
56007	56007-0129	TOOL-KIT	Usually ships in 7-10 business days
56008	56008-0036	BAG,TOOL	Usually ships in 7-10 business days
56019	56019-120	GASKET-LIQUID,TB1211,WHITE	Usually ships in 7-10 business days
92104	92104-0004	GASKET-LIQUID,TB1211F,CLEAR	Usually ships in 7-10 business days
92104A	92104-1064	GASKET-LIQUID,TB1216B,BLACK	Usually ships in 7-10 business days
92104B	92104-2068	GASKET-LIQUID,TB1207B,BLACK	Usually ships in 7-10 business days
92110	92110-0064	TOOL-WRENCH,BOX END,22MM	Usually ships in 7-10 business days
92110A	92110-0065	TOOL-WRENCH,BOX END,27MM	Usually ships in 7-10 business days
92110B	92110-0558	TOOL-WRENCH,HOOK SPANNER,R37.5	Usually ships in 7-10 business days
92110C	92110-0564	TOOL-WRENCH,OPEN END,10X12	Usually ships in 7-10 business days
92110D	92110-0565	TOOL-WRENCH,OPEN END,12X14	Usually ships in 7-10 business days
92110E	92110-0566	TOOL-WRENCH,ALLEN,5MM	Usually ships in 7-10 business days
92110F	92110-0567	TOOL-WRENCH,ALLEN,4MM	Usually ships in 7-10 business days
92110G	92110-0577	TOOL-WRENCH,ALLEN,3MM	Usually ships in 7-10 business days
92110H	92110-0587	TOOL-WRENCH,ALLEN,6MM	Usually ships in 7-10 business days
92111	92111-0008	TOOL-BAR,WRENCH	Usually ships in 7-10 business days
92112	92112-0007	TOOL-PLIERS	Usually ships in 7-10 business days
