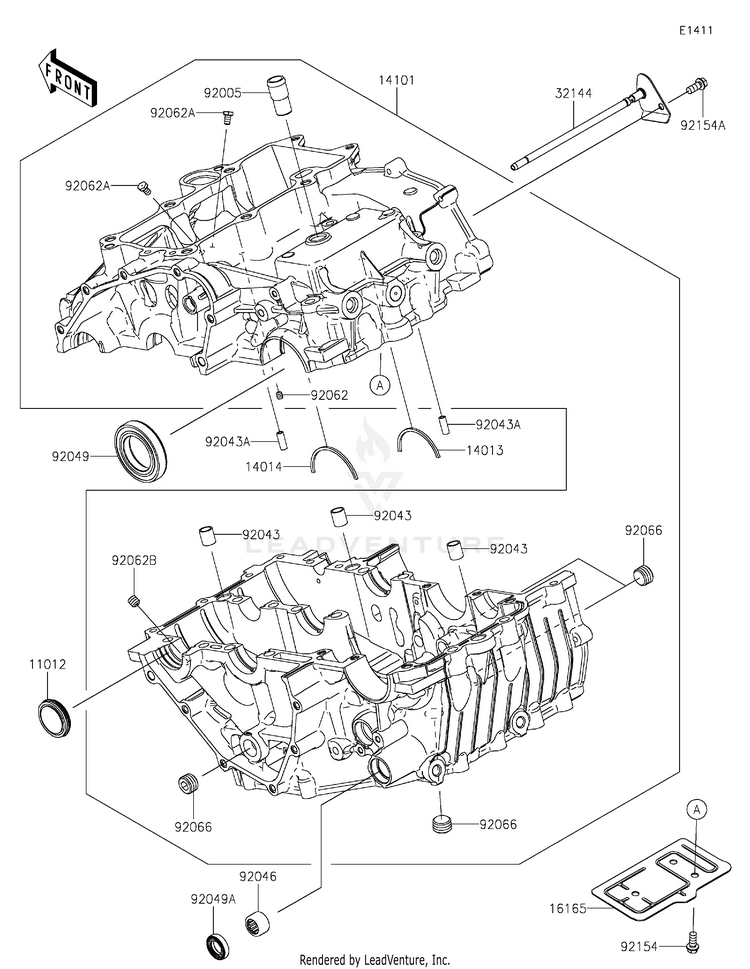

2024 Kawasaki Z500 SE (ABS) Crankcase OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11012	11012-1770	CAP,LH	Usually ships in 7-10 business days
14013	14013-004	RING-POSITION	Usually ships in 7-10 business days
14014	14014-0576	PLATE-POSITION	Usually ships in 7-10 business days
14101	14101-0023	SET-CRANKCASE	Usually ships in 7-10 business days
16165	16165-0016	SEPARATOR	Usually ships in 7-10 business days
32144	32144-0008	PIPE-ASSY	Usually ships in 7-10 business days
92005	92005-0713	FITTING,BREATHER	Usually ships in 7-10 business days
92043	92043-0963	PIN,12X14	Usually ships in 7-10 business days
92043A	92043-1309	PIN,3.5X6X16	Usually ships in 7-10 business days
92046	92046-0043	BEARING-NEEDLE,HK1412FM	Usually ships in 7-10 business days
92049	92049-0799	SEAL-OIL	Usually ships in 7-10 business days
92049A	92049-1520	SEAL-OIL,TC14245	8 In-Stock
92062	92062-0004	NOZZLE	3 In-Stock
92062A	92062-0047	NOZZLE	Usually ships in 7-10 business days
92062B	92062-0048	NOZZLE	Usually ships in 7-10 business days
92066	92066-0831	PLUG	4 In-Stock
92154	92154-1426	BOLT,FLANGED,6X14	Usually ships in 7-10 business days
92154A	92154-2907	BOLT,FLANGED,6X14	Usually ships in 7-10 business days
