2025 Kawasaki MULE SX 400 4x4 Carrier(S) OEM Parts Diagram

Submodel KAF400PSFNN Mule SX 4X4 FI (2025)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Carrier(s)

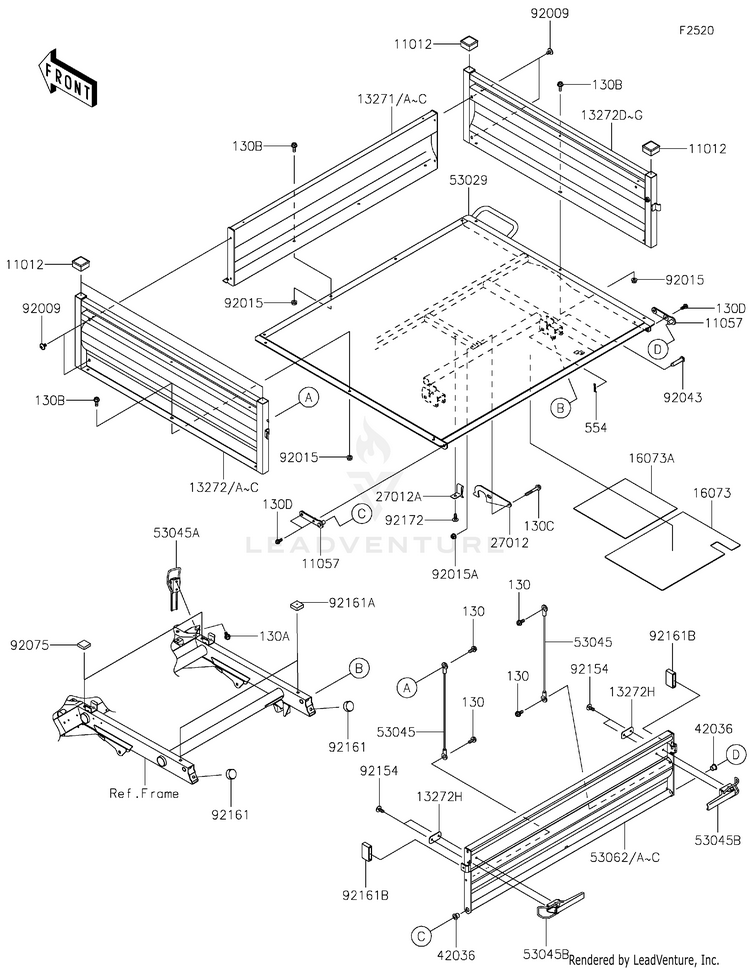

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1101211012-1784CAP
10+ In-Stock
1105711057-1623BRACKET,TAIL GATE
Usually ships in 7-10 business days
1327113271-0385-10PLATE,CARRIER,SIDE,FR,BLACK
Usually ships in 7-10 business days
13271A13271-0385-16MPLATE,CARRIER,SIDE,FR,D.R.RED
Usually ships in 7-10 business days
13271B13271-0385-42TPLATE,CARRIER,SIDE,FR,T.GREEN
Usually ships in 7-10 business days
13271C13271-0385-75DPLATE,CARRIER,SIDE,FR,G.BLUE | US
Usually ships in 7-10 business days
1327213272-2506-10PLATE,SIDE CARRIER,LH,BLACK
Usually ships in 7-10 business days
13272A13272-2506-16MPLATE,SIDE CARRIER,LH,D.R.RED
Usually ships in 7-10 business days
13272B13272-2506-42TPLATE,SIDE CARRIER,LH,T.GREEN
Usually ships in 7-10 business days
13272C13272-2506-75DPLATE,SIDE CARRIER,LH,G.BLUE | US
Usually ships in 7-10 business days
13272D13272-2507-10PLATE,SIDE CARRIER,RH,BLACK
Usually ships in 7-10 business days
13272E13272-2507-16MPLATE,SIDE CARRIER,RH,D.R.RED
Usually ships in 7-10 business days
13272F13272-2507-42TPLATE,SIDE CARRIER,RH,T.GREEN
Usually ships in 7-10 business days
13272G13272-2507-75DPLATE,SIDE CARRIER,RH,G.BLUE | US
Usually ships in 7-10 business days
13272H13272-7516PLATE
Usually ships in 7-10 business days
1607316073-0868INSULATOR,295X400
Usually ships in 7-10 business days
16073A16073-0869INSULATOR,265X265
Usually ships in 7-10 business days
2701227012-0044HOOK
Usually ships in 7-10 business days
27012A27012-1445HOOK,CARRIER
Usually ships in 7-10 business days
4203642036-0839SLEEVE
Usually ships in 7-10 business days
5302953029-0414-388

(replaces part #
53029-0356-388)

CARRIER,BASE,T.BLACK
Usually ships in 7-10 business days
5304553045-0030HOOK-ASSY,CABLE
Usually ships in 7-10 business days
53045A53045-0032HOOK-ASSY
Usually ships in 7-10 business days
53045B53045-0033HOOK-ASSY
Usually ships in 7-10 business days
5306253062-0026-10GATE-TAIL,BLACK
Usually ships in 7-10 business days
53062A53062-0026-16MGATE-TAIL,D.R.RED
Usually ships in 7-10 business days
53062B53062-0026-42TGATE-TAIL,T.GREEN
Usually ships in 7-10 business days
53062C53062-0026-75DGATE-TAIL,G.BLUE | US
Usually ships in 7-10 business days
9200992009-1661SCREW,6X10
4 In-Stock
9201592015-1367NUT,FLANGED,6MM
10+ In-Stock
92015A92015-1675NUT,LOCK,FLANGED,6MM
10+ In-Stock
9204392043-1451PIN,12X54
Usually ships in 7-10 business days
9207592075-1882DAMPER
10+ In-Stock
9215492154-4238BOLT,SOCKET,6X14
Usually ships in 7-10 business days
9216192161-1065DAMPER
5 In-Stock
92161A92161-2219DAMPER
Usually ships in 7-10 business days
