2025 Kawasaki MULE SX 400 4x4 Shift Lever(S) OEM Parts Diagram

Submodel KAF400PSFNN Mule SX 4X4 FI (2025)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Shift Lever(s)

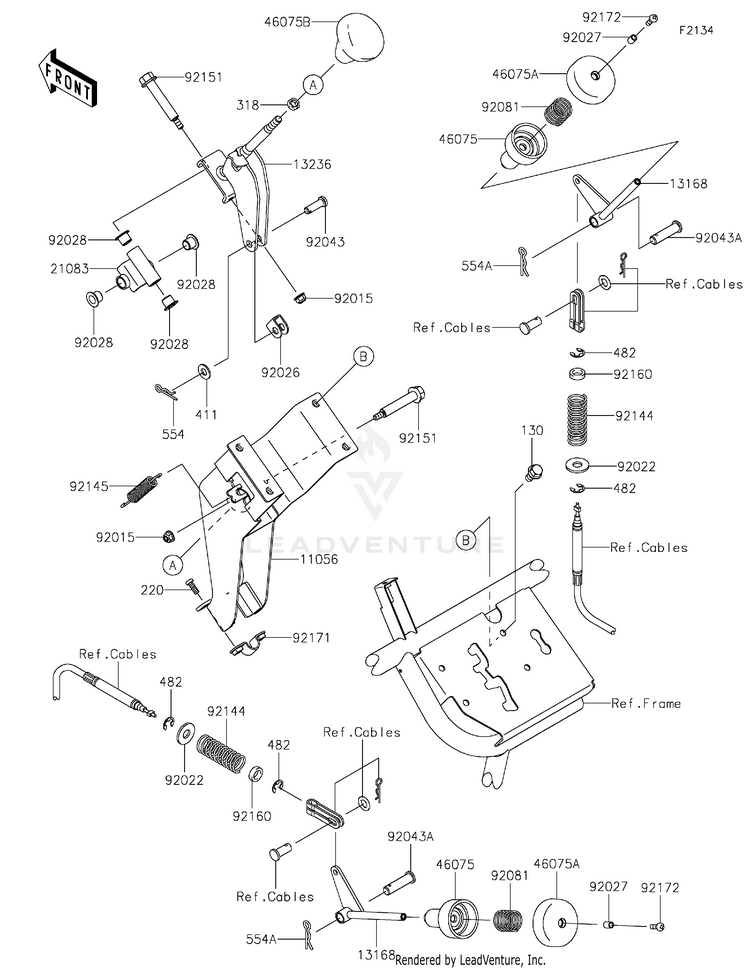

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-2237BRACKET,SHIFT LEVER
Usually ships in 7-10 business days
130130BA0816BOLT-FLANGED,8X16
10+ In-Stock
1316813168-0069LEVER
Usually ships in 7-10 business days
1323613236-0073LEVER-COMP,SHIFT
3 In-Stock
2108321083-0023ARM
Usually ships in 7-10 business days
220220AA0514SCREW-PAN-CROS,5X14
10+ In-Stock
318318BB0800NUT-HEX-SMALL
4 In-Stock
411411AA0800WASHER-PLAIN,8MM
10+ In-Stock
4607546075-0012GRIP
Usually ships in 7-10 business days
46075A46075-0014GRIP
3 In-Stock
46075B46075-0046GRIP,SHIFT
4 In-Stock
482482EA8000CIRCLIP-TYPE-E,8MM
5 In-Stock
554554DA0800PIN-SNAP
10+ In-Stock
554A554DA1000PIN-SNAP,10MM
10+ In-Stock
9201592015-1675NUT,LOCK,FLANGED,6MM
10+ In-Stock
9202292022-044WASHER,10.5X26X2.3
8 In-Stock
9202692026-0074SPACER
Usually ships in 7-10 business days
9202792027-1313COLLAR,5X7X9.3
9 In-Stock
9202892028-1507BUSHING
10+ In-Stock
9204392043-0053PIN
2 In-Stock
92043A92043-1069PIN,10X34
Usually ships in 7-10 business days
9208192081-1714SPRING
3 In-Stock
9214492144-1510SPRING
Usually ships in 7-10 business days
9214592145-0249SPRING
Usually ships in 7-10 business days
9215192151-1747BOLT,6MM
Usually ships in 7-10 business days
9216092160-3754DAMPER
Usually ships in 7-10 business days
9217192171-0365CLAMP
Usually ships in 7-10 business days
9217292172-7501SCREW
1 In-Stock
