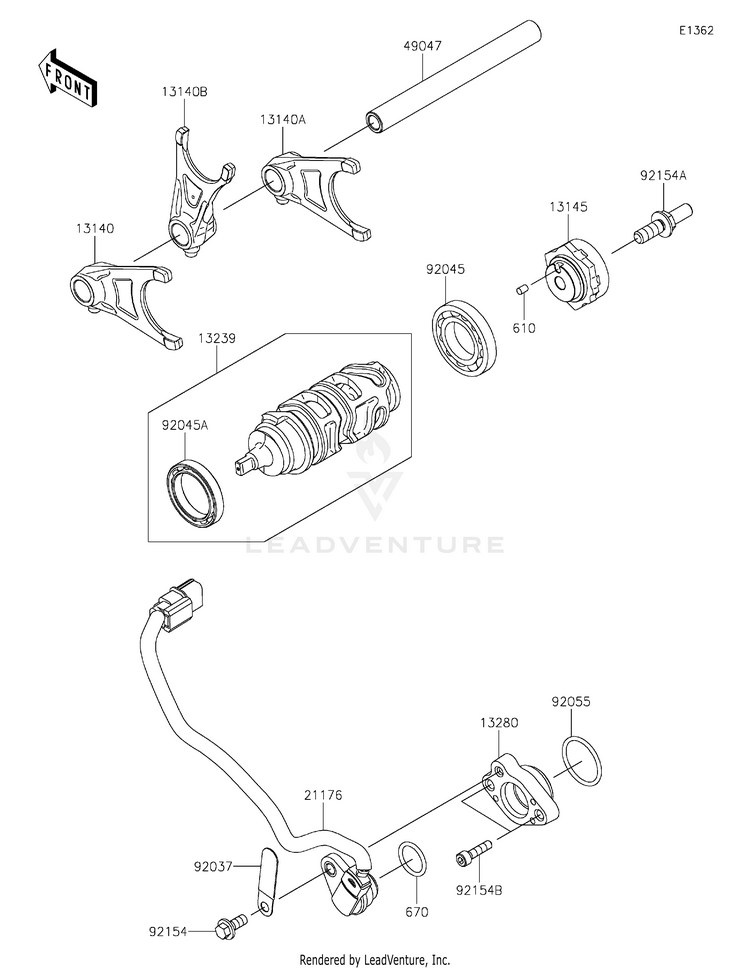

2025 Kawasaki Ninja ZX-10RR Gear Change Drum/Shift Fork(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
13140	13140-0064	FORK-SHIFT,OUTPUT,LH	Usually ships in 7-10 business days
13140A	13140-0065	FORK-SHIFT,OUTPUT,RH	Usually ships in 7-10 business days
13140B	13140-0650	FORK-SHIFT,INPUT,CNT	Usually ships in 7-10 business days
13145	13145-0051	CAM-CHANGE DRUM	Usually ships in 7-10 business days
13239	13239-0041	DRUM-ASSY-CHANGE	Usually ships in 7-10 business days
13280	13280-0846	HOLDER,GEAR POSITION SENSOR	Usually ships in 7-10 business days
21176	21176-0820	SENSOR,GEAR POSITION	Usually ships in 7-10 business days
49047	49047-0623	ROD-SHIFT	Usually ships in 7-10 business days
610	610A0406	ROLLER,4X6	4 In-Stock
670	670D2018	O RING,18MM	10+ In-Stock
92037	92037-1539	CLAMP,L=45	8 In-Stock
92045	92045-1045	BEARING-BALL,16005	Usually ships in 7-10 business days
92045A	92045-1152	BEARING-BALL,6806	Usually ships in 7-10 business days
92055	92055-091	RING-O,27.7X2.4	10+ In-Stock
92154	92154-1797	BOLT,FLANGED,6X14	Usually ships in 7-10 business days
92154A	92154-1883	BOLT	Usually ships in 7-10 business days
92154B	92154-2084	BOLT,SOCKET,5X20	Usually ships in 7-10 business days
