2025 Kawasaki Teryx KRX4 1000 Blackout Edition Control OEM Parts Diagram

Submodel KRT1000HSFNL Teryx KRX4 1000 Blackout Edition (2025)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Control

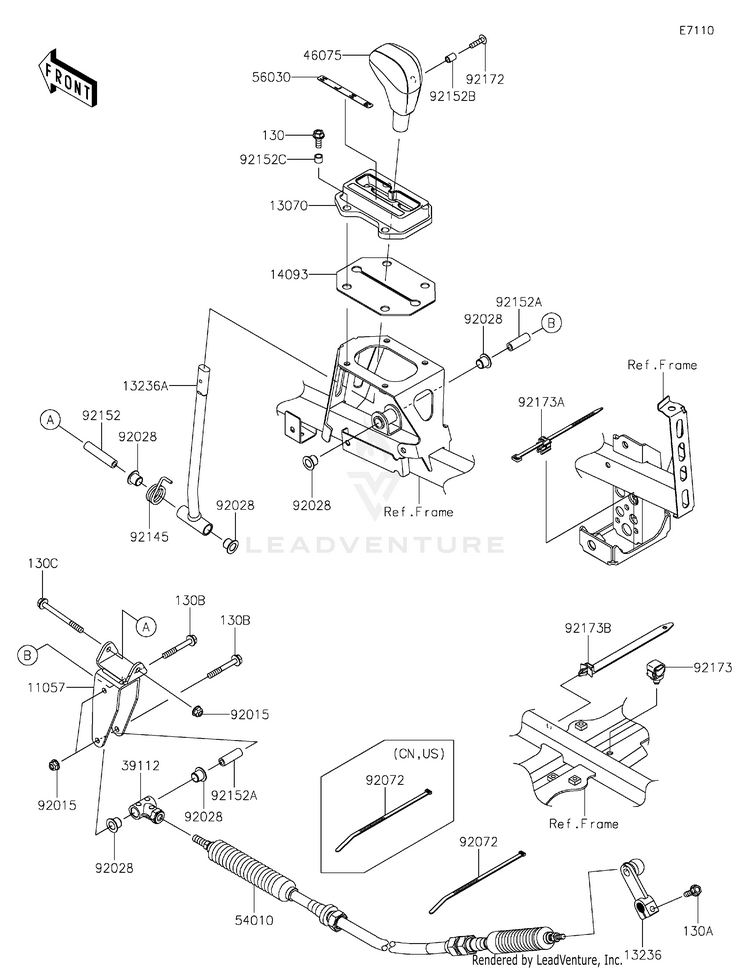

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105711057-7665BRACKET,LEVER
Usually ships in 7-10 business days
130130BB0618BOLT-FLANGED,6X18
10+ In-Stock
1307013070-0894GUIDE
2 In-Stock
130A130CA0620BOLT-FLANGED,6X20
10+ In-Stock
130B130CA0645BOLT-FLANGED,6X45
10+ In-Stock
130C130CA0665BOLT-FLANGED,6X65
Usually ships in 7-10 business days
1323613236-0708LEVER-COMP,CHANGE LEVER
Usually ships in 7-10 business days
13236A13236-0817LEVER-COMP
Usually ships in 7-10 business days
1409314093-1245COVER,HEAT GUARD
Usually ships in 7-10 business days
3911239112-0036RODEND-TIE
Usually ships in 7-10 business days
4607546075-0569GRIP
2 In-Stock
5401054010-0663CABLE
Usually ships in 7-10 business days
5603056030-1421LABEL,POSITION
2 In-Stock
9201592015-1675NUT,LOCK,FLANGED,6MM
10+ In-Stock
9202892028-1507BUSHING
10+ In-Stock
9207292072-3509BAND,L=292.1 | CN,US
9 In-Stock
9214592145-1839SPRING
Usually ships in 7-10 business days
9215292152-1517COLLAR,6.0X10X47
Usually ships in 7-10 business days
92152A92152-1518COLLAR,6.0X10X30
4 In-Stock
92152B92152-1545COLLAR,5.6X8X10.5
2 In-Stock
92152C92152-2863COLLAR,6.8X9.2X8.8
7 In-Stock
9217292172-2081SCREW,5X20
10+ In-Stock
9217392173-0736CLAMP,12MM DIA.
6 In-Stock
92173A92173-1827CLAMP,W/EDGE CLIP,DIA.6-45
Usually ships in 7-10 business days
92173B92173-1980CLAMP
Usually ships in 7-10 business days
