2025 Kawasaki Teryx KRX4 1000 Blackout Edition Guards/Cab Frame OEM Parts Diagram

Submodel KRT1000HSFNL Teryx KRX4 1000 Blackout Edition (2025)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Guards/Cab Frame

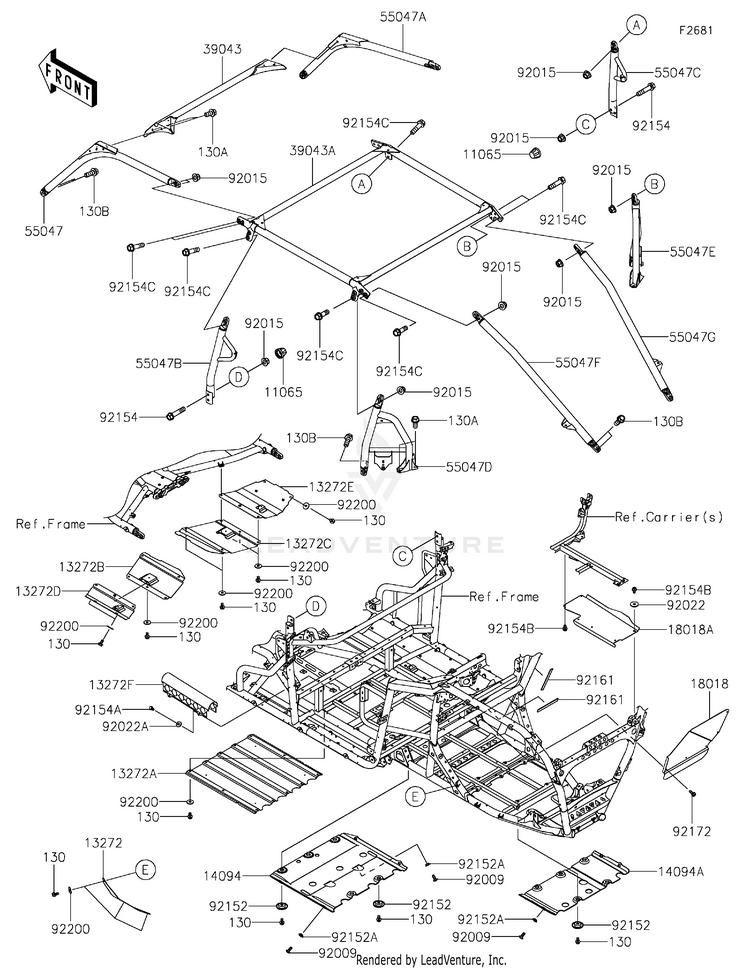

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106511065-0751CAP
Usually ships in 7-10 business days
130130CA0612BOLT-FLANGED,6X12
10+ In-Stock
130A130CA1225BOLT-FLANGED,12X25
10+ In-Stock
130B130CA1235BOLT-FLANGED,12X35
10+ In-Stock
1327213272-3797PLATE,CVT COVER
Usually ships in 7-10 business days
13272A13272-3963PLATE,SKID,CNT
Usually ships in 7-10 business days
13272B13272-4328PLATE,SKID,FR,CNT,LH
Usually ships in 7-10 business days
13272C13272-4329PLATE,SKID,FR,CNT,RH
Usually ships in 7-10 business days
13272D13272-4330PLATE,SKID,FR,LH
Usually ships in 7-10 business days
13272E13272-4331PLATE,SKID,FR,RH
Usually ships in 7-10 business days
13272F13272-7108PLATE,DRIVE SHAFT
Usually ships in 7-10 business days
1409414094-0040COVER,SKID,CNT
Usually ships in 7-10 business days
14094A14094-0041COVER,SKID,RR
Usually ships in 7-10 business days
1801818018-0616PLATE-HEAT GUARD
Usually ships in 7-10 business days
18018A18018-0646PLATE-HEAT GUARD
Usually ships in 7-10 business days
3904339043-0033-388CROSSMEMBER-COMP,FR,T.BLACK
Usually ships in 7-10 business days
39043A39043-0034-388CROSSMEMBER-COMP,RR,T.BLACK
Usually ships in 7-10 business days
5504755047-0399-388BAR-COMP,A-PILLAR,LH,T.BLACK
Usually ships in 7-10 business days
55047A55047-0400-388BAR-COMP,A-PILLAR,RH,T.BLACK
1 In-Stock
55047B55047-0401-388BAR-COMP,B-PILLAR,LH,T.BLACK
Usually ships in 7-10 business days
55047C55047-0402-388BAR-COMP,B-PILLAR,RH,T.BLACK
Usually ships in 7-10 business days
55047D55047-0403-388BAR-COMP,C-PILLAR,LH,T.BLACK
Usually ships in 7-10 business days
55047E55047-0404-388BAR-COMP,C-PILLAR,RH,T.BLACK
Usually ships in 7-10 business days
55047F55047-0405-388BAR-COMP,D-PILLAR,LH,T.BLACK
Usually ships in 7-10 business days
55047G55047-0406-388BAR-COMP,D-PILLAR,RH,T.BLACK
Usually ships in 7-10 business days
9200992009-1166SCREW,TAPPING,6X16
10+ In-Stock
9201592015-1433NUT,LOCK,FLANGED,12MM
10+ In-Stock
9202292022-1690WASHER,6.5X24X2
10+ In-Stock
92022A92022-2247WASHER,6.5X16X1.6
8 In-Stock
9215292152-0784COLLAR
10+ In-Stock
92152A92152-1571COLLAR,6.3X9.5X4.1
10+ In-Stock
9215492154-0836BOLT,FLANGED,12X55
Usually ships in 7-10 business days
92154A92154-2922BOLT,FLANGED,6X12
Usually ships in 7-10 business days
92154B92154-4159BOLT,FLANGED,6X10
Usually ships in 7-10 business days
92154C92154-7076BOLT,FLANGED,12X45
Usually ships in 7-10 business days
9216192161-1964DAMPER,10X85X1
Usually ships in 7-10 business days
9217292172-0869SCREW,TAPPING,6X16
10+ In-Stock
9220092200-0283WASHER,6.5X20X1.6
10+ In-Stock
