2025 Kawasaki Teryx KRX4 1000 eS Front Suspension OEM Parts Diagram

Submodel KRT1000ASFNL Teryx KRX4 1000 eS (2025)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Suspension

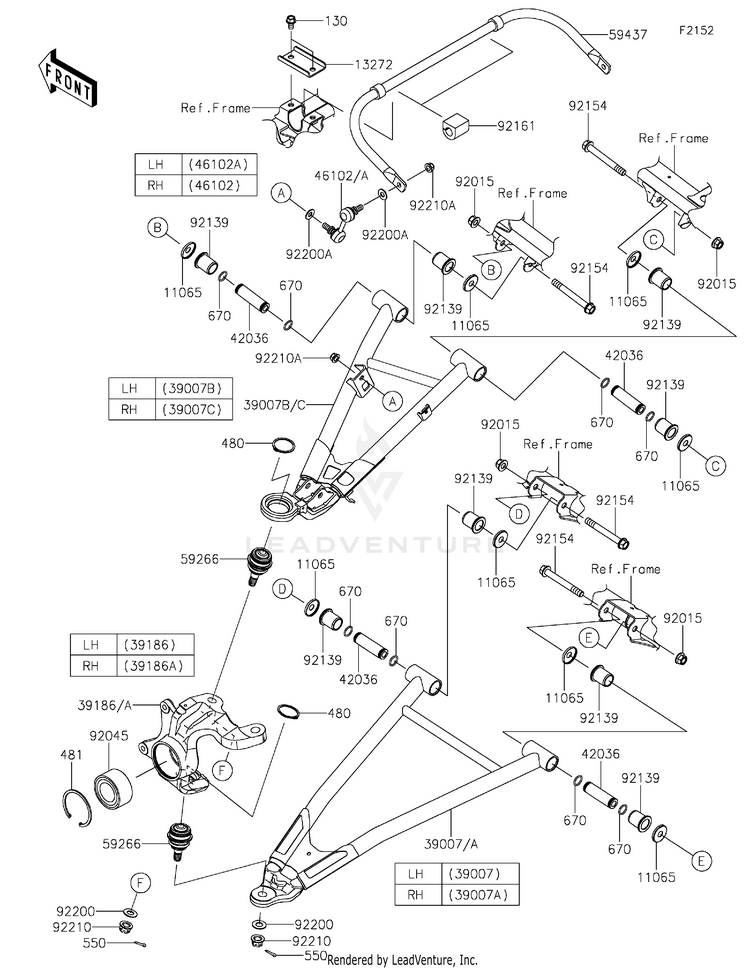

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106511065-0253CAP
10+ In-Stock
130130CA1016BOLT-FLANGED,10X16
4 In-Stock
1327213272-2677PLATE
Usually ships in 7-10 business days
3900739007-0463-75KARM-SUSP,FR,LWR,LH,P.W.BEIGE
Usually ships in 7-10 business days
39007A39007-0464-75KARM-SUSP,FR,LWR,RH,P.W.BEIGE
Usually ships in 7-10 business days
39007B39007-0479-75KARM-SUSP,FR,UPP,LH,P.W.BEIGE
Usually ships in 7-10 business days
39007C39007-0480-75KARM-SUSP,FR,UPP,RH,P.W.BEIGE
Usually ships in 7-10 business days
3918639186-0333KNUCKLE,FR,LH
2 In-Stock
39186A39186-0334KNUCKLE,FR,RH
2 In-Stock
4203642036-0836SLEEVE,12.1X22X76
10+ In-Stock
4610246102-0100ROD,STABILIZER
7 In-Stock
46102A46102-0101ROD,STABILIZER,RH
5 In-Stock
480480J4200CIRCLIP-TYPE-C,42MM
10+ In-Stock
481481J7500CIRCLIP-TYPE-C
9 In-Stock
550550AA3025PIN-COTTER,3.0X25
10+ In-Stock
5926659266-0738JOINT-BALL
10+ In-Stock
5943759437-0025STABILIZER,FR
Usually ships in 7-10 business days
670670B2018O RING,18MM
10+ In-Stock
9201592015-1433NUT,LOCK,FLANGED,12MM
10+ In-Stock
9204592045-0919BEARING-BALL,40X74X36
8 In-Stock
9213992139-0937BUSHING
10+ In-Stock
9215492154-1318BOLT,FLANGED,12X100
10+ In-Stock
9216192161-2413DAMPER
6 In-Stock
9220092200-0217WASHER,14.2X28X1.5
10+ In-Stock
92200A92200-0724WASHER,10.3X23X1.6
10+ In-Stock
9221092210-0104NUT,CASTLE,14MM
10+ In-Stock
92210A92210-1080NUT,LOCK,FLANGED,10MM
10+ In-Stock
