2025 Kawasaki Teryx KRX4 1000 eS Water Pipe OEM Parts Diagram

Submodel KRT1000ASFNL Teryx KRX4 1000 eS (2025)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Water Pipe

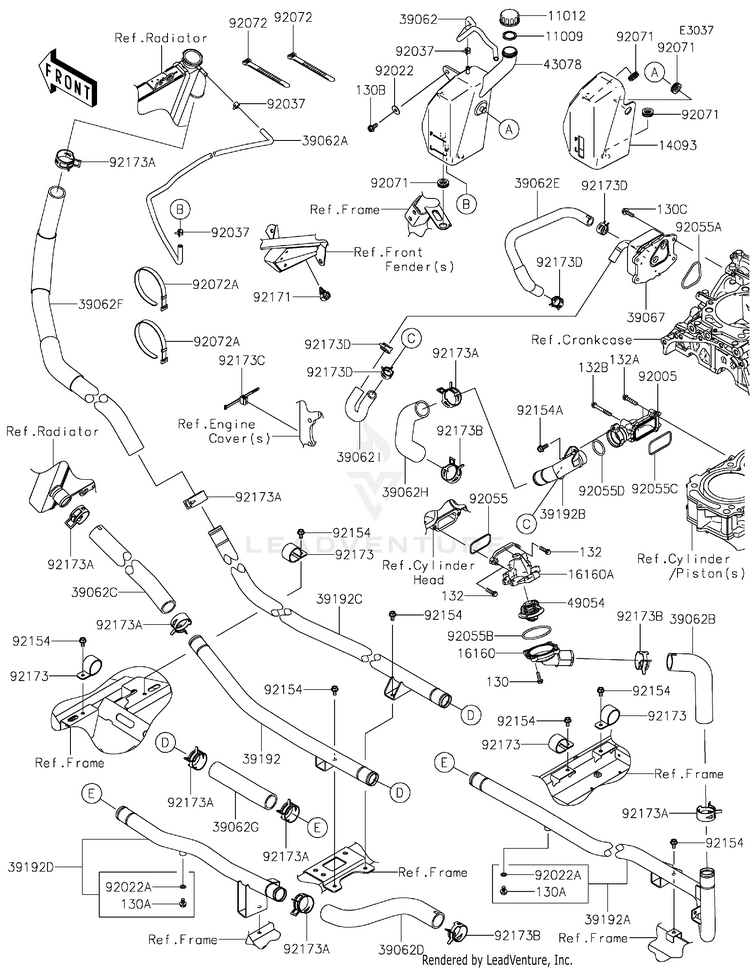

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1145GASKET,RESERVOIR TANK CAP
3 In-Stock
1101211012-1084CAP
10+ In-Stock
1409314093-0847COVER,RESERVOIR
Usually ships in 7-10 business days
1616016160-0805BODY
Usually ships in 7-10 business days
16160A16160-0806BODY
Usually ships in 7-10 business days
3906239062-0830HOSE-COOLING,OVERFLOW
Usually ships in 7-10 business days
39062A39062-0831HOSE-COOLING,RAD-RESERVOIR
Usually ships in 7-10 business days
39062B39062-0833HOSE-COOLING,ENGINE-PIPE(RH)
Usually ships in 7-10 business days
39062C39062-0835HOSE-COOLING,RADIATOR-PIPE(LH)
Usually ships in 7-10 business days
39062D39062-0836HOSE-COOLING,PIPE(LH)-W/PUMP
Usually ships in 7-10 business days
39062E39062-0838HOSE-COOLING,OIL COOLER-W/PUMP
Usually ships in 7-10 business days
39062F39062-0870HOSE-COOLING,RADIATOR-PIPE(RH)
Usually ships in 7-10 business days
39062G39062-0935HOSE-COOLING,PIPE-WATER JOINT
Usually ships in 7-10 business days
39062H39062-0936HOSE-COOLING,W/PUMP-ENGINE
1 In-Stock
39062I39062-0937HOSE-COOLING,ENGINE-OIL COOLER
Usually ships in 7-10 business days
3906739067-0031COOLER-OIL
Usually ships in 7-10 business days
3919239192-0684PIPE-WATER,FR(LH)
Usually ships in 7-10 business days
39192A39192-0686PIPE-WATER,RR(RH)
Usually ships in 7-10 business days
39192B39192-0688PIPE-WATER
Usually ships in 7-10 business days
39192C39192-0699PIPE-WATER,FR(RH)
Usually ships in 7-10 business days
39192D39192-0701PIPE-WATER,RR(LH)
Usually ships in 7-10 business days
4307843078-0602RESERVOIR
Usually ships in 7-10 business days
4905449054-0004THERMOSTAT
10+ In-Stock
9200592005-1432FITTING
Usually ships in 7-10 business days
9202292022-165WASHER,PLAIN,6.5X20X1
6 In-Stock
92022A92022-304WASHER,6.2X11X1
10+ In-Stock
9203792037-1461CLAMP,TUBE
8 In-Stock
9205592055-0021RING-O,YP 27.6 57.6 1.9
7 In-Stock
92055A92055-0752RING-O,46.4X3.1
Usually ships in 7-10 business days
92055B92055-0831RING-O,53.5X2.6
7 In-Stock
92055C92055-0923RING-O,FITTING
Usually ships in 7-10 business days
92055D92055-1726RING-O
Usually ships in 7-10 business days
9207192071-1115GROMMET
Usually ships in 7-10 business days
9207292072-030BAND,L=123
7 In-Stock
92072A92072-056BAND,L=186
10+ In-Stock
9215492154-1195BOLT,FLANGED,6X12
Usually ships in 7-10 business days
92154A92154-1893BOLT,FLANGED-SMALL,6X16
Usually ships in 7-10 business days
9217192171-1415CLAMP,13MM DIA.
Usually ships in 7-10 business days
9217392173-1204CLAMP
Usually ships in 7-10 business days
92173A92173-1205CLAMP,28.6MM
5 In-Stock
