2026 Kawasaki Brute Force 750 SE EPS Camo Radiator OEM Parts Diagram

Submodel KVF750STFNN Brute Force 750 SE EPS (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Radiator

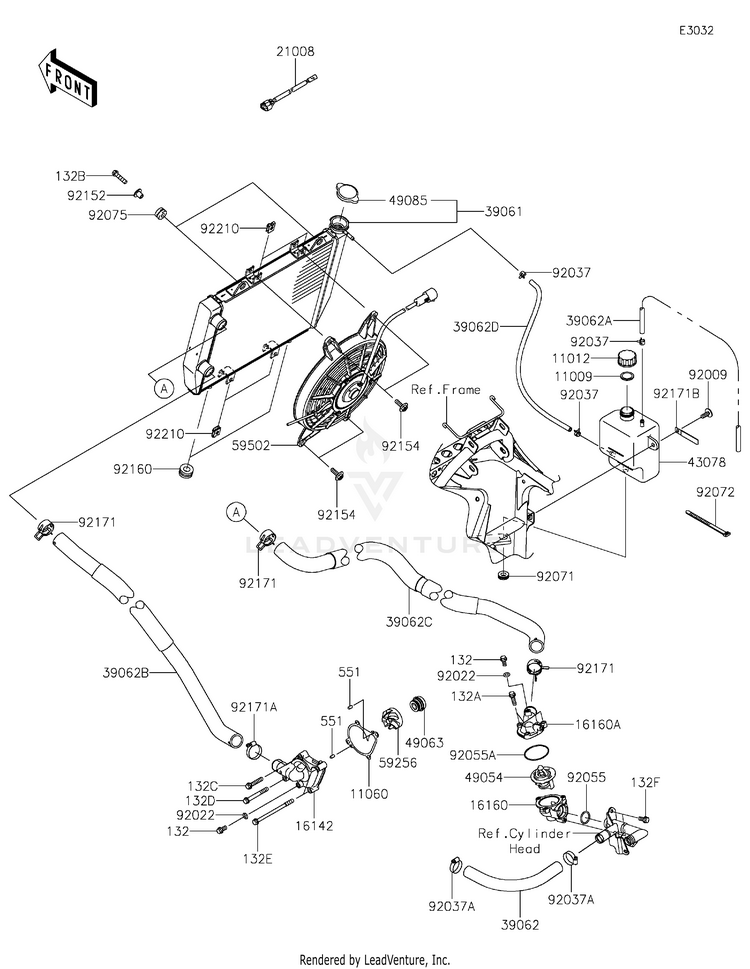

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1145GASKET,RESERVOIR TANK CAP
3 In-Stock
1101211012-1084CAP
10+ In-Stock
1106011060-1964GASKET,WATER PUMP
10+ In-Stock
132132BA0612BOLT-FLANGED-SMALL,6X12
10+ In-Stock
132A132BA0620BOLT-FLANGED-SMALL,6X20
10+ In-Stock
132B92153-1148

(replaces part #
132BA0625)

BOLT,6X25
10+ In-Stock
132C132BA0630BOLT-FLANGED-SMALL,6X30
10+ In-Stock
132D132BA0650BOLT-FLANGED-SMALL,6X50
9 In-Stock
1614216142-0069COVER-PUMP,WATER
Usually ships in 7-10 business days
1616016160-0189BODY,THERMOSTAT,LWR
Usually ships in 7-10 business days
16160A16160-0778BODY,THERMOSTAT,UPP
Usually ships in 7-10 business days
2100821008-0555BREAKER,FAN MOTOR
Usually ships in 7-10 business days
3906139061-0996RADIATOR-ASSY
Usually ships in 7-10 business days
3906239062-0316HOSE-COOLING,FR HEAD-THERMO
Usually ships in 7-10 business days
39062A39062-0321HOSE-COOLING,5X9X800
Usually ships in 7-10 business days
39062B39062-0587HOSE-COOLING,RADIATOR-PUMP
3 In-Stock
39062C39062-0630HOSE-COOLING,THERMO-RADIATOR
Usually ships in 7-10 business days
39062D39062-0631HOSE-COOLING,5X9X410
Usually ships in 7-10 business days
4307843078-0070RESERVOIR
Usually ships in 7-10 business days
4905449054-1055THERMOSTAT
6 In-Stock
4906349063-1055SEAL-MECHANICAL
10+ In-Stock
4908549085-0005CAP-ASSY-PRESSURE
3 In-Stock
5925659256-1069IMPELLER
9 In-Stock
5950259502-0554FAN-ASSY
Usually ships in 7-10 business days
9200992009-1694SCREW,6X16
10+ In-Stock
9202292022-304WASHER,6.2X11X1
10+ In-Stock
9203792037-1461CLAMP,TUBE
8 In-Stock
92037A92037-1589CLAMP,COOLING HOSE
10+ In-Stock
92055670B2022

(replaces part #
92055-1081)

O RING,22MM
10+ In-Stock
92055A92055-1279RING-O,44.7X2.4
10+ In-Stock
9207192071-1115GROMMET
Usually ships in 7-10 business days
9207292072-031BAND,L=149
6 In-Stock
9207592075-209DAMPER
10+ In-Stock
9215292152-2852COLLAR
Usually ships in 7-10 business days
9215492154-0741BOLT,6X12
Usually ships in 7-10 business days
9216092160-1007DAMPER
6 In-Stock
9217192171-0060CLAMP,COOLING HOSE
10+ In-Stock
92171A92171-0179CLAMP
10+ In-Stock
92171B92171-0652CLAMP,L=60
10+ In-Stock
9221092210-1323NUT
10+ In-Stock
