2026 Kawasaki KLR650 Adventure ABS Handlebar OEM Parts Diagram

Submodel KL650HTFNL KLR650 Adventure ABS (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Handlebar

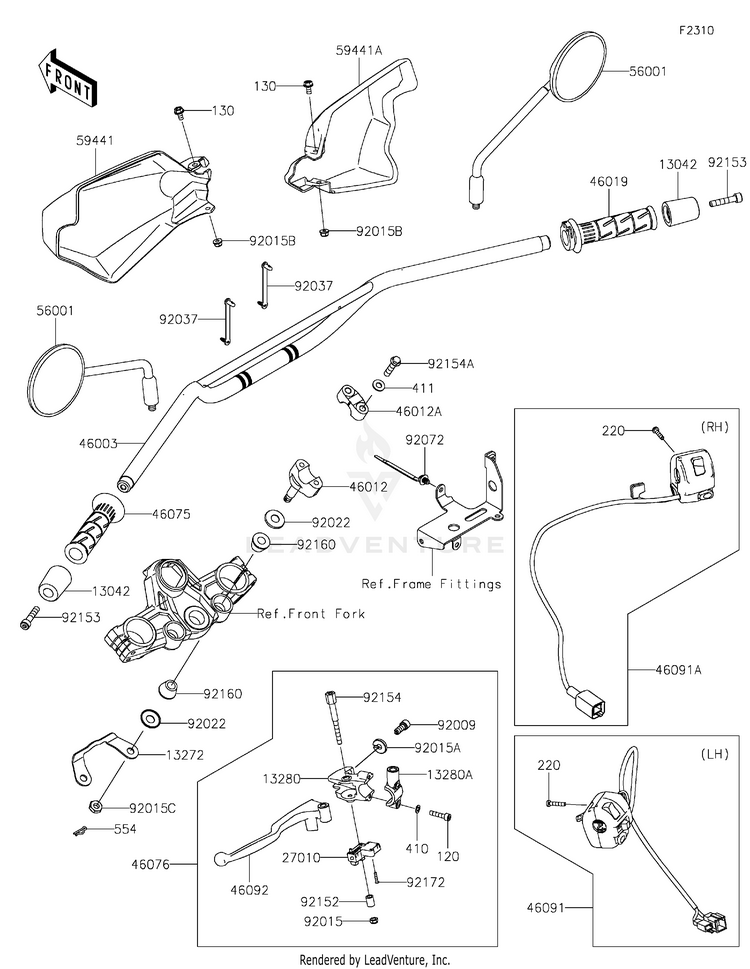

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
120120CB0625BOLT-SOCKET,6X25
Usually ships in 7-10 business days
130130BB0612BOLT-FLANGED,6X12
10+ In-Stock
1304213042-5007WEIGHT,HANDLE
Usually ships in 7-10 business days
1327213272-3799PLATE,STABILIZER
Usually ships in 7-10 business days
1328013280-0929HOLDER,LEVER
3 In-Stock
13280A13280-0930HOLDER,MIRROR
9 In-Stock
220220AB0525SCREW-PAN-CROS,5X25
8 In-Stock
2701027010-0729SWITCH,CLUTCH
4 In-Stock
410410AB0600WASHER-PLAIN-SMALL,6MM
1 In-Stock
411411AB0800WASHER-PLAIN,8.5X18X1.6
2 In-Stock
4600346003-0793HANDLE
2 In-Stock
4601246012-0075-18RHOLDER-HANDLE,LWR,F.S.BLACK
6 In-Stock
46012A46012-0380-18RHOLDER-HANDLE,UPP,F.S.BLACK
Usually ships in 7-10 business days
4601946019-0060GRIP-ASSY,THROTTLE
3 In-Stock
4607546075-0564GRIP,HANDLE,LH
3 In-Stock
4607646076-0183LEVER-ASSY-GRIP
Usually ships in 7-10 business days
4609146091-0552HOUSING-ASSY-CONTROL,LH
Usually ships in 7-10 business days
46091A46091-0553HOUSING-ASSY-CONTROL,RH
Usually ships in 7-10 business days
4609246092-0583LEVER-GRIP,CLUTCH
10+ In-Stock
554554DA0800PIN-SNAP
10+ In-Stock
5600156001-0444MIRROR-ASSY
4 In-Stock
5944159441-0304-6CCOVER-HANDLE,LH,EBONY
Usually ships in 7-10 business days
59441A59441-0307-6CCOVER-HANDLE,RH,EBONY
9 In-Stock
9200992009-1134SCREW,CABLE ADJUST,8MM,BLACK
4 In-Stock
9201592210-0006

(replaces part #
92015-1191)

NUT,LOCK,6MM
3 In-Stock
92015A92015-1197NUT,CABLE ADJUST LOCK,8MM,BLK
3 In-Stock
92015B92015-1603NUT,LOCK,FLANGED,6MM
10+ In-Stock
92015C92210-1184

(replaces part #
92015-1962)

NUT,LOCK,10MM
10+ In-Stock
9202292022-1737WASHER
10+ In-Stock
9203792037-1163CLAMP,SPEED,L=58
10+ In-Stock
9207292072-1414BAND,OS170-FT7(BLACK)
10+ In-Stock
9215292152-2848COLLAR,6.5X10.5X14
Usually ships in 7-10 business days
9215392153-1901BOLT,SOCKET,8X40
6 In-Stock
9215492154-2359BOLT
Usually ships in 7-10 business days
92154A92154-3964BOLT,FLANGED,8X35
Usually ships in 7-10 business days
9216092160-1544DAMPER,HANDLE HOLDER
10+ In-Stock
9217292172-0183SCREW,3X16
10+ In-Stock
