2026 Kawasaki KLR650 Adventure ABS Seat OEM Parts Diagram

Submodel KL650HTFAL KLR650 Adventure ABS (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Seat

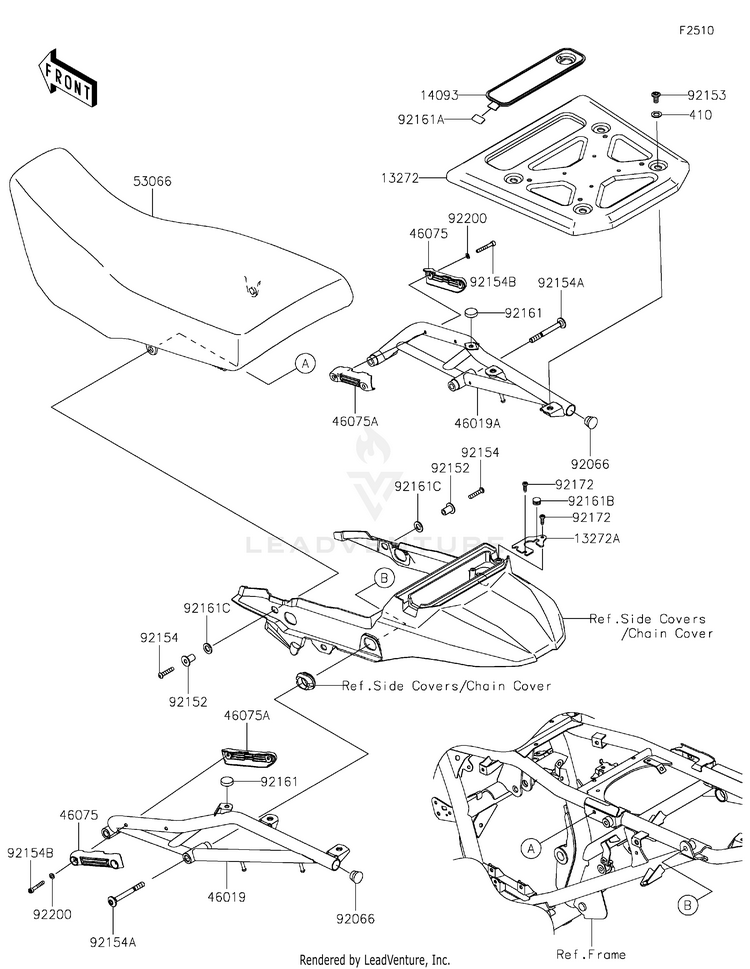

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1327213272-3763PLATE,CARRIER
Usually ships in 7-10 business days
13272A13272-3872PLATE
Usually ships in 7-10 business days
1409314093-1079COVER,TOOL
Usually ships in 7-10 business days
410410AA1000WASHER-PLAIN-SMALL,10MM
10+ In-Stock
4601946019-0107GRIP-ASSY,LH
Usually ships in 7-10 business days
46019A46019-0108GRIP-ASSY,RH
Usually ships in 7-10 business days
4607546075-0659GRIP,OUTSIDE
Usually ships in 7-10 business days
46075A46075-0660GRIP,INSIDE
Usually ships in 7-10 business days
5306653066-0703-64USEAT-ASSY,DUAL,BLACK+SIL
1 In-Stock
9206692066-1220PLUG
6 In-Stock
9215292152-2823COLLAR
10+ In-Stock
9215392153-1810BOLT,SOCKET,8X15
6 In-Stock
9215492154-0206BOLT,SOCKET,6X30
10+ In-Stock
92154A92154-4346BOLT,SOCKET,8X78
Usually ships in 7-10 business days
92154B92154-4350BOLT,SOCKET,5X35
Usually ships in 7-10 business days
9216192161-0336DAMPER
10+ In-Stock
92161A92161-1367DAMPER,12X23
4 In-Stock
92161B92161-1666DAMPER,8X14X8.9
1 In-Stock
92161C92161-2425DAMPER
10+ In-Stock
9217292172-1425SCREW,TAPPING,5X16
Usually ships in 7-10 business days
9220092200-2495WASHER,5.5X10X1.2
Usually ships in 7-10 business days
