2026 Kawasaki KLR650 Adventure ABS Valve(S) OEM Parts Diagram

Submodel KL650HTFAL KLR650 Adventure ABS (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Valve(s)

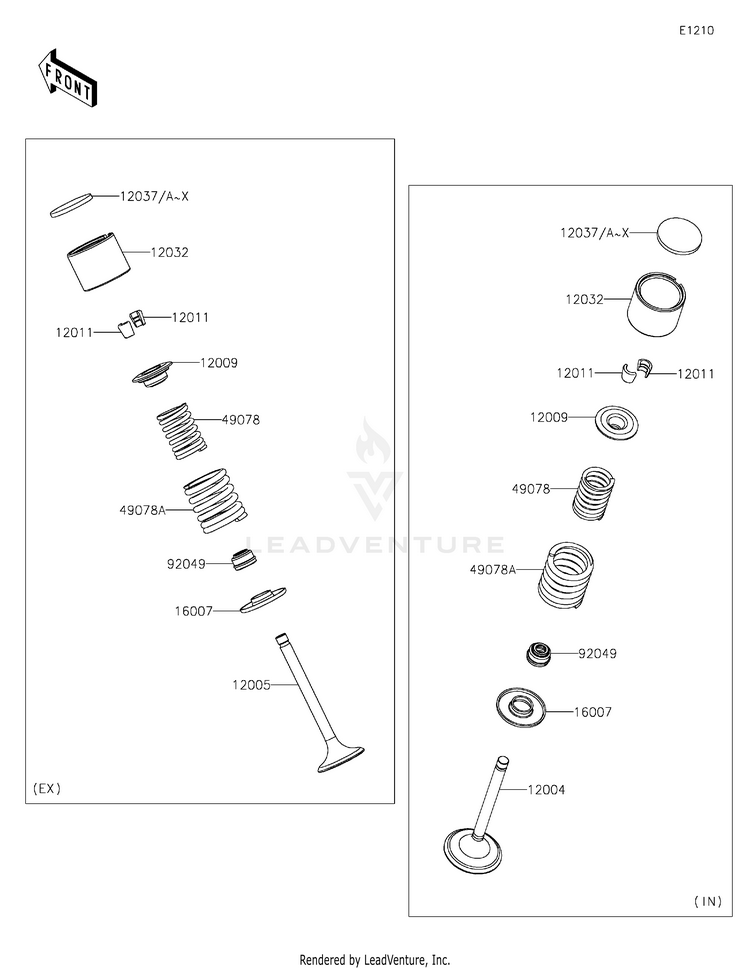

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1200412004-0727VALVE-INTAKE
4 In-Stock
1200512005-0740VALVE-EXHAUST
2 In-Stock
1200912009-005RETAINER-VALVE SPRING
Usually ships in 7-10 business days
1201112011-004COLLET,RETAINER
10+ In-Stock
1203212032-1002TAPPET
Usually ships in 7-10 business days
1203712037-001SHIM,T=2.00
Usually ships in 7-10 business days
12037A12037-002SHIM,T=2.05
Usually ships in 7-10 business days
12037B12037-003SHIM,T=2.10
Usually ships in 7-10 business days
12037C12037-004SHIM,T=2.15
Usually ships in 7-10 business days
12037D12037-005SHIM,T=2.20
Usually ships in 7-10 business days
12037E12037-006SHIM,T=2.25
Usually ships in 7-10 business days
12037F12037-007SHIM,T=2.30
2 In-Stock
12037G12037-008SHIM,T=2.35
1 In-Stock
12037H12037-009SHIM,T=2.40
6 In-Stock
12037I12037-010SHIM,T=2.45
4 In-Stock
12037J12037-011SHIM,T=2.50
3 In-Stock
12037K12037-012SHIM,T=2.55
5 In-Stock
12037L12037-013SHIM,T=2.60
7 In-Stock
12037M12037-014SHIM,T=2.65
Usually ships in 7-10 business days
12037N12037-015SHIM,T=2.70
Usually ships in 7-10 business days
12037O12037-016SHIM,T=2.75
Usually ships in 7-10 business days
12037P12037-017SHIM,T=2.80
Usually ships in 7-10 business days
12037Q12037-018SHIM,T=2.85
Usually ships in 7-10 business days
12037R12037-019SHIM,T=2.90
Usually ships in 7-10 business days
12037S12037-020SHIM,T=2.95
Usually ships in 7-10 business days
12037T12037-021SHIM,T=3.00
Usually ships in 7-10 business days
12037U12037-022SHIM,T=3.05
Usually ships in 7-10 business days
12037V12037-023SHIM,T=3.10
Usually ships in 7-10 business days
12037W12037-024SHIM,T=3.15
Usually ships in 7-10 business days
12037X12037-025SHIM,T=3.20
1 In-Stock
1600716007-1024SEAT-SPRING,VALVE
10+ In-Stock
4907849078-1065SPRING-ENGINE VALVE,INNER
10+ In-Stock
49078A49078-1066SPRING-ENGINE VALVE,OUTER
10+ In-Stock
9204992049-016SEAL-OIL,RV37129.5
10+ In-Stock
