2026 Kawasaki MULE Pro-FXT 820 EPS Frame OEM Parts Diagram

Submodel KAT820BTFNL Mule PRO-FXT 820 (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Frame

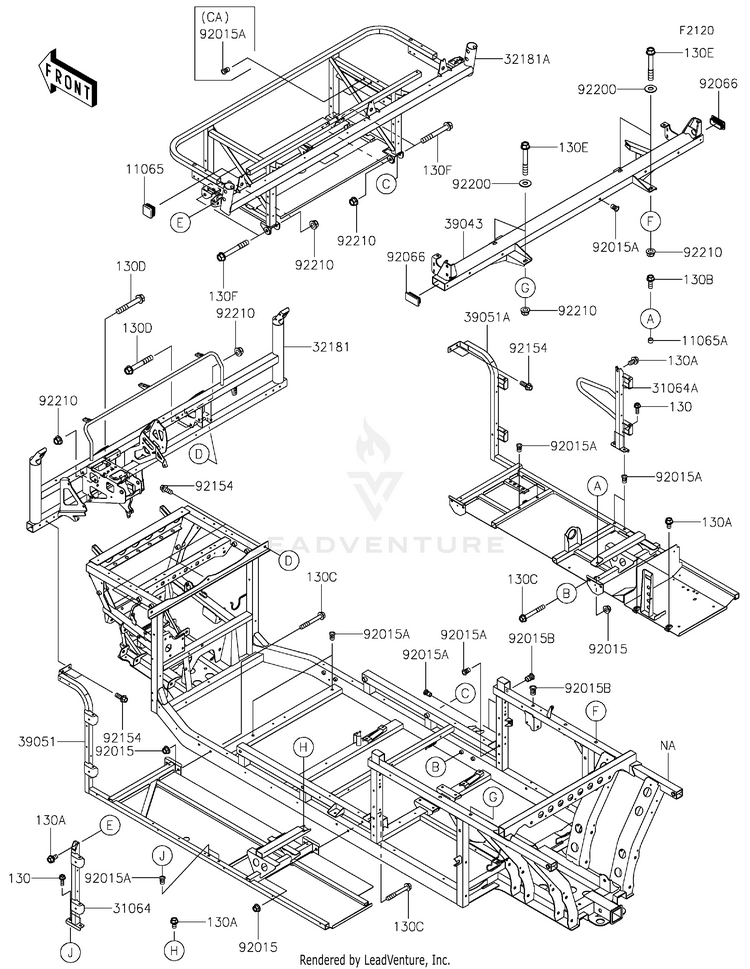

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106511065-0901CAP
Usually ships in 7-10 business days
11065A11065-7504CAP
7 In-Stock
130130BA0618BOLT-FLANGED,6X18
8 In-Stock
130A130BA0814BOLT-FLANGED,8X14
10+ In-Stock
130B130BA0822BOLT-FLANGED,8X22
Usually ships in 7-10 business days
130C130BA0860BOLT-FLANGED,8X60
5 In-Stock
130D130BA1065BOLT-FLANGED,10X65
Usually ships in 7-10 business days
130E130BA1070BOLT-FLANGED,10X70
Usually ships in 7-10 business days
130F130CA1075BOLT-FLANGED,10X75
Usually ships in 7-10 business days
3106431064-0704PIPE-COMP,RR DOOR HINGE,LH
Usually ships in 7-10 business days
31064A31064-0705PIPE-COMP,RR DOOR HINGE,RH
Usually ships in 7-10 business days
3218132181-0092FRAME-SUB-COMP,DASH PANEL
Usually ships in 7-10 business days
32181A32181-0102FRAME-SUB-COMP,SEAT
Usually ships in 7-10 business days
3904339043-0025CROSSMEMBER-COMP,C PILLAR
Usually ships in 7-10 business days
3905139051-0049FRAME-COMP-SIDE,LH
Usually ships in 7-10 business days
39051A39051-0050FRAME-COMP-SIDE,RH
Usually ships in 7-10 business days
9201592015-1432NUT,8MM
10+ In-Stock
92015A92015-1791NUT,POP,6MM,L=15 | US
10+ In-Stock
92015B92015-1793NUT,POP,8MM,L=16.5
9 In-Stock
9206692066-7505PLUG
Usually ships in 7-10 business days
9215492154-1226BOLT,FLANGED,8X20
Usually ships in 7-10 business days
9220092200-1595WASHER,10.5X25X1.6
10+ In-Stock
9221092210-0276NUT,LOCK,FLANGED,10MM
10+ In-Stock
