2026 Kawasaki Ninja 1100SX (ABS) Valve(S) OEM Parts Diagram

Submodel ZX1100HTFNL Ninja 1100SX (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Valve(s)

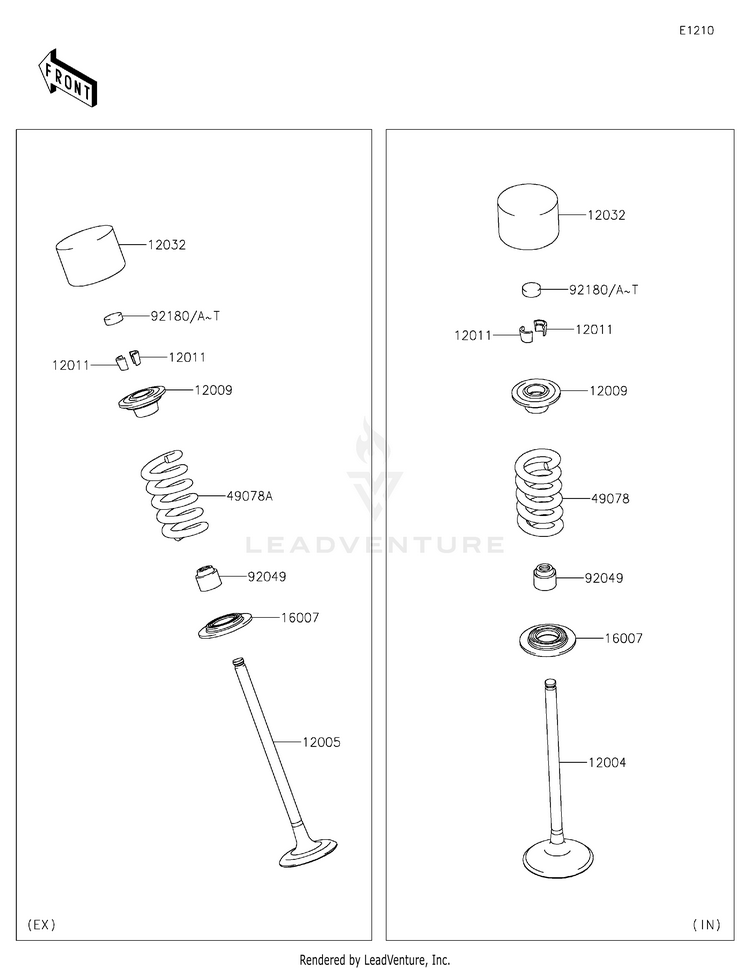

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1200412004-0747VALVE-INTAKE
Usually ships in 7-10 business days
1200512005-0768VALVE-EXHAUST
Usually ships in 7-10 business days
1200912009-1091RETAINER-VALVE SPRING
8 In-Stock
1201112011-1053COLLET
10+ In-Stock
1203212032-0009TAPPET
Usually ships in 7-10 business days
1600716007-0034SEAT-SPRING
Usually ships in 7-10 business days
4907849078-0817SPRING-ENGINE VALVE,INTAKE
Usually ships in 7-10 business days
49078A49078-0818SPRING-ENGINE VALVE,EXHAUST
Usually ships in 7-10 business days
9204992049-1349SEAL-OIL,VSB 4.3 7.5 5.3 8.3
10+ In-Stock
9218092180-1014SHIM,T=2.50
Usually ships in 7-10 business days
92180A92180-1016SHIM,T=2.55
Usually ships in 7-10 business days
92180B92180-1018SHIM,T=2.60
Usually ships in 7-10 business days
92180C92180-1020SHIM,T=2.65
Usually ships in 7-10 business days
92180D92180-1022SHIM,T=2.70
Usually ships in 7-10 business days
92180E92180-1024SHIM,T=2.75
Usually ships in 7-10 business days
92180F92180-1026SHIM,T=2.80
Usually ships in 7-10 business days
92180G92180-1028SHIM,T=2.85
Usually ships in 7-10 business days
92180H92180-1030SHIM,T=2.90
Usually ships in 7-10 business days
92180I92180-1032SHIM,T=2.95
1 In-Stock
92180J92180-1034SHIM,T=3.00
Usually ships in 7-10 business days
92180K92180-1036SHIM,T=3.05
Usually ships in 7-10 business days
92180L92180-1038SHIM,T=3.10
Usually ships in 7-10 business days
92180M92180-1040SHIM,T=3.15
Usually ships in 7-10 business days
92180N92180-1042SHIM,T=3.20
Usually ships in 7-10 business days
92180O92180-1044SHIM,T=3.25
Usually ships in 7-10 business days
92180P92180-1046SHIM,T=3.30
Usually ships in 7-10 business days
92180Q92180-1048SHIM,T=3.35
Usually ships in 7-10 business days
92180R92180-1050SHIM,T=3.40
Usually ships in 7-10 business days
92180S92180-1052SHIM,T=3.45
Usually ships in 7-10 business days
92180T92180-1054SHIM,T=3.50
Usually ships in 7-10 business days
