2026 Kawasaki Ridge 1000 HVAC Camo Carrier(S) OEM Parts Diagram

Submodel KWF1000TTFAL RIDGE HVAC Camo (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Carrier(s)

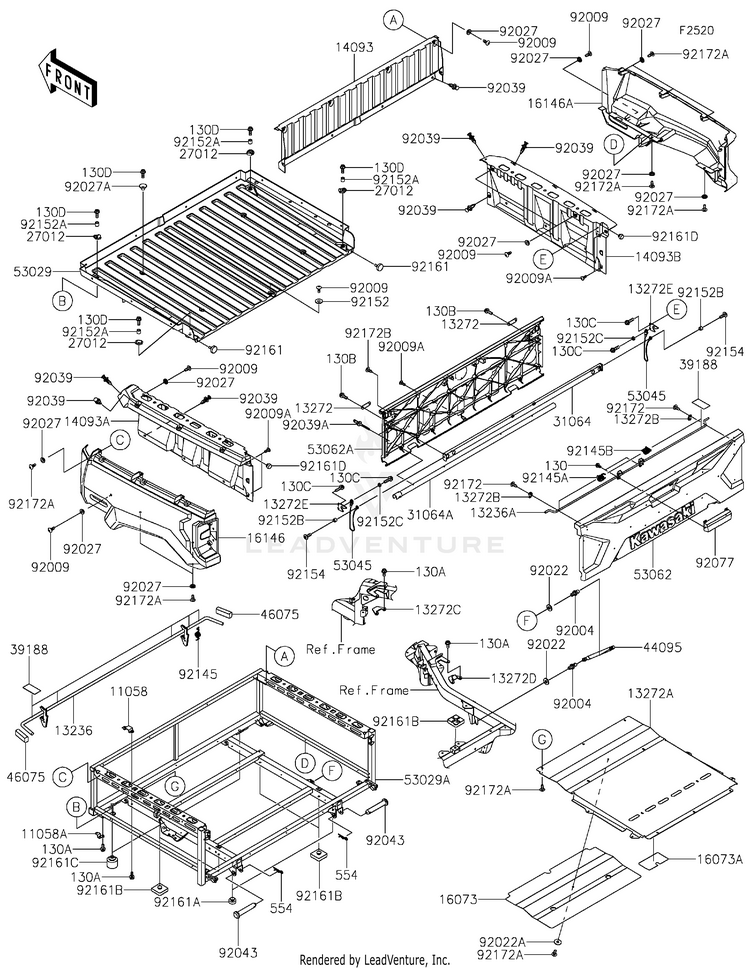

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105811058-0092BRACKET,CARRIER LATCH
Usually ships in 7-10 business days
11058A11058-0675BRACKET
Usually ships in 7-10 business days
1323613236-0874LEVER-COMP,CARRIER LATCH
Usually ships in 7-10 business days
13236A13236-0891LEVER-COMP
Usually ships in 7-10 business days
1327213272-4064PLATE
Usually ships in 7-10 business days
13272A13272-4065PLATE,HEAT INSULATOR
Usually ships in 7-10 business days
13272B13272-4178PLATE
Usually ships in 7-10 business days
13272C13272-4185PLATE,CARRIER LATCH,LH
Usually ships in 7-10 business days
13272D13272-7017PLATE,CARRIER LATCH,RH
Usually ships in 7-10 business days
13272E13272-7074PLATE,TAIL GATE LATCH
Usually ships in 7-10 business days
1409314093-1311COVER,FRONT CARRIER
Usually ships in 7-10 business days
14093A14093-1314COVER,SIDE CARRIER,INNER,LH
Usually ships in 7-10 business days
14093B14093-1315COVER,SIDE CARRIER,INNER,RH
Usually ships in 7-10 business days
1607316073-0948INSULATOR,HEAT,FR
Usually ships in 7-10 business days
16073A16073-0962INSULATOR,HEAT,RR
Usually ships in 7-10 business days
1614616146-0922COVER-ASSY,SIDE CARRIER,OUT,LH
1 In-Stock
16146A16146-0923COVER-ASSY,SIDE CARRIER,OUT,RH
Usually ships in 7-10 business days
2701227012-0900HOOK,CARRIER BOTTOM
Usually ships in 7-10 business days
3106431064-0843PIPE-COMP,TAIL GATE,UPP
Usually ships in 7-10 business days
31064A31064-0861PIPE-COMP,TAIL GATE,LWR
Usually ships in 7-10 business days
3918839188-0612TAPE,25X47X0.18
Usually ships in 7-10 business days
4409544095-0002DAMPER-GAS FILLED
Usually ships in 7-10 business days
4607546075-0672GRIP,CARRIER LATCH
Usually ships in 7-10 business days
5302953029-0374CARRIER,BOTTOM
Usually ships in 7-10 business days
53029A53029-0436CARRIER,BASE
Usually ships in 7-10 business days
5304553045-0044HOOK-ASSY,TAIL GATE
Usually ships in 7-10 business days
5306253062-0030GATE-TAIL
Usually ships in 7-10 business days
53062A53062-0031GATE-TAIL,INNER
1 In-Stock
9200492004-0733STUD
Usually ships in 7-10 business days
9200992009-1166SCREW,TAPPING,6X16
10+ In-Stock
92009A92009-1197SCREW,TAPPING,5X14
10+ In-Stock
9202292022-1533WASHER,8.2X19X2
10+ In-Stock
92022A92022-165WASHER,PLAIN,6.5X20X1
6 In-Stock
9202792027-1168COLLAR,L=4.6
10+ In-Stock
92027A92027-1767COLLAR
6 In-Stock
9203992039-0865

(replaces part #
92039-0776)

RIVET
10+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$5.9910+ In-Stock
92039A92039-0856RIVET,6.35X17.9
Usually ships in 7-10 business days
9204392043-0716PIN,12.4X72.4
Usually ships in 7-10 business days
9207792077-0041KNOB,TAIL GATE
Usually ships in 7-10 business days
9214592145-2268SPRING
Usually ships in 7-10 business days
