2026 Kawasaki Ridge 1000 HVAC Camo Front Suspension OEM Parts Diagram

Submodel KWF1000TTFAL RIDGE HVAC Camo (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Front Suspension

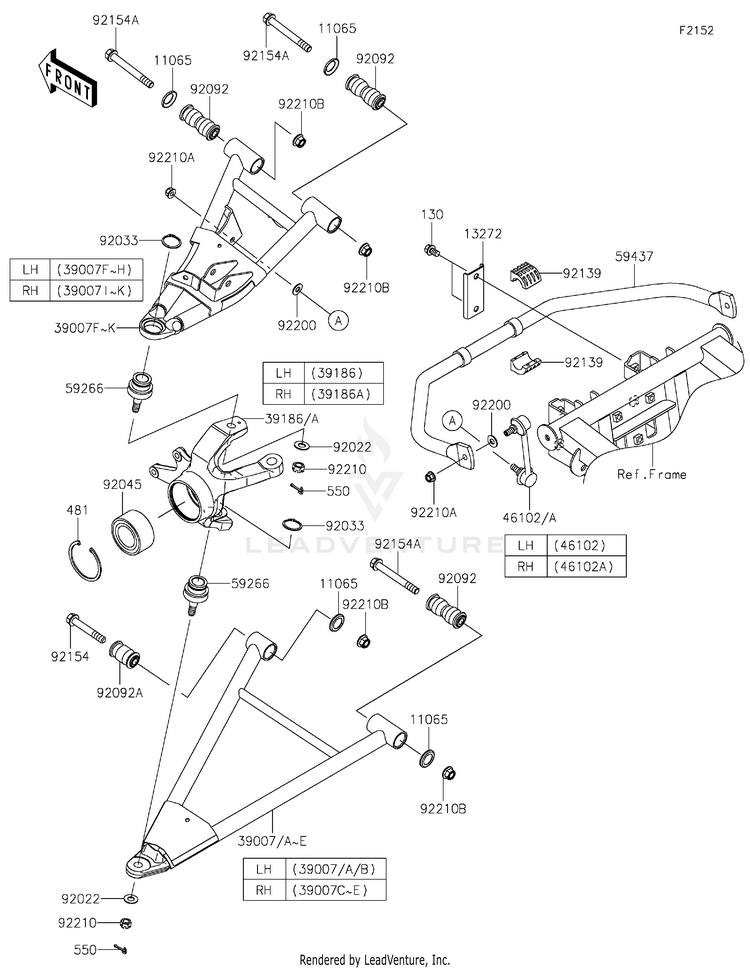

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1106511065-0838CAP,ARM
10+ In-Stock
130130CA1016BOLT-FLANGED,10X16
4 In-Stock
1327213272-7216PLATE,FR STABILIZER
Usually ships in 7-10 business days
3900739007-0489-10ARM-SUSP,FR,LWR,LH,BLACK
Usually ships in 7-10 business days
39007A39007-0489-72DARM-SUSP,FR,LWR,LH,P.I.GRAY
Usually ships in 7-10 business days
39007B39007-0489-75KARM-SUSP,FR,LWR,LH,P.W.BEIGE
Usually ships in 7-10 business days
39007C39007-0490-10ARM-SUSP,FR,LWR,RH,BLACK
Usually ships in 7-10 business days
39007D39007-0490-72DARM-SUSP,FR,LWR,RH,P.I.GRAY
Usually ships in 7-10 business days
39007E39007-0490-75KARM-SUSP,FR,LWR,RH,P.W.BEIGE
Usually ships in 7-10 business days
39007F39007-0528-10ARM-SUSP,FR,UPP,LH,BLACK
Usually ships in 7-10 business days
39007G39007-0528-72DARM-SUSP,FR,UPP,LH,P.I.GRAY
Usually ships in 7-10 business days
39007H39007-0528-75KARM-SUSP,FR,UPP,LH,P.W.BEIGE
Usually ships in 7-10 business days
39007I39007-0529-10ARM-SUSP,FR,UPP,RH,BLACK
Usually ships in 7-10 business days
39007J39007-0529-72DARM-SUSP,FR,UPP,RH,P.I.GRAY
Usually ships in 7-10 business days
39007K39007-0529-75KARM-SUSP,FR,UPP,RH,P.W.BEIGE
Usually ships in 7-10 business days
3918639186-0335KNUCKLE,FR,LH
Usually ships in 7-10 business days
39186A39186-0336KNUCKLE,FR,RH
Usually ships in 7-10 business days
4610246102-0689ROD,STABILIZER,LH
Usually ships in 7-10 business days
46102A46102-0690ROD,STABILIZER,RH
Usually ships in 7-10 business days
481481J7500CIRCLIP-TYPE-C
9 In-Stock
550550AA3025PIN-COTTER,3.0X25
10+ In-Stock
5926659266-0711JOINT-BALL
7 In-Stock
AFTERMARKET ALTERNATIVE
$43.99$34.9910+ In-Stock
5943759437-0036STABILIZER,FR
Usually ships in 7-10 business days
9202292022-1831WASHER
9 In-Stock
9203392033-1262RING-SNAP,C-TYPE,32MM
10+ In-Stock
9204592045-0919BEARING-BALL,40X74X36
8 In-Stock
9209292092-0028BUSHING-RUBBER,12X20X78
10+ In-Stock
92092A92092-0555BUSHING-RUBBER
10+ In-Stock
9213992139-1352BUSHING
Usually ships in 7-10 business days
9215492154-7079BOLT,FLANGED,12X76.5
4 In-Stock
92154A92154-7081BOLT,FLANGED,12X100
10+ In-Stock
9220092200-0724WASHER,10.3X23X1.6
10+ In-Stock
9221092210-0395NUT,CASTLE,12MM
10+ In-Stock
92210A92210-1080NUT,LOCK,FLANGED,10MM
10+ In-Stock
92210B92210-1931NUT,LOCK,FLANGED,12MM
10+ In-Stock
