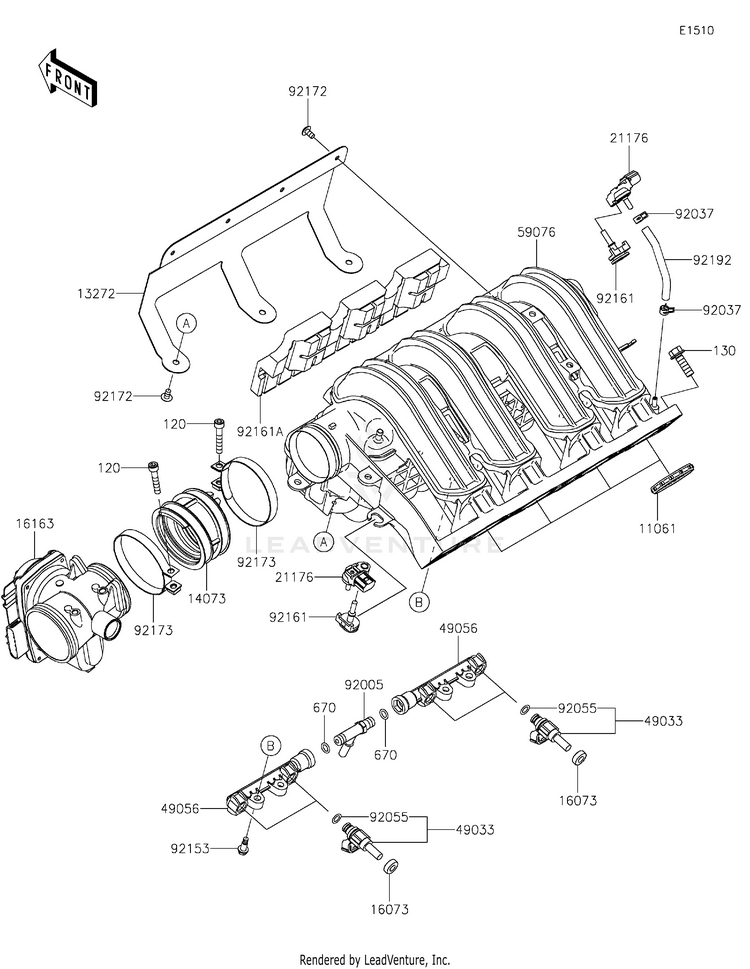

2026 Kawasaki Ridge 1000 HVAC Camo Throttle OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11061	11061-1470	GASKET,INTAKE MANIFOLD	8 In-Stock
120	120CA0635	BOLT-SOCKET,6X35	10+ In-Stock
130	130BA0825	BOLT-FLANGED,8X25	10+ In-Stock
13272	13272-4239	PLATE,INTAKE MANIFOLD	Usually ships in 7-10 business days
14073	14073-1914	DUCT,INTAKE MANIFOLD	Usually ships in 7-10 business days
16073	16073-0129	INSULATOR	10+ In-Stock
16163	16163-1306	THROTTLE-ASSY	Usually ships in 7-10 business days
21176	21176-0906	SENSOR,PRESSURE	Usually ships in 7-10 business days
49033	49033-0586	NOZZLE-INJECTION	8 In-Stock
49056	49056-0568	PIPE-INJECTION	Usually ships in 7-10 business days
59076	59076-0044	MANIFOLD-INTAKE	Usually ships in 7-10 business days
670	670E1508	O RING,8MM	8 In-Stock
92005	92005-0125	FITTING	Usually ships in 7-10 business days
92037	92037-2116	CLAMP,7.8MM	8 In-Stock
92055	92055-0937	RING-O,INJECTION NOZZLE	10+ In-Stock
92153	92153-0361	BOLT,FLANGED,5MM	1 In-Stock
92161	92161-0673	DAMPER	Usually ships in 7-10 business days
92161A	92161-2517	DAMPER	Usually ships in 7-10 business days
92172	92172-0262	SCREW,TAPPING,5X10	10+ In-Stock
92173	92173-2219	CLAMP,74MM	Usually ships in 7-10 business days
92192	92192-2652	TUBE,INTAKE MANIFOLD	Usually ships in 7-10 business days
