2026 Kawasaki Ridge 1000 HVAC Camo Water Pipe OEM Parts Diagram

Submodel KWF1000TTFAL RIDGE HVAC Camo (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Water Pipe

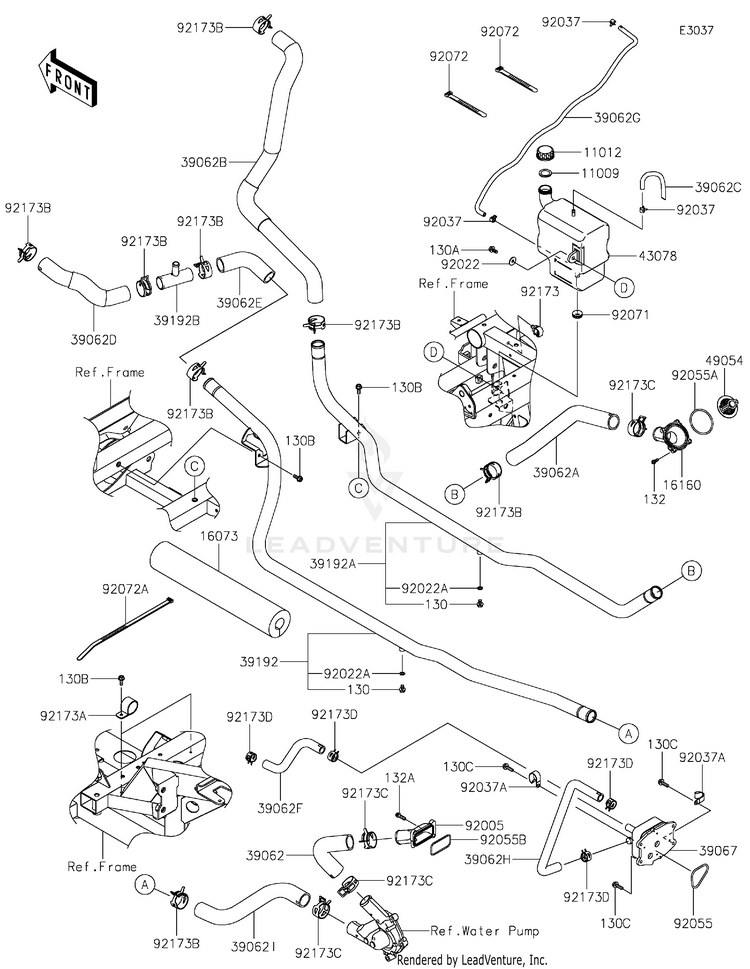

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1100911009-1145GASKET,RESERVOIR TANK CAP
3 In-Stock
1101211012-1084CAP
10+ In-Stock
130130BA0610BOLT-FLANGED,6X10
10+ In-Stock
130A130BA0614BOLT-FLANGED,6X14
10+ In-Stock
130B130BA0616BOLT-FLANGED,6X16
7 In-Stock
130C130CA0620BOLT-FLANGED,6X20
10+ In-Stock
1607316073-0974INSULATOR
Usually ships in 7-10 business days
1616016160-0835BODY,THERMOSTAT
Usually ships in 7-10 business days
3906239062-0953HOSE-COOLING,W/PUMP-FITTING
Usually ships in 7-10 business days
39062A39062-0954HOSE-COOLING,ENGINE-PIPE RH
Usually ships in 7-10 business days
39062B39062-0958HOSE-COOLING,PIPE RH-RADIATOR
Usually ships in 7-10 business days
39062C39062-0959HOSE-COOLING,OVER FLOW
Usually ships in 7-10 business days
39062D39062-0964HOSE-COOLING,RADIATOR-FITTING
Usually ships in 7-10 business days
39062E39062-0965HOSE-COOLING,FITTING-PIPE LH
Usually ships in 7-10 business days
39062F39062-0966HOSE-COOLING,O/C-PIPE
Usually ships in 7-10 business days
39062G39062-0969HOSE-COOLING,RAD-RESERVOIR
Usually ships in 7-10 business days
39062H39062-0972HOSE-COOLING,HEAD-OIL COOLER
Usually ships in 7-10 business days
39062I39062-1996HOSE-COOLING,PIPE(L/H WATER)
Usually ships in 7-10 business days
3906739067-0023COOLER-OIL
Usually ships in 7-10 business days
3919239192-0703PIPE-WATER,LH
Usually ships in 7-10 business days
39192A39192-0704PIPE-WATER,RH
Usually ships in 7-10 business days
39192B39192-0707PIPE-WATER
Usually ships in 7-10 business days
4307843078-0617RESERVOIR
Usually ships in 7-10 business days
4905449054-0014THERMOSTAT
2 In-Stock
9200592005-1443FITTING
Usually ships in 7-10 business days
9202292022-165WASHER,PLAIN,6.5X20X1
6 In-Stock
92022A92022-304WASHER,6.2X11X1
10+ In-Stock
9203792037-1461CLAMP,TUBE
8 In-Stock
92037A92037-1993CLAMP
10+ In-Stock
9205592055-0752RING-O,46.4X3.1
Usually ships in 7-10 business days
92055A92055-0831RING-O,53.5X2.6
7 In-Stock
92055B92055-0923RING-O,FITTING
Usually ships in 7-10 business days
9207192071-1115GROMMET
Usually ships in 7-10 business days
9207292072-030BAND,L=123
7 In-Stock
92072A92072-3509BAND,L=292.1
9 In-Stock
9217392173-0736CLAMP,12MM DIA.
6 In-Stock
92173A92173-1204CLAMP
Usually ships in 7-10 business days
92173B92173-1205CLAMP,28.6MM
5 In-Stock
92173C92173-1981CLAMP,33.4MM
Usually ships in 7-10 business days
92173D92173-2285CLAMP
Usually ships in 7-10 business days
