2026 Kawasaki Ridge 1000 ST HVAC Headlight(S) OEM Parts Diagram

Submodel KWF1000DTFNL RIDGE HVAC (2026)

Shop Aftermarket Parts

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Headlight(s)

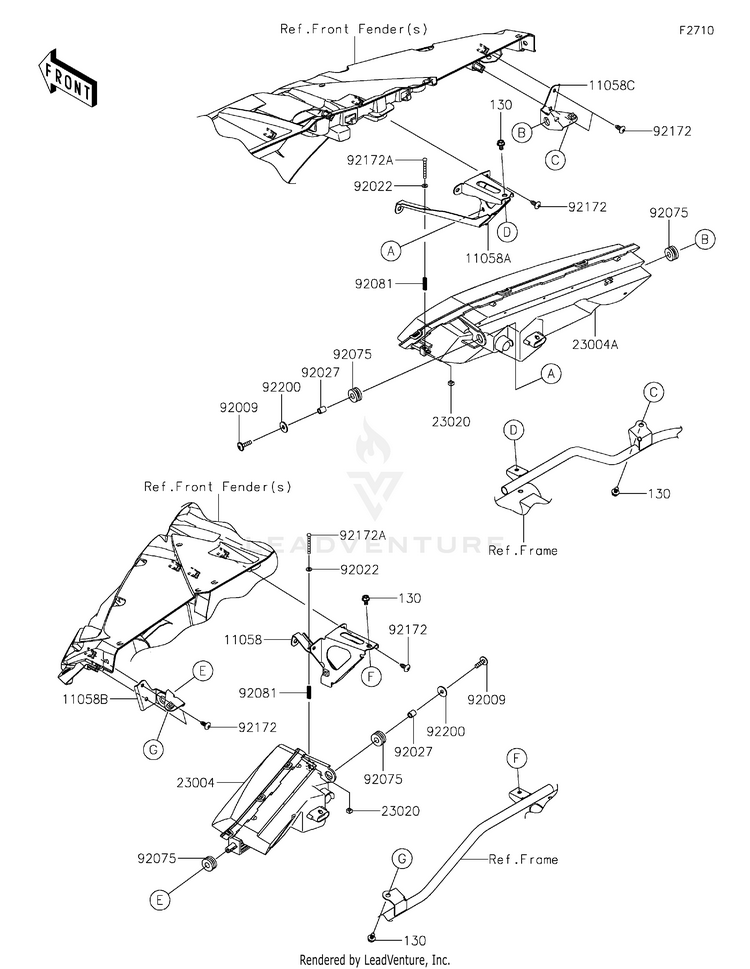

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105811058-0218BRACKET,HEAD LAMP,LH,IN
Usually ships in 7-10 business days
11058A11058-0219BRACKET,HEAD LAMP,RH,IN
Usually ships in 7-10 business days
11058B11058-0220BRACKET,HEAD LAMP,LH,OUT
Usually ships in 7-10 business days
11058C11058-0221BRACKET,HEAD LAMP,RH,OUT
Usually ships in 7-10 business days
130130BA0610BOLT-FLANGED,6X10
10+ In-Stock
2300423004-0435LAMP-HEAD,LED,LH
Usually ships in 7-10 business days
23004A23004-0436LAMP-HEAD,LED,RH
Usually ships in 7-10 business days
2302023020-018NUT,4MM,FOCUS ADJUST
2 In-Stock
9200992009-1256SCREW,6X22,BLACK
10+ In-Stock
9202292022-563WASHER
10+ In-Stock
9202792027-162COLLAR,6.8X10X12
10+ In-Stock
9207592075-1690DAMPER,10X24X12
10+ In-Stock
9208192081-1896SPRING,FOCUS ADJUST
4 In-Stock
9217292172-0284SCREW,6X16
7 In-Stock
92172A92172-1092SCREW,4X40
9 In-Stock
9220092200-0283WASHER,6.5X20X1.6
10+ In-Stock
