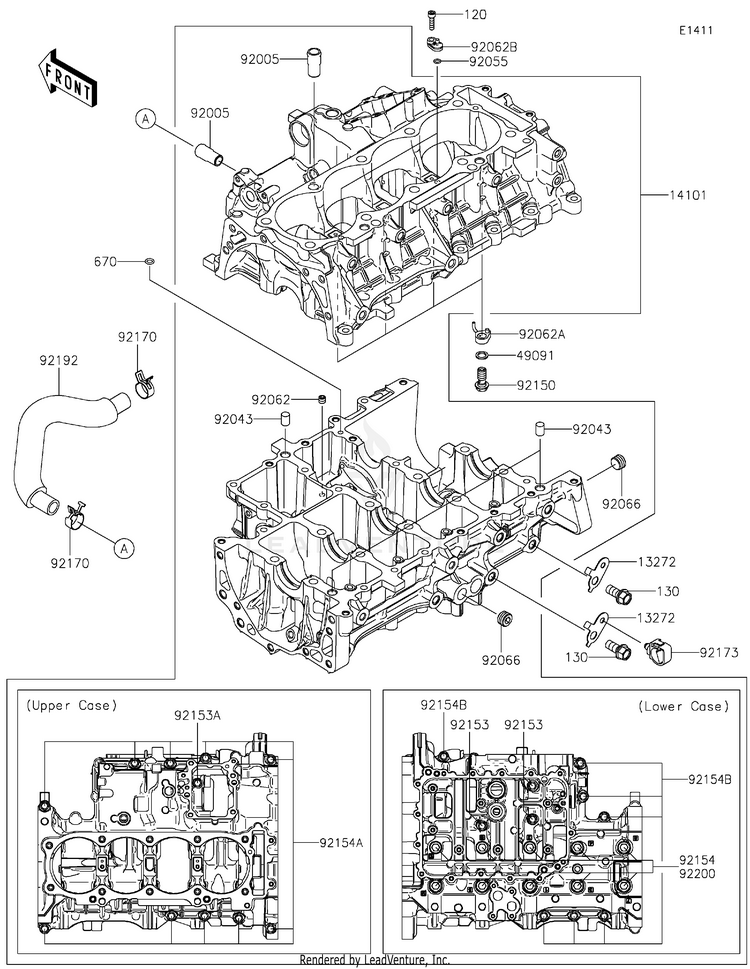

2026 Kawasaki Teryx5 H2 Deluxe eS Crankcase OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
120	120CA0520	BOLT-SOCKET,5X20	2 In-Stock
130	130BA1022	BOLT-FLANGED,10X22	Usually ships in 7-10 business days
13272	13272-4471	PLATE	Usually ships in 7-10 business days
14101	14101-0066	SET-CRANKCASE	Usually ships in 7-10 business days
49091	49091-0001	WASHER-SEAL,10.1X14.5X1.5	10+ In-Stock
670	670D1507	O RING,7MM	10+ In-Stock
92005	92005-1238	FITTING,BREATHER	1 In-Stock
92043	92043-1506	PIN,10X14	10+ In-Stock
92055	92055-1343	RING-O,5.5X1.5	6 In-Stock
92062	92062-0580	NOZZLE	Usually ships in 7-10 business days
92062A	92062-0590	NOZZLE	Usually ships in 7-10 business days
92062B	92062-0592	NOZZLE	Usually ships in 7-10 business days
92066	92066-0831	PLUG	4 In-Stock
92150	92150-1641	BOLT,BANJO,10X23	Usually ships in 7-10 business days
92153	92153-1043	BOLT,FLANGED,7X85	Usually ships in 7-10 business days
92153A	92153-1045	BOLT,FLANGED,7X60	Usually ships in 7-10 business days
92154	92154-1446	BOLT,FLANGED,10X100	Usually ships in 7-10 business days
92154A	92154-4472	BOLT,7X35	Usually ships in 7-10 business days
92154B	92154-7806	BOLT,FLANGED,7X35	Usually ships in 7-10 business days
92170	92170-1060	CLAMP	4 In-Stock
92173	92173-0861	CLAMP	4 In-Stock
92192	92192-2973	TUBE,BLOWBY GAS	Usually ships in 7-10 business days
92200	92200-0990	WASHER,10.2X18.4X1.8	Usually ships in 7-10 business days
