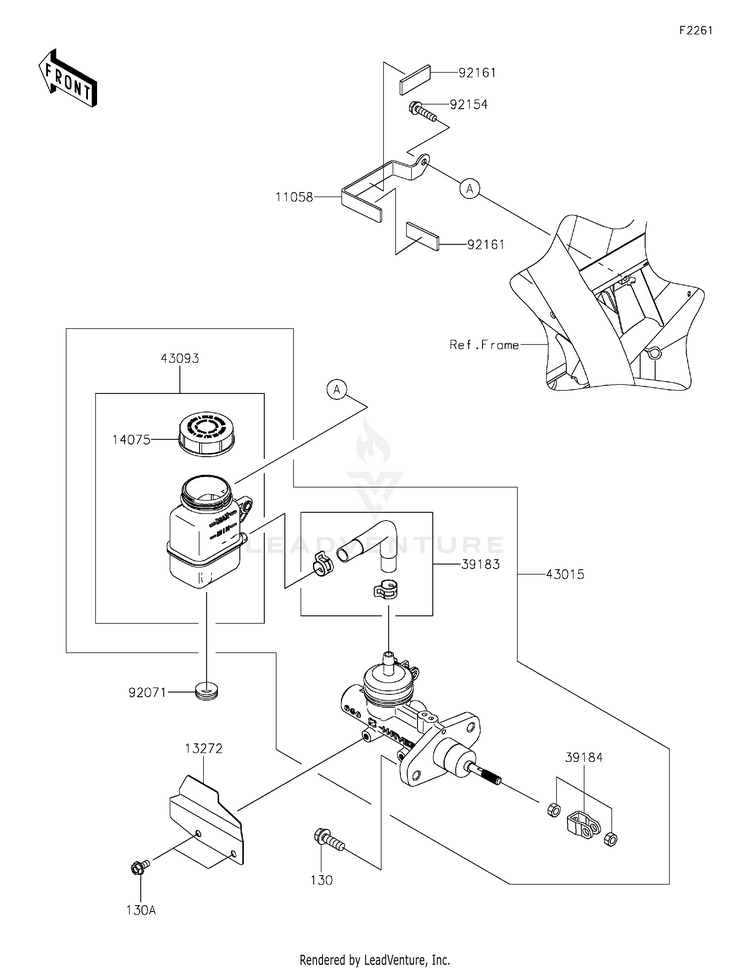

2026 Kawasaki Teryx5 H2 Deluxe eS Master Cylinder OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
11058	11058-7196	BRACKET,RESERVOIR TANK	Usually ships in 7-10 business days
130	130BA0825	BOLT-FLANGED,8X25	10+ In-Stock
130A	130CA0612	BOLT-FLANGED,6X12	10+ In-Stock
13272	13272-4451	PLATE,MASTER CYLINDER	Usually ships in 7-10 business days
14075	14075-0038	CAP-ASSY	1 In-Stock
39183	39183-0011	BAND-ASSY,RESERVOIR HOSE	Usually ships in 7-10 business days
39184	39184-0031	BRACKET-ASSY	Usually ships in 7-10 business days
43015	43015-0811	CYLINDER-ASSY-MASTER	Usually ships in 7-10 business days
43093	43093-0018	RESERVOIR-ASSY-TANK	Usually ships in 7-10 business days
92071	92071-1115	GROMMET	Usually ships in 7-10 business days
92154	92154-0707	BOLT,FLANGED,6X25	2 In-Stock
92161	92161-2817	DAMPER,16X40X3	Usually ships in 7-10 business days
