Front Bevel Gear

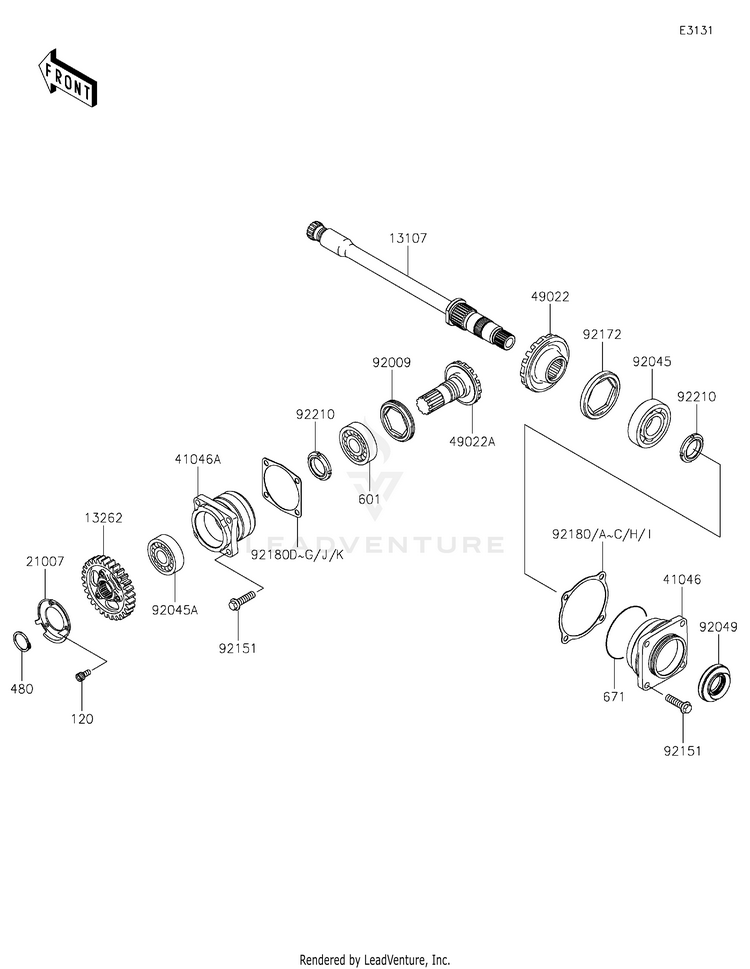

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
120120CA0612BOLT-SOCKET,6X12
10+ In-Stock
1310713107-0727SHAFT,F/R OUTPUT
Usually ships in 7-10 business days
1326213262-0960GEAR,OUTPUT,29T
Usually ships in 7-10 business days
2100721007-1416ROTOR,REVERSE SENSOR
Usually ships in 7-10 business days
4104641046-0025HOUSING-BEARING
Usually ships in 7-10 business days
41046A41046-1101HOUSING-BEARING
Usually ships in 7-10 business days
480480J2800CIRCLIP-TYPE-C,28MM
9 In-Stock
4902249022-0011GEAR-BEVEL,DRIVEN,20T
Usually ships in 7-10 business days
49022A49022-1192GEAR-BEVEL,DRIVE,12T
Usually ships in 7-10 business days
60192045-0110

(replaces part #
601B6206)

BEARING-BALL,6206-9C3
Usually ships in 7-10 business days
671671D2585O RING
10+ In-Stock
9200992009-1914SCREW,64MM
Usually ships in 7-10 business days
9204592045-1190BEARING-BALL,6306SH2
3 In-Stock
92045A92045-1207BEARING-BALL,62/28
2 In-Stock
9204992049-0160SEAL-OIL
8 In-Stock
9215192151-1688BOLT-FLANGED-SMALL,8X30
Usually ships in 7-10 business days
9217292172-0371SCREW,SET,75X10
Usually ships in 7-10 business days
9218092180-1307SHIM,DRIVEN,T=0.15
3 In-Stock
92180A92180-1308SHIM,DRIVEN,T=0.20
1 In-Stock
92180B92180-1309SHIM,DRIVEN,T=0.50
1 In-Stock
92180C92180-1310SHIM,DRIVEN,T=0.80
1 In-Stock
92180D92180-1311SHIM,DRIVE,T=0.15
2 In-Stock
92180E92180-1312SHIM,DRIVE,T=0.20
3 In-Stock
92180F92180-1313SHIM,DRIVE,T=0.50
2 In-Stock
92180G92180-1314SHIM,DRIVE,T=0.80
1 In-Stock
92180H92180-1349SHIM,DRIVEN,T=1.00
2 In-Stock
92180I92180-1350SHIM,DRIVEN,T=1.20
2 In-Stock
92180J92180-1351SHIM,DRIVE,T=1.00
2 In-Stock
92180K92180-1352SHIM,DRIVE,T=1.20
3 In-Stock
9221092210-1294NUT,30MM
Usually ships in 7-10 business days
