2027 Kawasaki MULE Pro-DXT EPS Diesel 1000 Engine Mount OEM Parts Diagram

Submodel KDT1000BVFNN MULE PRO-DXT (2027)

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

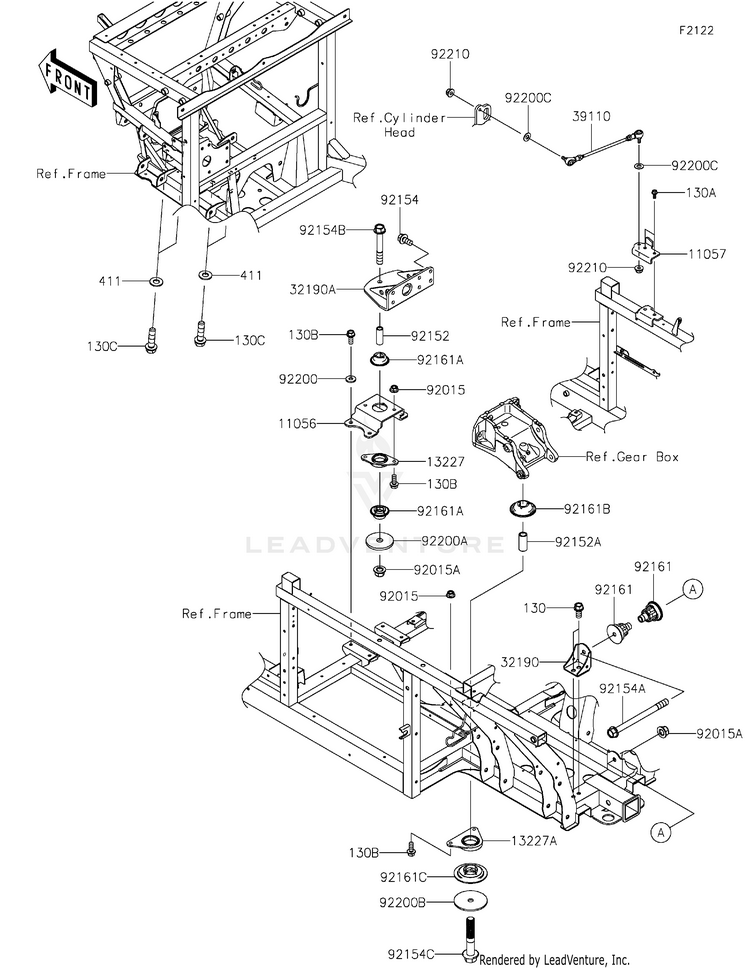

Engine Mount

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1105611056-7475BRACKET
Usually ships in 7-10 business days
1105711057-2696BRACKET,TORQUE ROD
Usually ships in 7-10 business days
130130BA1020BOLT-FLANGED,10X20
5 In-Stock
130A130CA0818BOLT-FLANGED,8X18
6 In-Stock
130B130CA0820BOLT-FLANGED,8X20
10+ In-Stock
130C130CA1235BOLT-FLANGED,12X35
10+ In-Stock
1322713227-0031HOUSING
Usually ships in 7-10 business days
13227A13227-0032HOUSING
Usually ships in 7-10 business days
3219032190-0662BRACKET-ENGINE
Usually ships in 7-10 business days
32190A32190-0701BRACKET-ENGINE,FR
Usually ships in 7-10 business days
3911039110-0050ROD-ASSY-TIE
Usually ships in 7-10 business days
411411AA1200WASHER-PLAIN,12MM
10+ In-Stock
9201592015-1397NUT,LOCK,FLANGED,8MM
5 In-Stock
92015A92015-1433NUT,LOCK,FLANGED,12MM
10+ In-Stock
9215292152-1802COLLAR,13X19.1X54
Usually ships in 7-10 business days
92152A92152-2127COLLAR,17X23.8X54.5
Usually ships in 7-10 business days
9215492154-1321BOLT,FLANGED,10X20
Usually ships in 7-10 business days
92154A92154-1322BOLT,FLANGED,12X150
Usually ships in 7-10 business days
92154B92154-1419BOLT,FLANGED,12X80
Usually ships in 7-10 business days
92154C92154-1763BOLT,FLANGED,16X86
Usually ships in 7-10 business days
9216192161-1616DAMPER
Usually ships in 7-10 business days
92161A92161-1617DAMPER
Usually ships in 7-10 business days
92161B92161-1618DAMPER
Usually ships in 7-10 business days
92161C92161-1619DAMPER
Usually ships in 7-10 business days
9220092200-0205WASHER,8.2X20.0X2.5
10+ In-Stock
92200A92200-0913WASHER,12.5X55X4.76
Usually ships in 7-10 business days
92200B92200-1747WASHER,16.5X100X4.76
Usually ships in 7-10 business days
92200C92200-2284WASHER,8.5X18X1
Usually ships in 7-10 business days
9221092210-0493NUT,FLANGED,LOCK,8MM
10+ In-Stock
