2027 Kawasaki MULE Pro-DXT EPS Diesel 1000 Water Pump OEM Parts Diagram

Submodel KDT1000BVFNN MULE PRO-DXT (2027)

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Water Pump

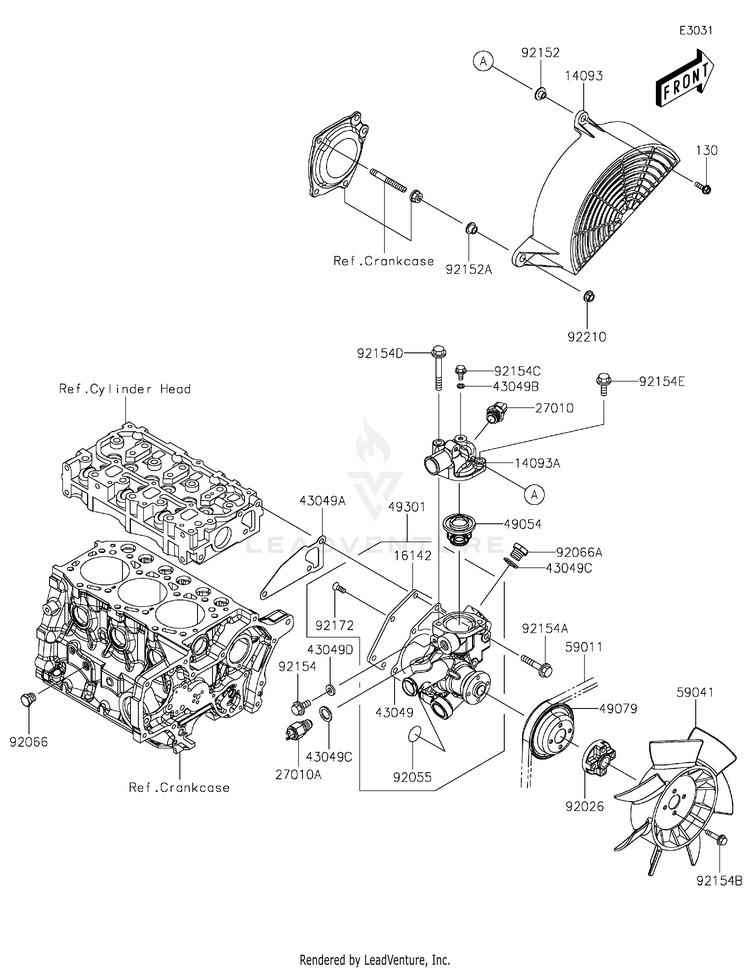

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130BA0620BOLT-FLANGED,6X20
10+ In-Stock
1409314093-0297COVER,FAN
Usually ships in 7-10 business days
14093A14093-0446COVER,THERMOSTAT
Usually ships in 7-10 business days
1614216142-0736COVER-PUMP
Usually ships in 7-10 business days
2701027010-0839SWITCH,THERMOSTAT
Usually ships in 7-10 business days
27010A27010-0840SWITCH,THERMO
Usually ships in 7-10 business days
4304943049-0040PACKING,WATER PUMP
Usually ships in 7-10 business days
43049A43049-0041PACKING,WATER PUMP
Usually ships in 7-10 business days
43049B43049-0042PACKING,6X1
Usually ships in 7-10 business days
43049C43049-0043PACKING
Usually ships in 7-10 business days
43049D43049-0047PACKING,8X1
Usually ships in 7-10 business days
4905449054-0008THERMOSTAT
Usually ships in 7-10 business days
4907949079-0027PULLEY-BELT
Usually ships in 7-10 business days
4930149301-0003PUMP-ASSY-WATER
Usually ships in 7-10 business days
5901159011-0045BELT,A35
Usually ships in 7-10 business days
5904159041-0015FAN,COOLING
Usually ships in 7-10 business days
9202692026-0820SPACER
Usually ships in 7-10 business days
9205592055-0858RING-O
Usually ships in 7-10 business days
9206692066-0853PLUG,DRAIN
Usually ships in 7-10 business days
92066A92066-0854PLUG
Usually ships in 7-10 business days
9215292152-0181COLLAR
5 In-Stock
92152A92152-0613COLLAR
4 In-Stock
9215492154-1999BOLT,FLANGED,8X12
Usually ships in 7-10 business days
92154A92154-2000BOLT,FLANGED,8X45
Usually ships in 7-10 business days
92154B92154-2067BOLT,FLANGED,6X30
Usually ships in 7-10 business days
92154C92154-2068BOLT,FLANGED,6X10
Usually ships in 7-10 business days
92154D92154-2070BOLT,FLANGED,8X65
Usually ships in 7-10 business days
92154E92154-2110BOLT,FLANGED,8X28
Usually ships in 7-10 business days
9217292172-0987SCREW,6X12
Usually ships in 7-10 business days
9221092210-0555NUT,FLANGED,8MM
9 In-Stock
