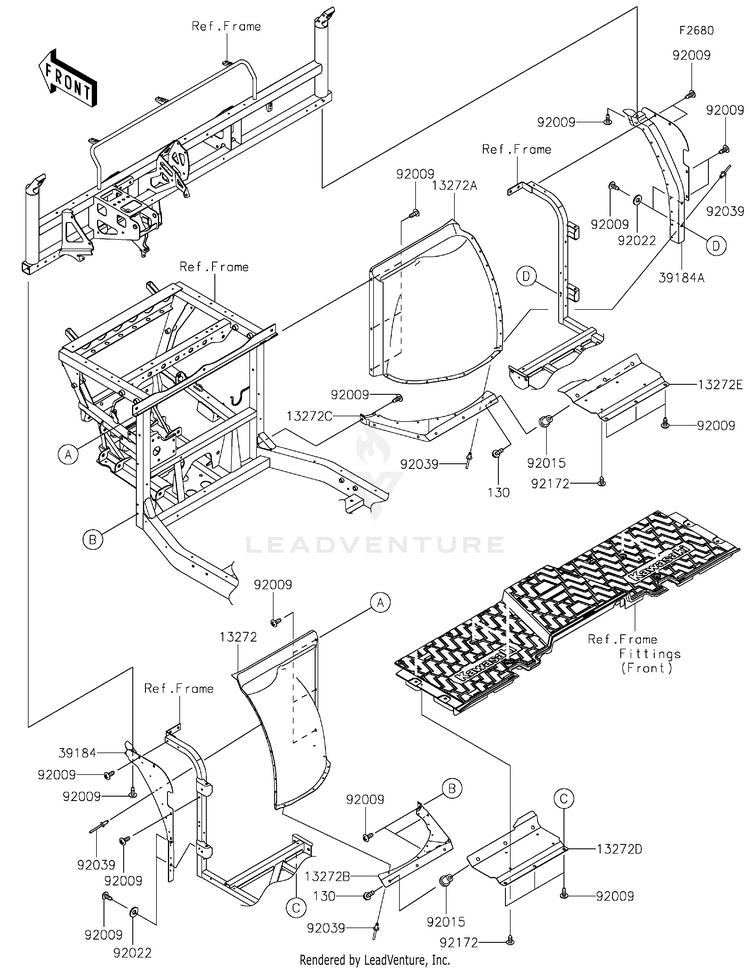

2027 Kawasaki MULE Pro-FX 1000 HD Edition Guard(S) OEM Parts Diagram

Stuck? Click here for OEM ordering tips.

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
130	130BA0620	BOLT-FLANGED,6X20	10+ In-Stock
13272	13272-2323	PLATE	Usually ships in 7-10 business days
13272A	13272-2324	PLATE	Usually ships in 7-10 business days
13272B	13272-7725	PLATE,LOWER COVER,LH	Usually ships in 7-10 business days
13272C	13272-7726	PLATE,LOWER COVER,RH	Usually ships in 7-10 business days
13272D	13272-7727	PLATE,UNDER GUARD,LH	Usually ships in 7-10 business days
13272E	13272-7728	PLATE,UNDER GUARD,RH	Usually ships in 7-10 business days
39184	39184-0718	BRACKET-ASSY,SIDE,LH	Usually ships in 7-10 business days
39184A	39184-0719	BRACKET-ASSY,SIDE,RH	Usually ships in 7-10 business days
92009	92009-1166	SCREW,TAPPING,6X16	10+ In-Stock
92015	92015-1692	NUT,RUBBER,6MM	10+ In-Stock
92022	92022-1533	WASHER,8.2X19X2	10+ In-Stock
92039	92039-0784	RIVET,4.8X7.6	Usually ships in 7-10 business days
92172	92172-0284	SCREW,6X16	7 In-Stock
