2027 Kawasaki MULE SX 400 4x4 Chassis Electrical Equipment OEM Parts Diagram

Submodel KAF400PVFNN Mule SX 4X4 FI (2027)

TO VIEW KAWASAKI OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

Chassis Electrical Equipment

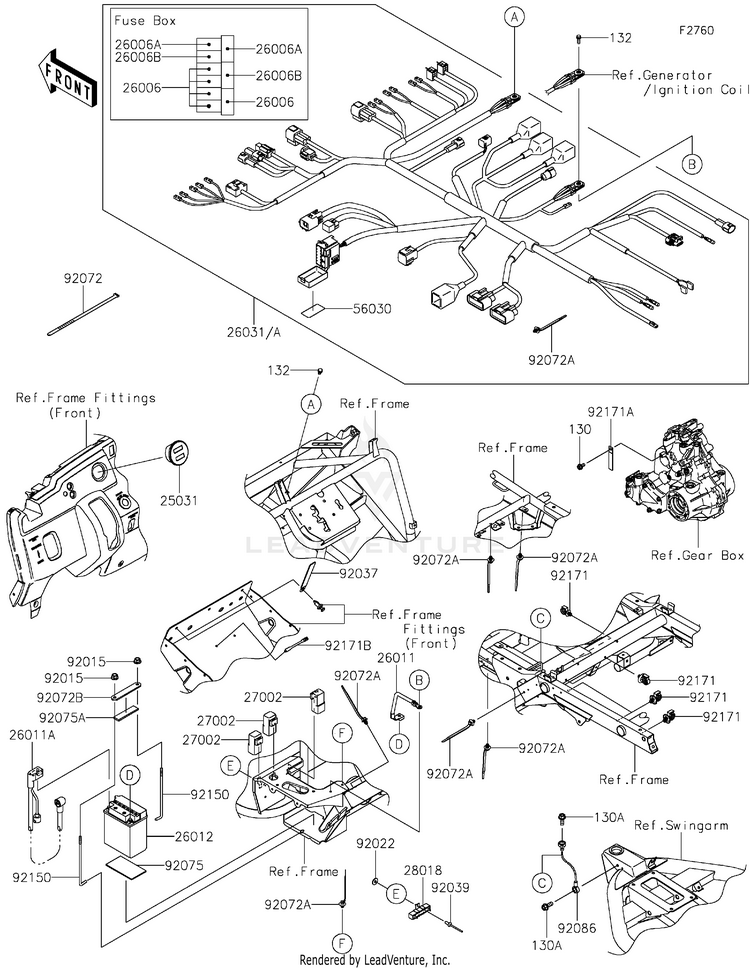

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130130AA0612BOLT-FLANGED,6X12
Usually ships in 7-10 business days
130A130BA0820BOLT-FLANGED,8X20
10+ In-Stock
132132BA0616BOLT-FLANGED-SMALL,6X16
10+ In-Stock
2503125031-1397METER-ASSY
Usually ships in 7-10 business days
2600626006-1078

(replaces part #
26006-0009)

FUSE,MINI BLADE,10A,RED
6 In-Stock
26006A26006-1080FUSE,MINI BLADE,30A,GREEN
Usually ships in 7-10 business days
26006B26006-3704FUSE,MINI BLADE,20A,YELLOW
Usually ships in 7-10 business days
2601126011-0923WIRE-LEAD,BATTERY(-)
Usually ships in 7-10 business days
26011A26011-0924WIRE-LEAD,BATTERY(+)
Usually ships in 7-10 business days
2601226012-1557BATTERY,YB14A-A2,12V 14AH
3 In-Stock
2603126031-2413HARNESS,MAIN
Usually ships in 7-10 business days
26031A26031-7257HARNESS,MAIN
Usually ships in 7-10 business days
2700227002-1088RELAY-ASSY
10+ In-Stock
2801828018-0005RESISTOR
Usually ships in 7-10 business days
5603056030-1361LABEL,FUSE BOX
Usually ships in 7-10 business days
9201592015-1406NUT,FLANGED,8MM
10+ In-Stock
9202292022-1949WASHER,4.3X12.5X1
7 In-Stock
9203792037-1636CLAMP,HARNESS,L=100
Usually ships in 7-10 business days
9203992039-1163RIVET,BLIND,4.0X9.2
Usually ships in 7-10 business days
9207292072-1239BAND,L=188
9 In-Stock
92072A92072-1414BAND,OS170-FT7(BLACK)
10+ In-Stock
92072B92072-7507BAND,BATTERY
Usually ships in 7-10 business days
9207592075-1076DAMPER
Usually ships in 7-10 business days
92075A92075-1214DAMPER
Usually ships in 7-10 business days
9208692086-1054WIRE
Usually ships in 7-10 business days
9215092150-1293BOLT,BATTERY
5 In-Stock
9217192171-0453CLAMP
8 In-Stock
92171A92171-0652CLAMP,L=60
10+ In-Stock
92171B92171-1365CLAMP
Usually ships in 7-10 business days
