1985 Yamaha XT350 Shift Shaft OEM Parts Diagram

Submodel XT350NC (CA ED.) - 1985

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

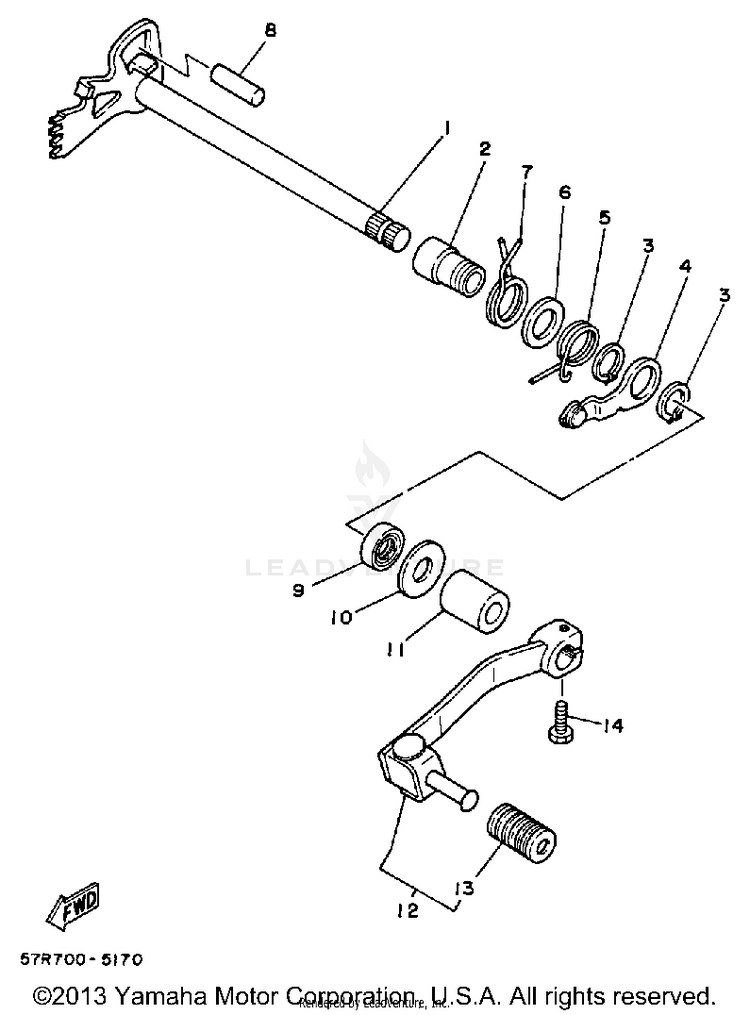

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130X-18101-01-00SHIFT SHAFT ASSEMBLY$37.99$31.15Not Shipping
290387-12787-00COLLAR$12.49$10.24Usually ships in 7-10 business days
399009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
43Y1-18140-00-00STOPPER LEVER ASSY$17.99$14.75Usually ships in 7-10 business days
590508-26434-00SPRING, TORSION$2.50$2.25Usually ships in 7-10 business days
690201-177G4-00

(replaces part #
90201-17255-00)

WASHER, PLATE$10.49$8.183 In-Stock
790508-32374-00SPRING, TORSION$8.49$6.6210+ In-Stock
893608-30152-00PIN, DOWEL$3.50$3.15Not Shipping
993102-12321-00OIL SEAL (SD 12-22-5 HS)$13.49$10.5210+ In-Stock
1090201-12588-00WASHER, PLATE$8.49$6.624 In-Stock
1190560-12191-00SPACER$8.49$6.624 In-Stock
1230X-18110-01-00SHIFT PEDAL ASSEMBLY$41.99$34.43Not Shipping
131W6-18113-00-00COVER, SHIFT PEDAL$5.99$4.676 In-Stock
1497017-06020-00

(replaces part #
97016-06020-00)

BOLT$4.06$3.4910+ In-Stock
