1987 Yamaha XT600 Headlight OEM Parts Diagram

Submodel XT600TC (CA ED.) - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HEADLIGHT

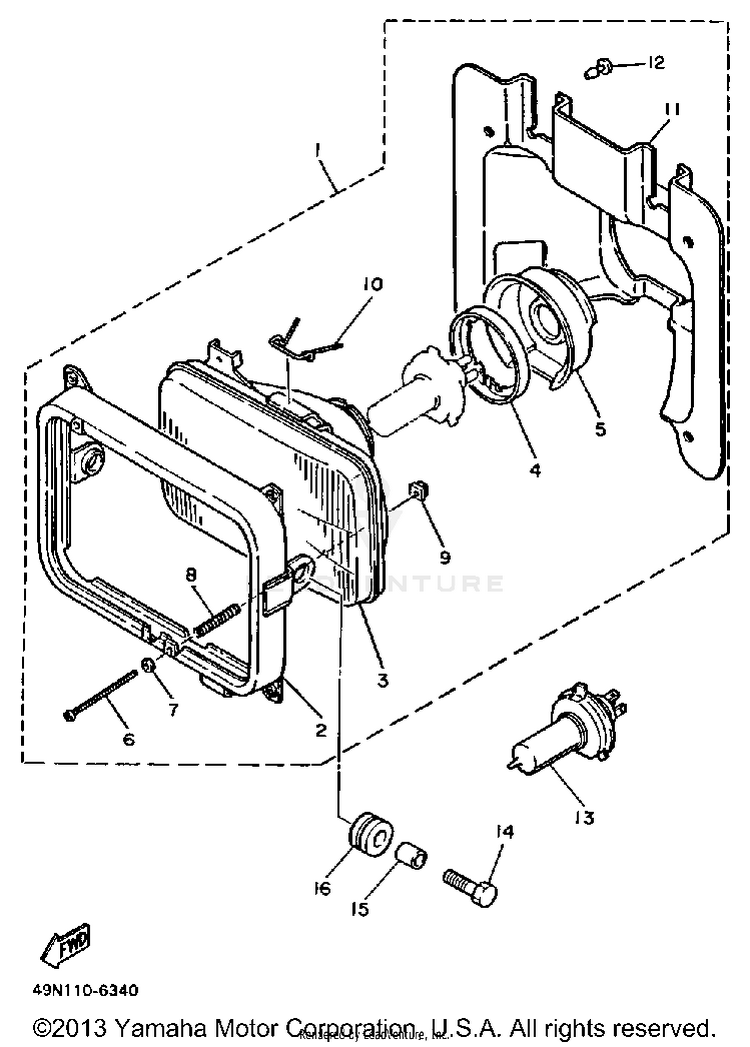

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
149M-84303-A0-00HEADLIGHT UNIT ASY$0.00$0.00Not Shipping
247J-84115-00-00RIM, HEADLIGHT$160.99$125.57Usually ships in 7-10 business days
35G2-84321-A0-00LENS, HEADLIGHT$150.99$117.77Usually ships in 7-10 business days
42F9-84375-00-00SETTING PLATE, BULB$14.99$12.29Usually ships in 7-10 business days
52F9-84397-01-00COVER, SOCKET$33.99$27.87Usually ships in 7-10 business days
643F-84131-00-00SCREW, RIM ADJUSTER$10.99$9.01Usually ships in 7-10 business days
7233-84127-60-00WASHER, SPECIAL$4.00$3.442 In-Stock
8341-84332-60-00SPRING, SCREW$10.99$8.576 In-Stock
9198-84334-60-00NUT, ADJUSTING$8.49$6.625 In-Stock
1055X-84124-00-00

(replaces part #
5G2-84324-A0-00)

SPRING, SET$12.99$10.65Usually ships in 7-10 business days
1110V-84196-00-00COVER, SOCKET$41.99$34.43Usually ships in 7-10 business days
1210V-84198-00-00CLIP, COVER FITTING$5.99$5.39Usually ships in 7-10 business days
138V0-84314-10-00

(replaces part #
5V2-84314-00-XX)

BULB, HEADLIGHT (12V-60/55W) | LM$75.99$60.93Usually ships in 7-10 business days
1497024-06020-00

(replaces part #
97023-06020-00)

BOLT$9.49$7.4010+ In-Stock
1590387-06158-00

(replaces part #
90387-06388-00)

COLLAR$9.49$7.4010+ In-Stock
1690480-14023-00GROMMET$8.49$6.6210+ In-Stock
