1987 Yamaha XT600 Meter OEM Parts Diagram

Submodel XT600TC (CA ED.) - 1987

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

METER

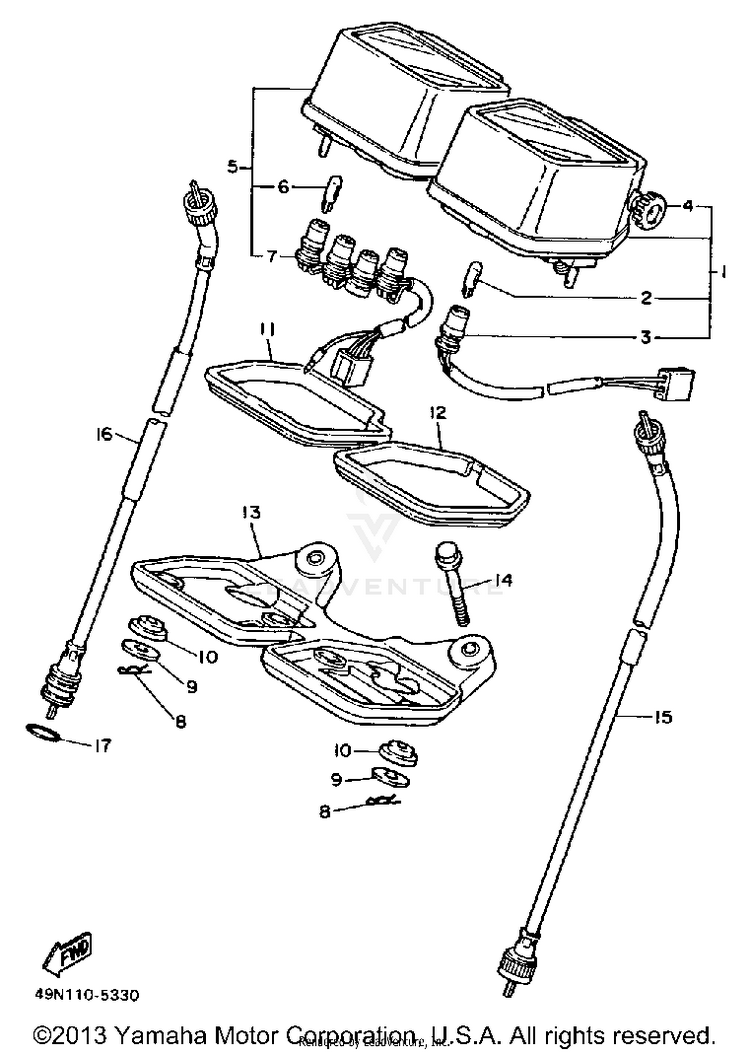

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
143F-83570-G1-00SPEEDOMETER ASSEMBLY$436.99$340.85Not Shipping
24G1-84744-00-XX

(replaces part #
4G1-84744-00-00)

BULB (12V-3.4W T10)$4.80$4.32Usually ships in 7-10 business days
35E2-83509-20-00

(replaces part #
2JX-83536-A0-00)

SOCKET CORD ASSY$31.99$26.23Usually ships in 7-10 business days
45Y1-83578-00-00KNOB, TRIP METER$30.99$25.41Usually ships in 7-10 business days
52NF-83540-00-00TACHOMETER ASSEMBLY (49N-83540-$404.99$315.89Not Shipping
64G1-84744-00-XX

(replaces part #
4G1-84744-00-00)

BULB (12V-3.4W T10)$4.80$4.32Usually ships in 7-10 business days
75Y1-83520-00-00SOCKET CORD ASSEMBLY (30X-835$74.99$58.49Usually ships in 7-10 business days
890468-10050-00CLIP$3.05$2.6210+ In-Stock
990201-05033-00WASHER, SPECIAL$11.49$8.964 In-Stock
101M1-83526-01-00

(replaces part #
1M1-83526-00-00)

DAMPER 2$5.99$4.678 In-Stock
115Y1-83541-00-00DAMPER$24.99$20.49Usually ships in 7-10 business days
125Y1-83513-00-00DAMPER$36.99$28.852 In-Stock
135Y1-83519-00-00BRACKET, METER$62.99$49.13Usually ships in 7-10 business days
1495817-06040-00

(replaces part #
95816-06040-00)

BOLT, FLANGE$6.49$5.0610+ In-Stock
1516M-83550-01-00

(replaces part #
34X-83550-01-00)

SPDMTR, CABLE$45.99$37.71Usually ships in 7-10 business days
164PT-83560-01-00

(replaces part #
34L-83560-01-00)

TACHOMETER CABLE ASS$42.99$35.252 In-Stock
1793210-14579-00

(replaces part #
93210-14104-00)

O-RING$7.99$6.238 In-Stock
